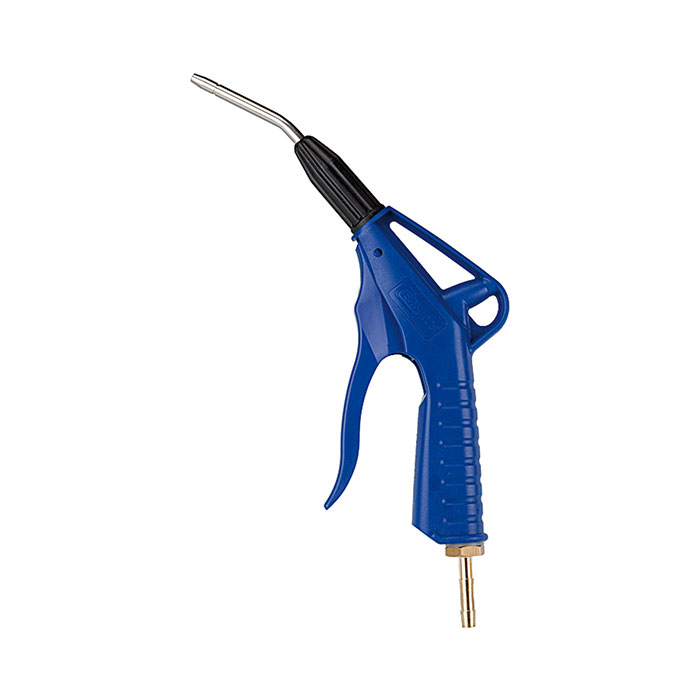

RIEGLER Air gun, pressure control, POM, pressure regulator, Sleeve I.D. 9
Type number: 40 B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Blow gun with pressure regulation, POM, with pressure regulator, 90 mm pipe, temperature range -20 °C to 60 °C, PN max. 8 bar, nozzle LW 9
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Connection thread | Rc 1/4 |
| Max. operating pressure | 8 bar |
| Material | POM |
| Air pipe | Nickel-plated brass |
| Connection type | Grommet LW 9 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114412] RIEGLER Air gun, Pressure control, POM, pressure regulator, I.D. 7.2-7.8](/web/image/product.template/190982/image_128/%5B114412%5D%20RIEGLER%20Air%20gun%2C%20Pressure%20control%2C%20POM%2C%20pressure%20regulator%2C%20I.D.%207.2-7.8?unique=7af54c4)
|
Type number: 40 K |
35.05 € | |
![[118582] RIEGLER Air gun, pressure control, POM, pressure regulator, Rc 1/4 IT](/web/image/product.template/202399/image_128/%5B118582%5D%20RIEGLER%20Air%20gun%2C%20pressure%20control%2C%20POM%2C%20pressure%20regulator%2C%20Rc%201-4%20IT?unique=2697a29)
|
Type number: 40 V |
34.24 € | |
![[114411] RIEGLER Air gun, pressure control, POM, pressure regulator, Sleeve I.D.13](/web/image/product.template/190980/image_128/%5B114411%5D%20RIEGLER%20Air%20gun%2C%20pressure%20control%2C%20POM%2C%20pressure%20regulator%2C%20Sleeve%20I.D.13?unique=f3ffaf6)
|
Type number: 40 C |
35.05 € | |
![[114409] RIEGLER Air gun, pressure control, POM, pressure regulator, Sleeve I.D. 6](/web/image/product.template/190976/image_128/%5B114409%5D%20RIEGLER%20Air%20gun%2C%20pressure%20control%2C%20POM%2C%20pressure%20regulator%2C%20Sleeve%20I.D.%206?unique=f7b97ef)
|
Type number: 40 A |
35.05 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=c9f958d)
|
Type number: BPH-1 |
10.50 € | |
![[114413] RIEGLER Rubber nozzle set (Ø 14, 25, 35 mm) for sensitive surfaces](/web/image/product.template/190983/image_128/%5B114413%5D%20RIEGLER%20Rubber%20nozzle%20set%20%28%C3%98%2014%2C%2025%2C%2035%20mm%29%20for%20sensitive%20surfaces?unique=57c0e45)
|
Type number: 378.01 |
20.00 € | |
![[114414] RIEGLER Safety shield (Ø 100 mm) to attach to the pipe](/web/image/product.template/190985/image_128/%5B114414%5D%20RIEGLER%20Safety%20shield%20%28%C3%98%20100%20mm%29%20to%20attach%20to%20the%20pipe?unique=3538c25)
|
Type number: 378.02 |
4.91 € | |
![[114415] RIEGLER Silencer nozzle to plug onto the pipe, reduces the noise](/web/image/product.template/190987/image_128/%5B114415%5D%20RIEGLER%20Silencer%20nozzle%20to%20plug%20onto%20the%20pipe%2C%20reduces%20the%20noise?unique=b64909e)
|
Type number: 378.03 |
7.41 € | |
![[114416] RIEGLER Venturi nozzle to blow off light cuttings, to plug onto the pipe](/web/image/product.template/190989/image_128/%5B114416%5D%20RIEGLER%20Venturi%20nozzle%20to%20blow%20off%20light%20cuttings%2C%20to%20plug%20onto%20the%20pipe?unique=1cd44e4)
|
Type number: 378.04 |
7.09 € | |
![[114417] RIEGLER Bypass nozzle for reduction of output pressure](/web/image/product.template/190991/image_128/%5B114417%5D%20RIEGLER%20Bypass%20nozzle%20for%20reduction%20of%20output%20pressure?unique=13c37bf)
|
Type number: 378.05 |
5.06 € | |
![[114418] RIEGLER Protective shield nozzle to plug onto the pipe](/web/image/product.template/190992/image_128/%5B114418%5D%20RIEGLER%20Protective%20shield%20nozzle%20to%20plug%20onto%20the%20pipe?unique=fb1fd53)
|
Type number: 378.06 |
7.88 € | |
![[114419] RIEGLER Silencer nozzle for reducing noise, direct mounting on the thread](/web/image/product.template/190994/image_128/%5B114419%5D%20RIEGLER%20Silencer%20nozzle%20for%20reducing%20noise%2C%20direct%20mounting%20on%20the%20thread?unique=0822b4d)
|
Type number: 378.07 |
1.95 € | |
![[135938] RIEGLER Rubber nozzle Ø 14 mm to plug onto the pipe](/web/image/product.template/206291/image_128/%5B135938%5D%20RIEGLER%20Rubber%20nozzle%20%C3%98%2014%20mm%20to%20plug%20onto%20the%20pipe?unique=3b8dc8d)
|
Type number: 378.01-14 |
6.31 € | |
![[135939] RIEGLER Rubber nozzle Ø 25 mm to plug onto the pipe](/web/image/product.template/206292/image_128/%5B135939%5D%20RIEGLER%20Rubber%20nozzle%20%C3%98%2025%20mm%20to%20plug%20onto%20the%20pipe?unique=ff56025)
|
Type number: 378.01-25 |
7.31 € | |
![[135940] RIEGLER Rubber nozzle Ø 35 mm to plug onto the pipe](/web/image/product.template/206293/image_128/%5B135940%5D%20RIEGLER%20Rubber%20nozzle%20%C3%98%2035%20mm%20to%20plug%20onto%20the%20pipe?unique=753f762)
|
Type number: 378.01-35 |
9.22 € | |
