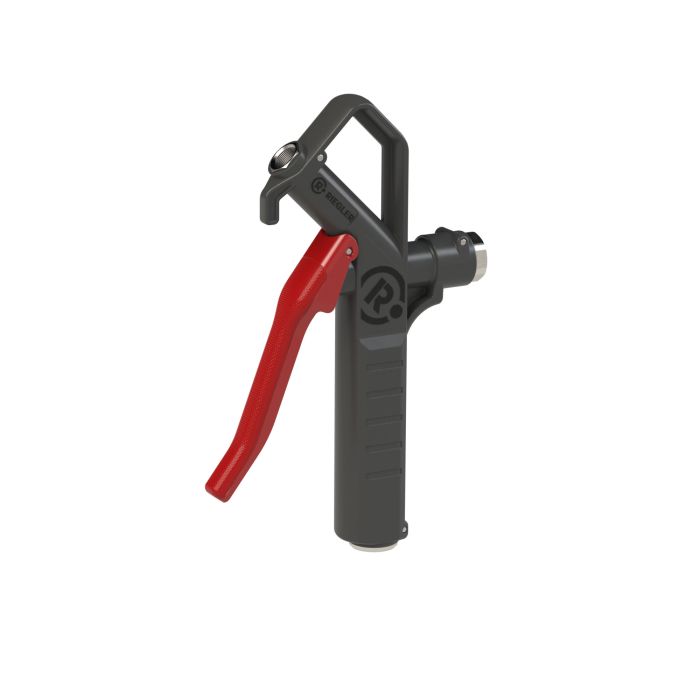

RIEGLER Blow gun, plastic, without nozzle, top connection, G 1/4 IG
Type number: BPKRODOAG14
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Metering blow gun, plastic, without nozzle, top connection, PN max. 12 bar, G 1/4 IG
| Max. operating pressure | 12 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Nozzle | M12x1.25 |
| Connection type | G 1/4 FEMALE THREAD |
| Nozzle type | Without nozzle |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45152 |
| Hand lever | Polyamide with glass fiber (PA6 GF30) |
| Gun body | Polypropylene (PP) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129366] RIEGLER Blow gun, plastic, without nozzle, top connection, nipple NW 7.2](/web/image/product.template/281244/image_128/%5B129366%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20top%20connection%2C%20nipple%20NW%207.2?unique=a240c50)
|
Type number: BPKRODOANW72 |
16.17 € | |

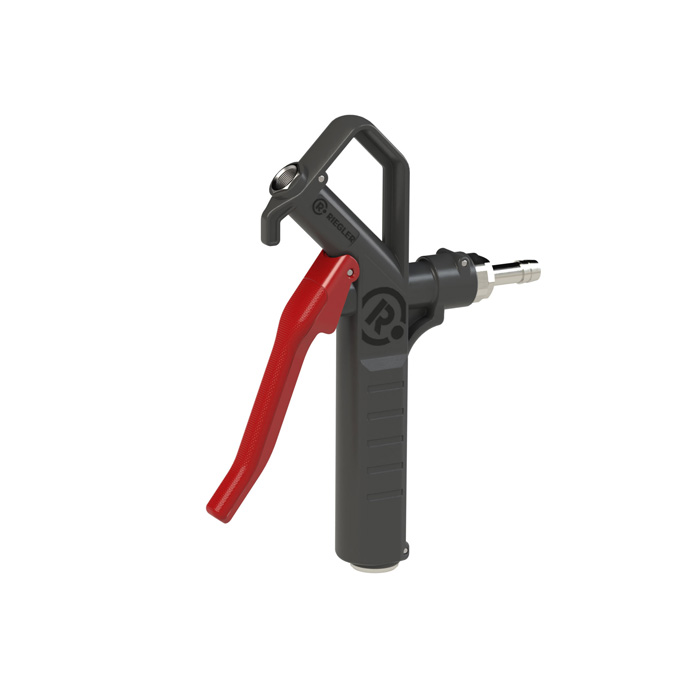

![[129369] RIEGLER Blow gun, plastic, without nozzle, top connection, nozzle LW 13](/web/image/product.template/281247/image_128/%5B129369%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20top%20connection%2C%20nozzle%20LW%2013?unique=60dad37)
|
Type number: BPKRODOALW13 |
16.17 € | |
![[129367] RIEGLER Blow gun, plastic, without nozzle, top connection, nozzle LW 6](/web/image/product.template/281245/image_128/%5B129367%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20top%20connection%2C%20nozzle%20LW%206?unique=bdba556)
|
Type number: BPKRODOALW6 |
16.17 € | |
![[129368] RIEGLER Blow gun, plastic, without nozzle, top connection, nozzle LW 9](/web/image/product.template/281246/image_128/%5B129368%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20top%20connection%2C%20nozzle%20LW%209?unique=f6e13dc)
|
Type number: BPKRODOALW9 |
16.17 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=c9f958d)
|
Type number: BPH-1 |
10.50 € | |
![[101506] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 2 bar](/web/image/product.template/169480/image_128/%5B101506%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%202%20bar?unique=1797613)
|
Type number: 638.42 |
22.93 € | |

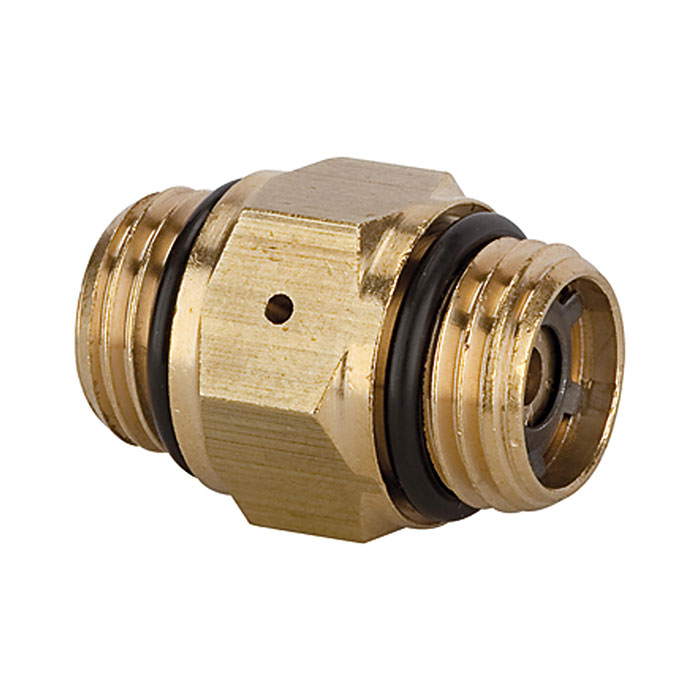

![[101507] RIEGLER Mini pressure regulator, G 1/4 ET/ET, pre-set 4 bar](/web/image/product.template/169481/image_128/%5B101507%5D%20RIEGLER%20Mini%20pressure%20regulator%2C%20G%201-4%20ET-ET%2C%20pre-set%204%20bar?unique=ccbefa2)
|
