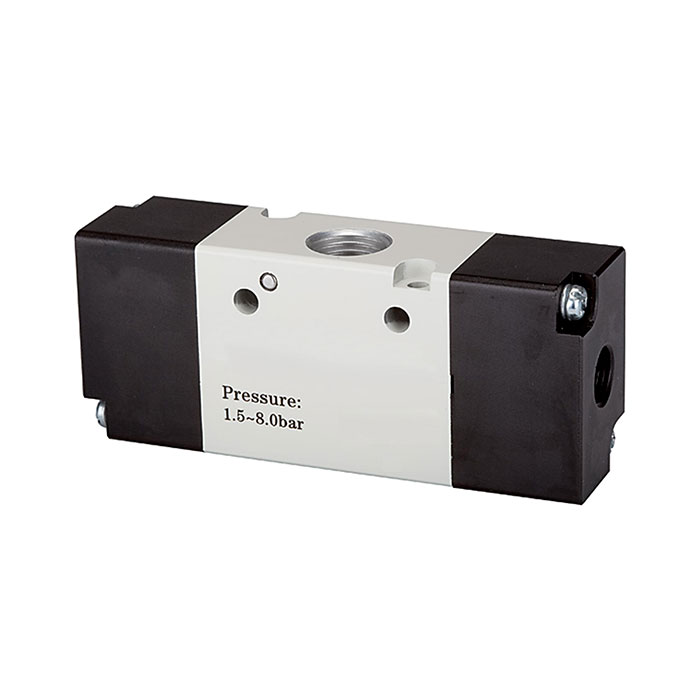

RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, M5
Type number: 516.3000
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way valve, Pneumatic, »3A«, bistable, M5, Operating pressure 1.5 - 8 bar, Temperature range max. 70 °C
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Pilot air connection | G 1/8 |
| Valve body | Aluminum alloy |
| Flow rate | 300 l/min |
| Function | 3/2 |
| Actuation | bistable |
| Symbol | 26 |
| BG | 100 |
| Venting connection | M5 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116049] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/4](/web/image/product.template/200782/image_128/%5B116049%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-4?unique=09887b9)
|
Type number: 516.3003 |
30.29 € | |
![[116050] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/4](/web/image/product.template/200783/image_128/%5B116050%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-4?unique=0680e19)
|
Type number: 516.3004 |
37.28 € | |
![[116047] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/8](/web/image/product.template/200780/image_128/%5B116047%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-8?unique=956568d)
|
Type number: 516.3001 |
29.32 € | |
![[116048] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/8](/web/image/product.template/200781/image_128/%5B116048%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-8?unique=8885a3e)
|
Type number: 516.3002 |
30.29 € | |
![[116051] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 3/8](/web/image/product.template/200784/image_128/%5B116051%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%203-8?unique=8166e77)
|
Type number: 516.3005 |
37.28 € | |
