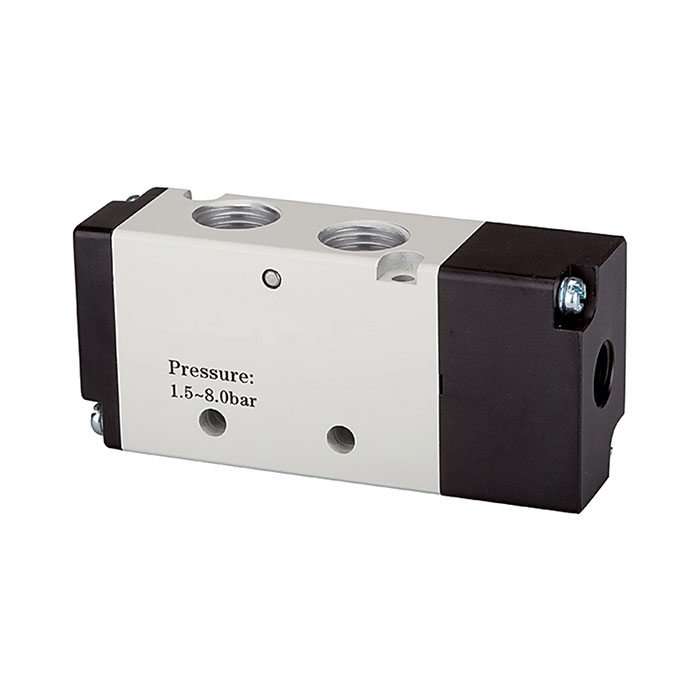

RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/8
Type number: 516.4001
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/2-way valve, pneumatic, "4A", monostable, G 1/8, operating pressure 1.5 - 8 bar, temperature range max. 70 °C, 500 l/min
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Pilot air connection | G 1/8 |
| Valve body | Aluminum alloy |
| Flow rate | 500 l/min |
| Function | 5/2 |
| Actuation | monostable |
| Symbol | 27 |
| BG | 100 |
| Venting connection | G 1/8 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116058] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/2](/web/image/product.template/200791/image_128/%5B116058%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-2?unique=9517f7e)
|
Type number: 516.4006 |
60.93 € | |
![[116055] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/4](/web/image/product.template/200788/image_128/%5B116055%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-4?unique=ee1c282)
|
Type number: 516.4003 |
30.29 € | |
![[116056] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/4](/web/image/product.template/200789/image_128/%5B116056%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-4?unique=087ae9f)
|
Type number: 516.4004 |
38.81 € | |
![[116054] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/8](/web/image/product.template/200787/image_128/%5B116054%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-8?unique=177f39d)
|
Type number: 516.4002 |
30.29 € | |
![[116057] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 3/8](/web/image/product.template/200790/image_128/%5B116057%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%203-8?unique=97ffc62)
|
Type number: 516.4005 |
38.81 € | |
![[116052] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, M5](/web/image/product.template/200785/image_128/%5B116052%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20M5?unique=2d83ded)
|
Type number: 516.4000 |
27.77 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116245] RIEGLER Multi-base plate for 5/2-5/3-way valves, 2 positions, M5, G 1/8](/web/image/product.template/200978/image_128/%5B116245%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%202%20positions%2C%20M5%2C%20G%201-8?unique=45115f5)
|
Type number: 5520.02-18 |
9.14 € | |

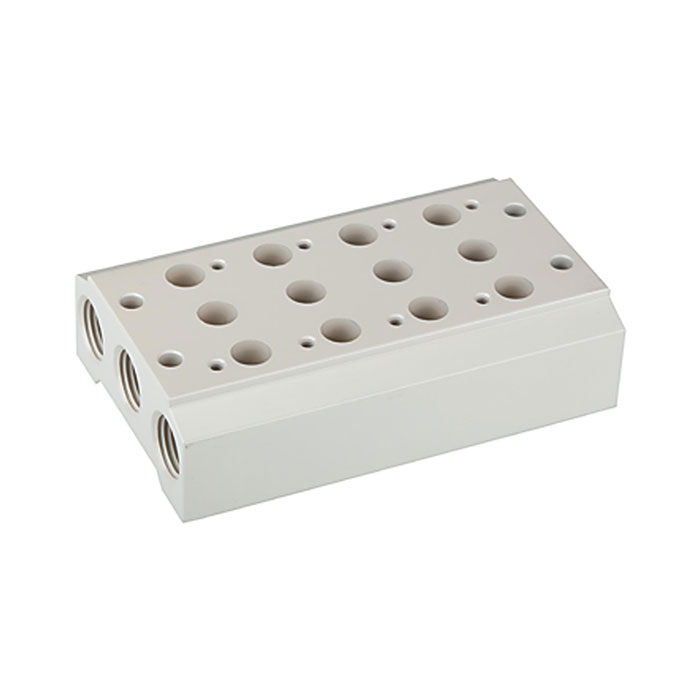

![[116249] RIEGLER Multi-base plate for 5/2-5/3-way valves, 3 positions, M5, G 1/8](/web/image/product.template/200982/image_128/%5B116249%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%203%20positions%2C%20M5%2C%20G%201-8?unique=827e35e)
|
Type number: 5520.03-18 |
13.95 € | |
![[116253] RIEGLER Multi-base plate for 5/2-5/3-way valves, 4 positions, M5, G 1/8](/web/image/product.template/200986/image_128/%5B116253%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%204%20positions%2C%20M5%2C%20G%201-8?unique=b2d1aba)
|
Type number: 5520.04-18 |
18.30 € | |
![[116257] RIEGLER Multi-base plate for 5/2-5/3-way valves, 5 positions, M5, G 1/8](/web/image/product.template/200990/image_128/%5B116257%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%205%20positions%2C%20M5%2C%20G%201-8?unique=ec34cf2)
|
Type number: 5520.05-18 |
23.10 € | |
![[116261] RIEGLER Multi-base plate for 5/2-5/3-way valves, 6 positions, M5, G 1/8](/web/image/product.template/200994/image_128/%5B116261%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%206%20positions%2C%20M5%2C%20G%201-8?unique=c678b34)
|
Type number: 5520.06-18 |
27.45 € | |

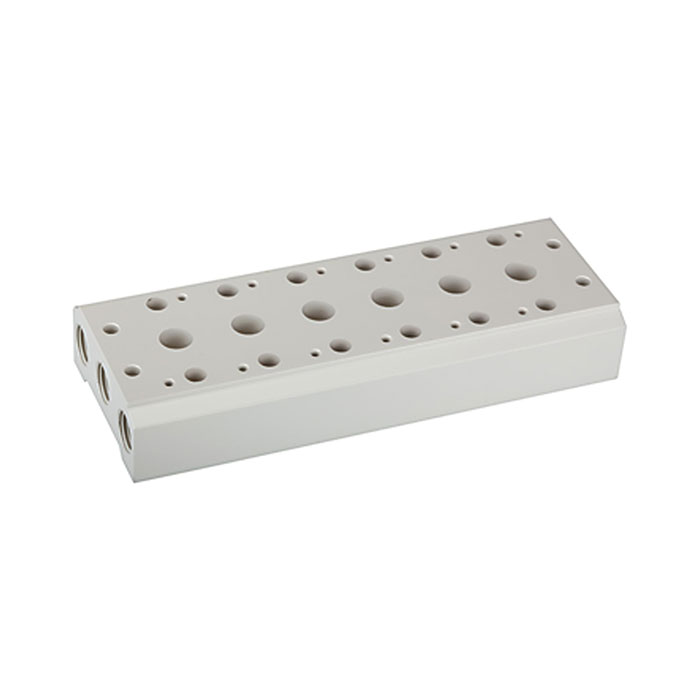

![[116265] RIEGLER Multi-base plate for 5/2-5/3-way valves, 7 positions, M5, G 1/8](/web/image/product.template/200998/image_128/%5B116265%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%207%20positions%2C%20M5%2C%20G%201-8?unique=74117fc)
|
Type number: 5520.07-18 |
32.26 € | |
![[116269] RIEGLER Multi-base plate for 5/2-5/3-way valves, 8 positions, M5, G 1/8](/web/image/product.template/201002/image_128/%5B116269%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%208%20positions%2C%20M5%2C%20G%201-8?unique=0e00925)
|
Type number: 5520.08-18 |
36.62 € | |
