RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, M5
Type number: 516.4000
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 5/2-way valve for pneumatic control, max. 8 bar, M5 - Type 516.4000
The RIEGLER 5/2-way valve, pneumatic, "4A", monostable, M5 controls the direction of the compressed air flow for targeted movement sequences. The operating pressure range is 1.5 bar to 8 bar. M5 connection thread - suitable for common industry standards. The flow rate is 300 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Pilot air connection | G 1/8 |
| Valve body | Aluminum alloy |
| Flow rate | 300 l/min |
| Function | 5/2 |
| Actuation | monostable |

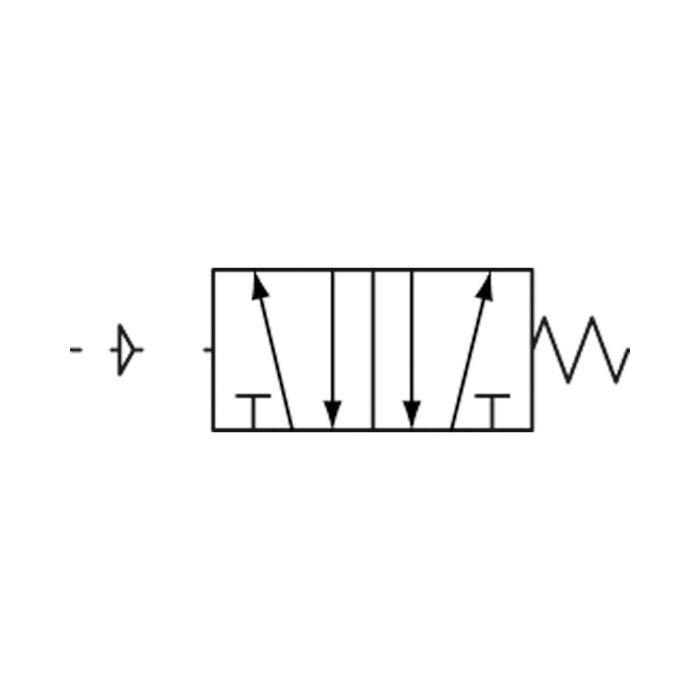

| Symbol | 27 |
| BG | 100 |
| Venting connection | M5 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

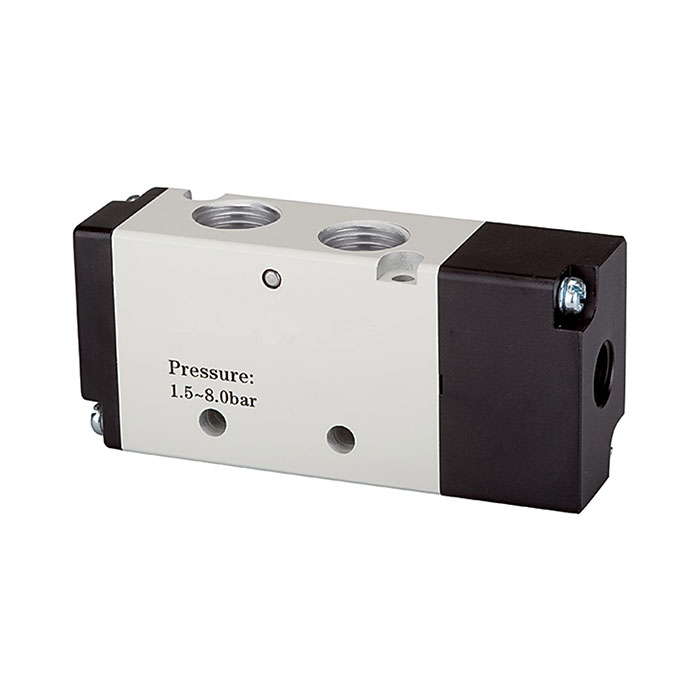

![[116058] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/2](/web/image/product.template/200791/image_128/%5B116058%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-2?unique=e804b75)
|
Type number: 516.4006 |
60.93 € | |
![[116055] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/4](/web/image/product.template/200788/image_128/%5B116055%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-4?unique=b0220b1)
|
Type number: 516.4003 |
30.29 € | |
![[116056] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/4](/web/image/product.template/200789/image_128/%5B116056%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-4?unique=97e91f4)
|
Type number: 516.4004 |
38.81 € | |
![[116053] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/8](/web/image/product.template/200786/image_128/%5B116053%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-8?unique=3c47c92)
|
Type number: 516.4001 |
27.77 € | |
![[116054] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 1/8](/web/image/product.template/200787/image_128/%5B116054%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%201-8?unique=5af7fcb)
|
Type number: 516.4002 |
30.29 € | |
![[116057] RIEGLER 5/2-way valve, Pneumatic, »4A«, monostable, G 3/8](/web/image/product.template/200790/image_128/%5B116057%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB4A%C2%AB%2C%20monostable%2C%20G%203-8?unique=593740c)
|
Type number: 516.4005 |
38.81 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116245] RIEGLER Multi-base plate for 5/2-5/3-way valves, 2 positions, M5, G 1/8](/web/image/product.template/200978/image_128/%5B116245%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%202%20positions%2C%20M5%2C%20G%201-8?unique=2ab0f28)
|
Type number: 5520.02-18 |
9.14 € | |
![[116249] RIEGLER Multi-base plate for 5/2-5/3-way valves, 3 positions, M5, G 1/8](/web/image/product.template/200982/image_128/%5B116249%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%203%20positions%2C%20M5%2C%20G%201-8?unique=7caf2ba)
|
Type number: 5520.03-18 |
13.95 € | |

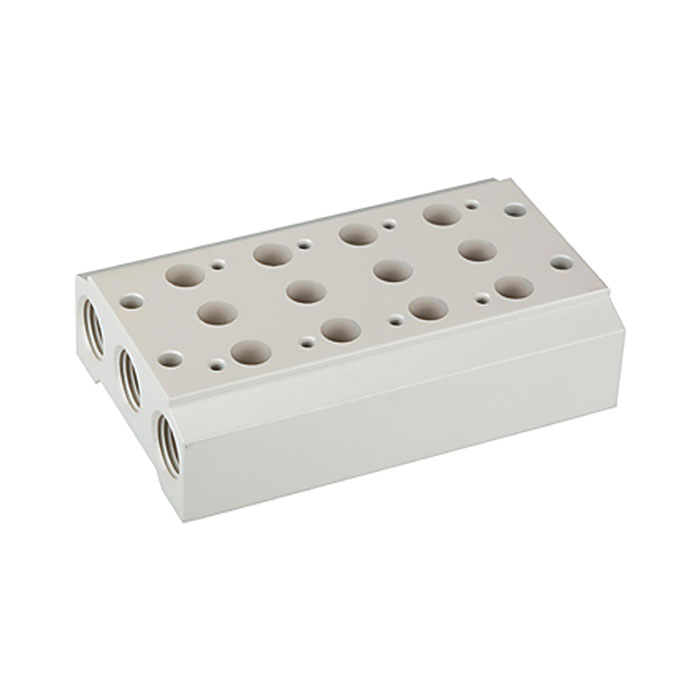

![[116253] RIEGLER Multi-base plate for 5/2-5/3-way valves, 4 positions, M5, G 1/8](/web/image/product.template/200986/image_128/%5B116253%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%204%20positions%2C%20M5%2C%20G%201-8?unique=684270f)
|
Type number: 5520.04-18 |
18.30 € | |
![[116257] RIEGLER Multi-base plate for 5/2-5/3-way valves, 5 positions, M5, G 1/8](/web/image/product.template/200990/image_128/%5B116257%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%205%20positions%2C%20M5%2C%20G%201-8?unique=e651bf9)
|
Type number: 5520.05-18 |
23.10 € | |
![[116261] RIEGLER Multi-base plate for 5/2-5/3-way valves, 6 positions, M5, G 1/8](/web/image/product.template/200994/image_128/%5B116261%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%206%20positions%2C%20M5%2C%20G%201-8?unique=5963a15)
|
Type number: 5520.06-18 |
27.45 € | |

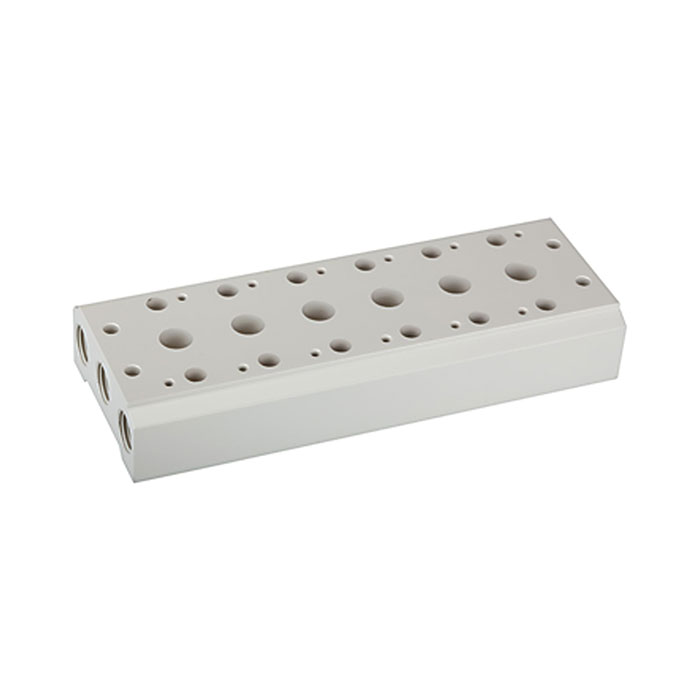

![[116265] RIEGLER Multi-base plate for 5/2-5/3-way valves, 7 positions, M5, G 1/8](/web/image/product.template/200998/image_128/%5B116265%5D%20RIEGLER%20Multi-base%20plate%20for%205-2-5-3-way%20valves%2C%207%20positions%2C%20M5%2C%20G%201-8?unique=f778e47)
|
