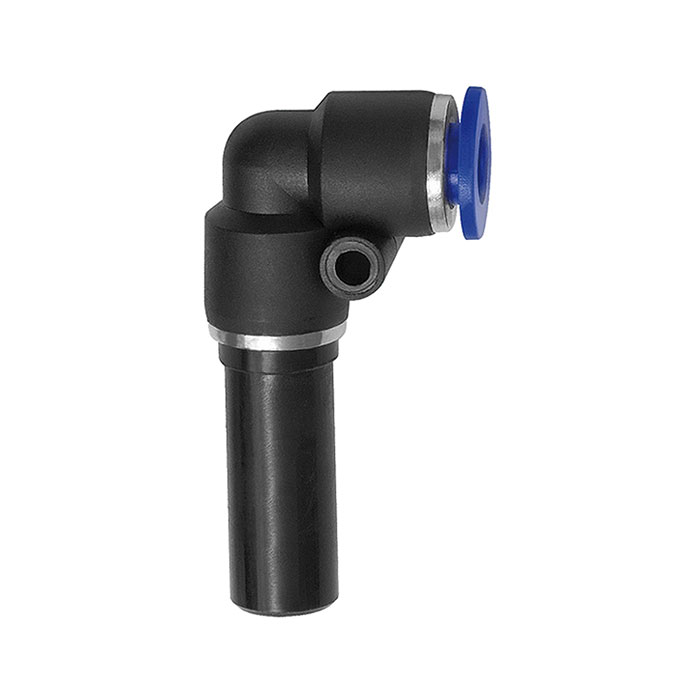

RIEGLER Push-in L-connector, Plug nipple 12 mm »Blue Series«, reducing
Type number: 157.1210-K
EAN: 4047322409049
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
L-connector, plug-in nipple 12 mm "blue series", red, for hose outer Ø 10 mm, pmax short-term 15 bar, plastic
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 10 mm |
| Plug nipple | 12 mm |
| L1 | 27.7 mm |
| L2 | 47.2 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
