RIEGLER Push-in L-connector, Plug nipple 10 mm »Blue Series«, reducing
Type number: 157.1006-K
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
L-connector, plug-in nipple 10 mm "blue series", red, for hose outer Ø 6 mm, pmax short-term 15 bar, plastic
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 6 mm |
| Plug nipple | 10 mm |
| L1 | 18.7 mm |
| L2 | 38.2 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125730] RIEGLER Push-in L-connector, Plug nipple 10 mm »Blue Series«, reducing](/web/image/product.template/202572/image_128/%5B125730%5D%20RIEGLER%20Push-in%20L-connector%2C%20Plug%20nipple%2010%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=2280b19)
|
Type number: 157.1008-K |
2.69 € | |
![[125738] RIEGLER Push-in L-connector, Plug nipple 12 mm »Blue Series«, reducing](/web/image/product.template/202580/image_128/%5B125738%5D%20RIEGLER%20Push-in%20L-connector%2C%20Plug%20nipple%2012%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=7d05b5e)
|
Type number: 157.1210-K |
2.76 € | |

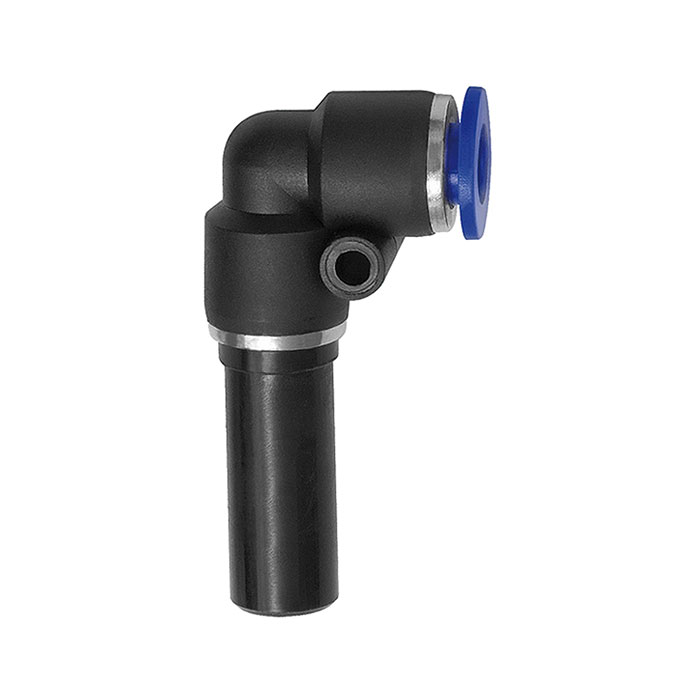

![[135770] RIEGLER Push-in L-connector, Plug nipple 12 mm »Blue Series«, reducing](/web/image/product.template/206148/image_128/%5B135770%5D%20RIEGLER%20Push-in%20L-connector%2C%20Plug%20nipple%2012%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=e026635)
|
Type number: 157.1208-K |
2.82 € | |
![[135771] RIEGLER Push-in L-connector, Plug nipple 16 mm »Blue Series«, reducing](/web/image/product.template/206149/image_128/%5B135771%5D%20RIEGLER%20Push-in%20L-connector%2C%20Plug%20nipple%2016%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=a468f66)
|
Type number: 157.1612-K |
5.91 € | |
![[125726] RIEGLER Push-in L-connector, Plug nipple 6 mm »Blue Series«, reducing](/web/image/product.template/202568/image_128/%5B125726%5D%20RIEGLER%20Push-in%20L-connector%2C%20Plug%20nipple%206%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=7560815)
|
Type number: 157.0604-K |
1.82 € | |
![[125728] RIEGLER Push-in L-connector, Plug nipple 8 mm »Blue Series«, reducing](/web/image/product.template/202570/image_128/%5B125728%5D%20RIEGLER%20Push-in%20L-connector%2C%20Plug%20nipple%208%20mm%20%C2%BBBlue%20Series%C2%AB%2C%20reducing?unique=4d5c97e)
|
Type number: 157.0806-K |
1.88 € | |
