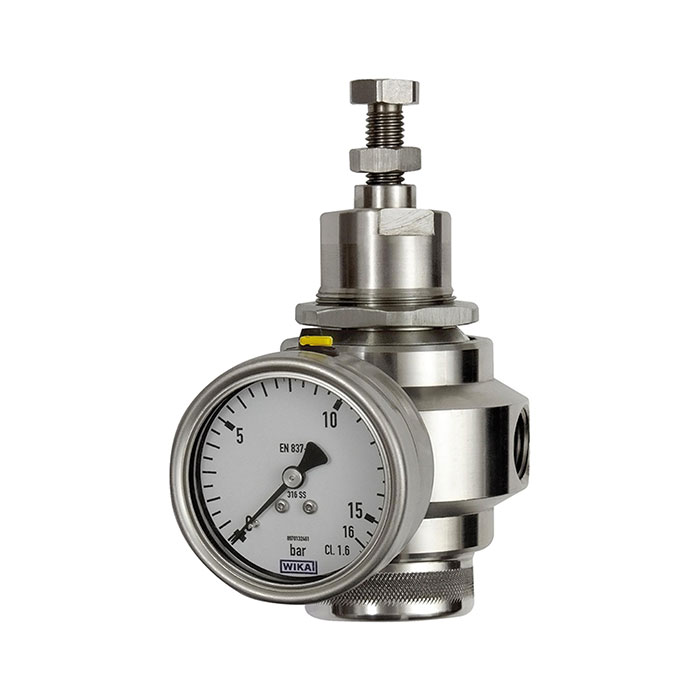

RIEGLER Stainless steel pressure regulator, 1.4401, G 1/4, 1.7 - 17.5 bar
Type number: 580RM1-14-17
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel pressure regulator, 1.4401, with secondary venting (reversible), incl. pressure gauge, BG 1, G 1/4, control range 1.7 - 17.5 bar
| Inlet pressure max. | 30 bar |
| Housing | Stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Membrane | NBR/PTFE |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 2320 l/min |
| Control range min. | 1.7 bar |
| Control range max. | 17.5 bar |
| BG | 1 |
| A | 64 mm |
| B | 167 mm |
| C | 50 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133534] RIEGLER Stainless steel pressure regulator, 1.4401, G 1, 1.7 - 17.5 bar](/web/image/product.template/202906/image_128/%5B133534%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4401%2C%20G%201%2C%201.7%20-%2017.5%20bar?unique=9d55f75)
|
Type number: 580RM4-1-17 |
1,133.68 € | |
![[133527] RIEGLER Stainless steel pressure regulator, 1.4401, G 3/8, 0.4 - 4.0 bar](/web/image/product.template/202899/image_128/%5B133527%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4401%2C%20G%203-8%2C%200.4%20-%204.0%20bar?unique=883e444)
|
Type number: 580RM1-38-4 |
335.21 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

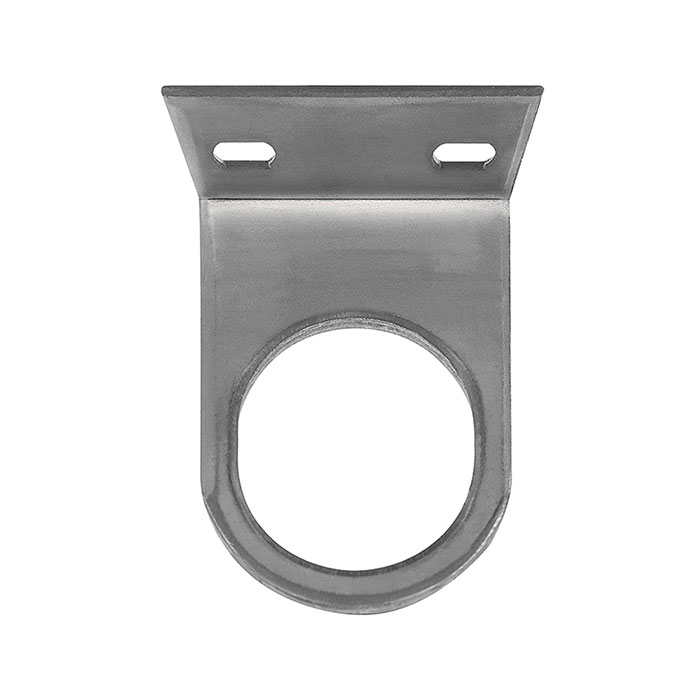

![[137113] RIEGLER Mounting bracket for stainless steel pressure/filter regulator](/web/image/product.template/207790/image_128/%5B137113%5D%20RIEGLER%20Mounting%20bracket%20for%20stainless%20steel%20pressure-filter%20regulator?unique=f730d28)
|
Type number: 580RM-BW |
20.56 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

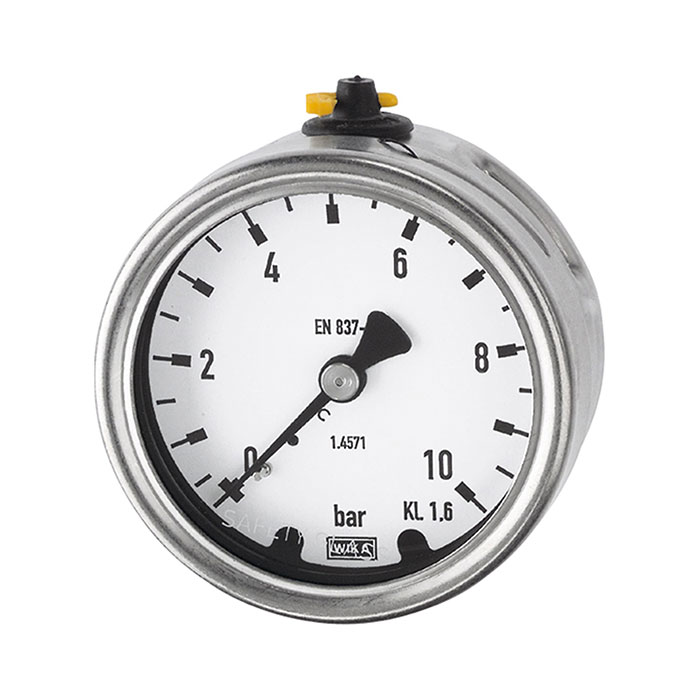

![[102511] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170483/image_128/%5B102511%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=51c785f)
|
Type number: 4086 |
113.69 € | |

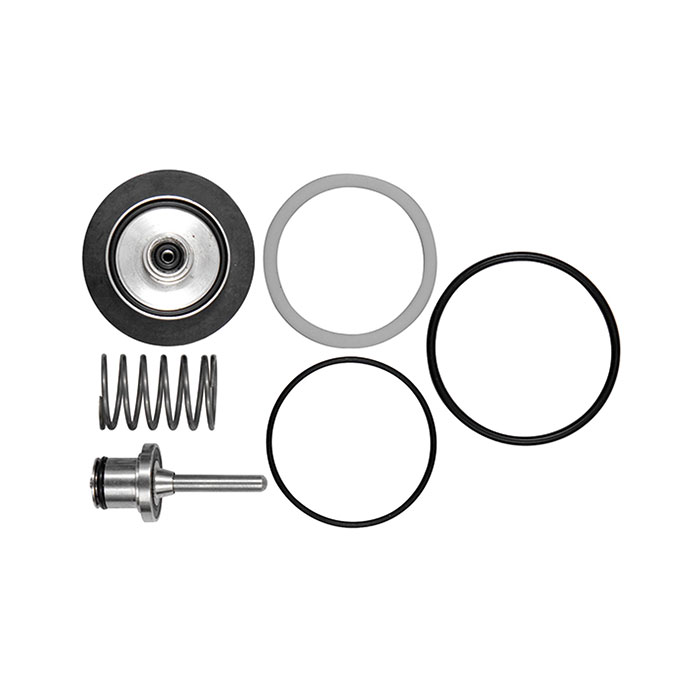

![[137114] RIEGLER Wear part set for stainless steel pressure/filter regulator](/web/image/product.template/207791/image_128/%5B137114%5D%20RIEGLER%20Wear%20part%20set%20for%20stainless%20steel%20pressure-filter%20regulator?unique=10dd9cf)
|
Type number: 580RM1-VS |
43.04 € | |
