RIEGLER Stainless steel pressure regulator, 1.4401, G 3/8, 0.4 - 4.0 bar
Type number: 580RM1-38-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel pressure regulator made of stainless steel 1.4401 (AISI 316), for compressed air treatment - Type 580RM1-38-4
The RIEGLER stainless steel pressure regulator, 1.4401, BG 1, G 3/8, 0.4 - 4.0 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of stainless steel 1.4401 (AISI 316) with NBR seals. The control range extends from 0.4 bar to 4 bar with a maximum inlet pressure of 30 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 4900 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 30 bar |
| Housing | Stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Membrane | NBR/PTFE |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/8 |
| Flow rate | 4900 l/min |
| Control range min. | 0.4 bar |
| Control range max. | 4 bar |
| BG | 1 |
| A | 64 mm |
| B | 167 mm |
| C | 50 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133534] RIEGLER Stainless steel pressure regulator, 1.4401, G 1, 1.7 - 17.5 bar](/web/image/product.template/202906/image_128/%5B133534%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4401%2C%20G%201%2C%201.7%20-%2017.5%20bar?unique=0ba415f)
|
Type number: 580RM4-1-17 |
1,128.04 € | |

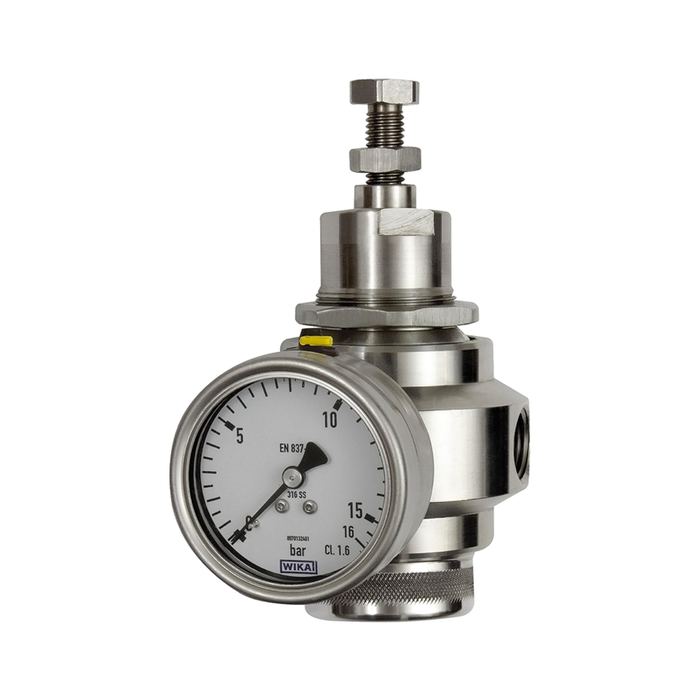

![[133526] RIEGLER Stainless steel pressure regulator, 1.4401, G 1/4, 1.7 - 17.5 bar](/web/image/product.template/202898/image_128/%5B133526%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4401%2C%20G%201-4%2C%201.7%20-%2017.5%20bar?unique=36c2b2d)
|
Type number: 580RM1-14-17 |
333.53 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

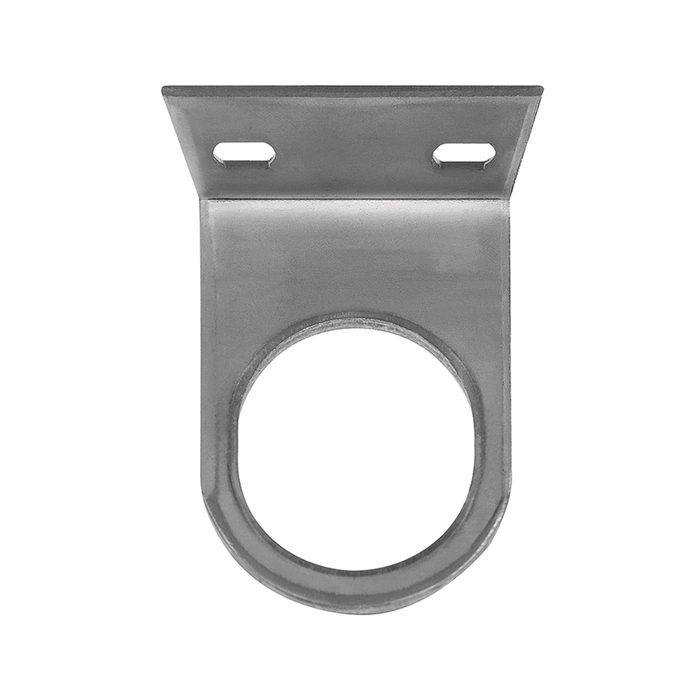

![[137113] RIEGLER Mounting bracket for stainless steel pressure/filter regulator](/web/image/product.template/207790/image_128/%5B137113%5D%20RIEGLER%20Mounting%20bracket%20for%20stainless%20steel%20pressure-filter%20regulator?unique=36c2b2d)
|
Type number: 580RM-BW |
14.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

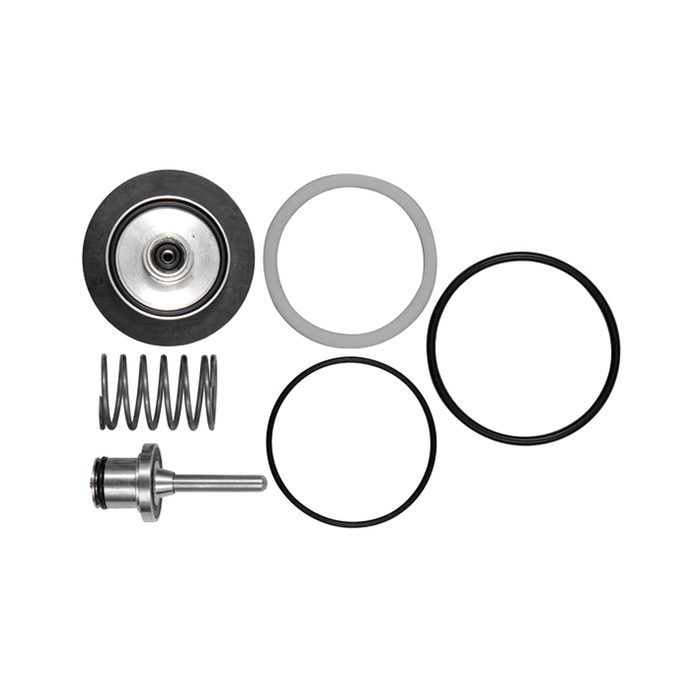

![[137114] RIEGLER Wear part set for stainless steel pressure/filter regulator](/web/image/product.template/207791/image_128/%5B137114%5D%20RIEGLER%20Wear%20part%20set%20for%20stainless%20steel%20pressure-filter%20regulator?unique=4bd6c8f)
|
Type number: 580RM1-VS |
42.83 € | |
