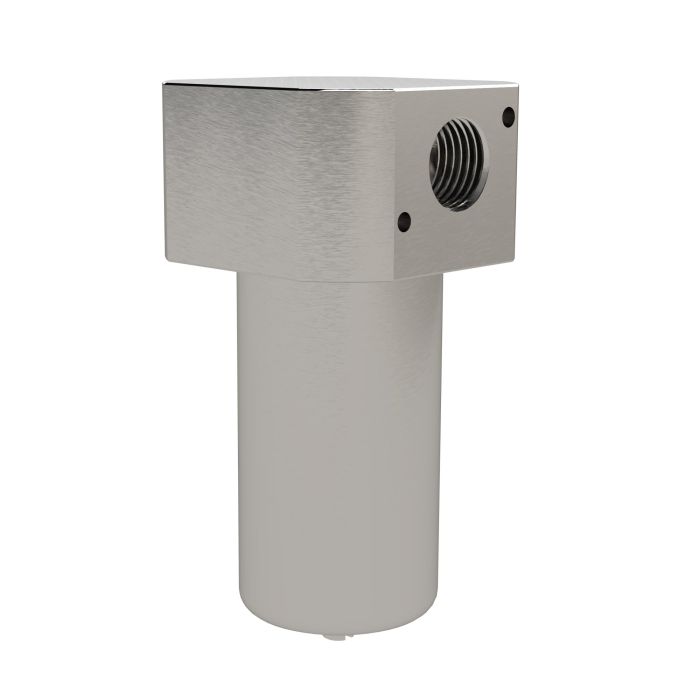

RIEGLER Edelstahl-Filter, 1.4404, 50 µm, G 1/2
Type number: FES.G1250.T
EAN: 4047322750523
Product no. :
134664Category :
FiltersStainless steel filter, 1.4404, 50 µm, G 1/2, inlet pressure max. 60 bar, ambient medium temperature max. 80 °C
| A | 130 mm |
| B | 68 mm |
| Sealing material | HNBR |
| Durchfluss_1 | 6000 l/min |
| Flow rate measurement | at P1 = 10 bar and pressure drop Δp ≤ 1 bar |
| E | 68 mm |
| Inlet pressure max. | 60 bar |
| F | 114 mm |
| Filter fineness | 50 µm |
| G | 22 mm |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1/2 |
| H | 32 mm |
| I | 103 mm |
| Class name | STAINLESS STEEL |
| Condensate drain | manual drain |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
