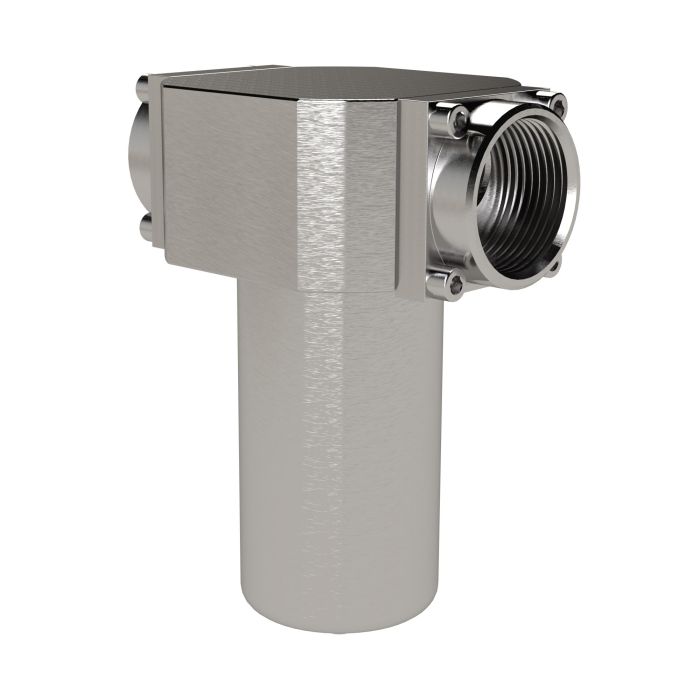

RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1
Type number: FES.G150.T
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel filter made of stainless steel 1.4404 (AISI 316L), for compressed air treatment, G 1 - type FES.G150.T
The RIEGLER stainless steel filter, 1.4404, 50 µm, G 1 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of stainless steel 1.4404 (AISI 316L) with HNBR seals. The maximum inlet pressure is 60 bar. The permissible medium temperature is between -40 °C and 80 °C. Connection thread G 1 - suitable for common industry standards. Filter fineness 50 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| A | 145 mm |
| B | 124 mm |
| Sealing material | HNBR |
| Flow 1 | 10000 l/min |
| Flow rate measurement | at P1 = 10 bar and pressure drop Δp ≤ 1 bar |
| E | 88 mm |
| Inlet pressure max. | 60 bar |
| F | 123 mm |
| Filter fineness | 50 µm |
| G | 36 mm |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1 |
| H | 34 mm |
| I | 104 mm |
| Class name | STAINLESS STEEL |
| Condensate drain | manual drain |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[134664] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/2](/web/image/product.template/267964/image_128/%5B134664%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%201-2?unique=6453d72)
|
Type number: FES.G1250.T |
258.37 € | |
![[134411] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/4](/web/image/product.template/267961/image_128/%5B134411%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%201-4?unique=5f58128)
|
Type number: FES.G1450.T |
248.23 € | |
![[134671] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 3/4](/web/image/product.template/267991/image_128/%5B134671%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%203-4?unique=252ba49)
|
Type number: FES.G3450.T |
288.78 € | |

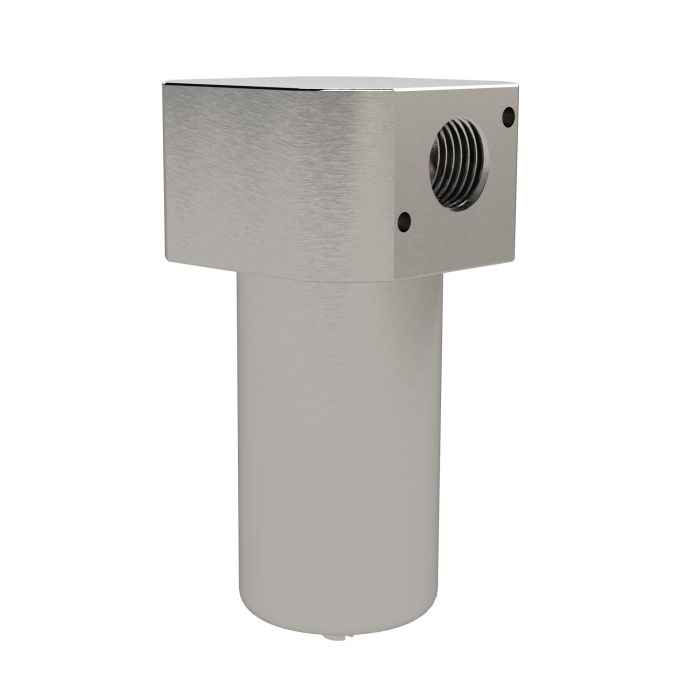

![[134498] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 3/8](/web/image/product.template/267980/image_128/%5B134498%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%203-8?unique=43773cf)
|
Type number: FES.G3850.T |
263.43 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

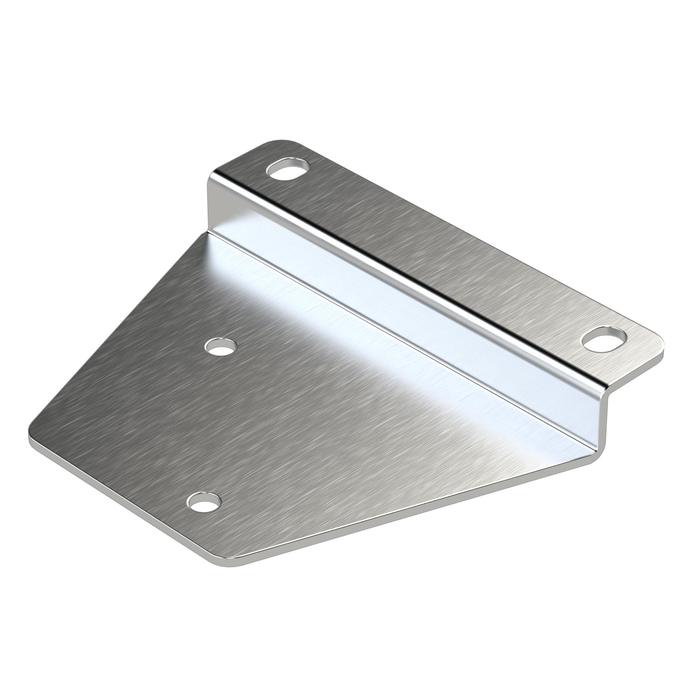

![[135572] RIEGLER Mounting bracket, for filter, G 1](/web/image/product.template/278498/image_128/%5B135572%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20filter%2C%20G%201?unique=158759b)
|
Type number: HWFES.G1.T |
22.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

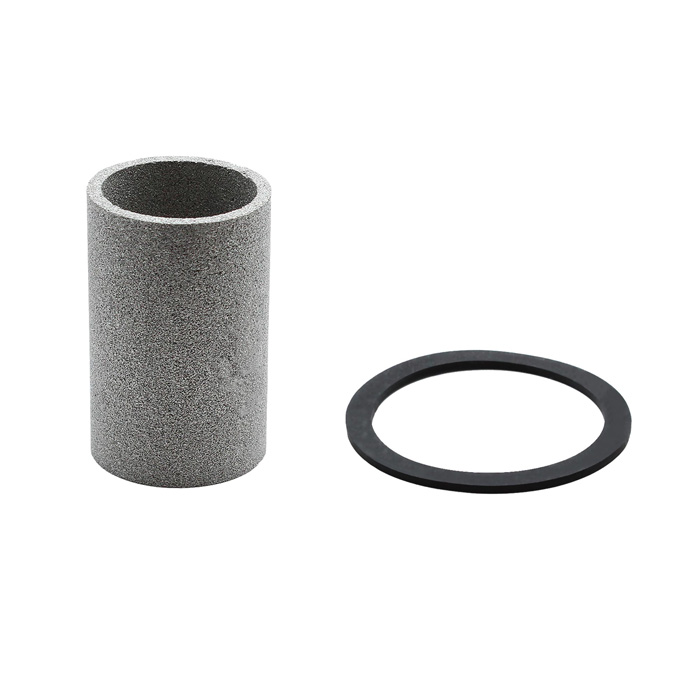

![[135491] RIEGLER Wear parts kit, for filters and filter regulators, G 1](/web/image/product.template/278494/image_128/%5B135491%5D%20RIEGLER%20Wear%20parts%20kit%2C%20for%20filters%20and%20filter%20regulators%2C%20G%201?unique=0584471)
|
Type number: VTSFFRES.G1.T |
81.06 € | |
