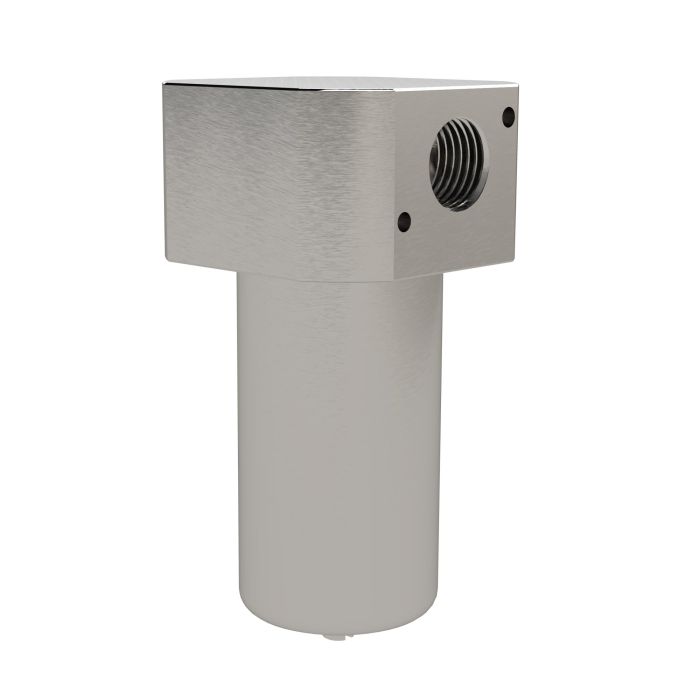

RIEGLER Stainless steel filter, 1.4404, 50 µm, G 3/8
Type number: FES.G3850.T
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Stainless steel filter, 1.4404, 50 µm, G 3/8, inlet pressure max. 60 bar, ambient medium temperature max. 80 °C
| A | 112 mm |
| B | 62 mm |
| Sealing material | HNBR |
| Flow 1 | 4000 l/min |
| Flow rate measurement | at P1 = 10 bar and pressure drop Δp ≤ 1 bar |
| E | 62 mm |
| Inlet pressure max. | 60 bar |
| F | 97 mm |
| Filter fineness | 50 µm |
| G | 20 mm |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 3/8 |
| H | 28 mm |
| I | 87 mm |
| Class name | STAINLESS STEEL |
| Condensate drain | manual drain |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

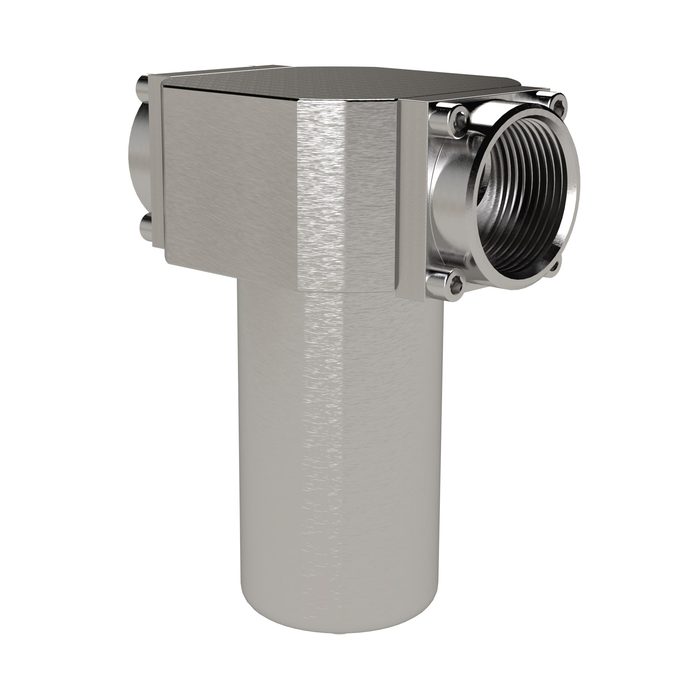

![[134941] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1](/web/image/product.template/268104/image_128/%5B134941%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%201?unique=570a163)
|
Type number: FES.G150.T |
666.21 € | |
![[134664] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/2](/web/image/product.template/267964/image_128/%5B134664%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%201-2?unique=71da62b)
|
Type number: FES.G1250.T |
258.37 € | |
![[134411] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/4](/web/image/product.template/267961/image_128/%5B134411%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%201-4?unique=eefa830)
|
Type number: FES.G1450.T |
248.23 € | |
![[134671] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 3/4](/web/image/product.template/267991/image_128/%5B134671%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%203-4?unique=92b752b)
|
Type number: FES.G3450.T |
288.78 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

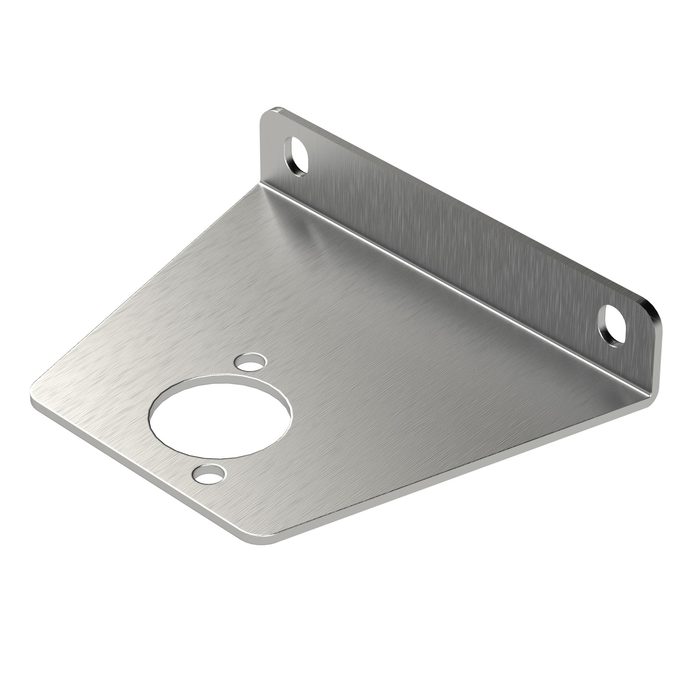

![[135505] RIEGLER Mounting bracket, for pressure regulators, filter regulators and filters, G 1/4 and G 3/8](/web/image/product.template/278495/image_128/%5B135505%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20pressure%20regulators%2C%20filter%20regulators%20and%20filters%2C%20G%201-4%20and%20G%203-8?unique=60724ed)
|
Type number: HWDRFRFES.G14.G38.T |
20.27 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

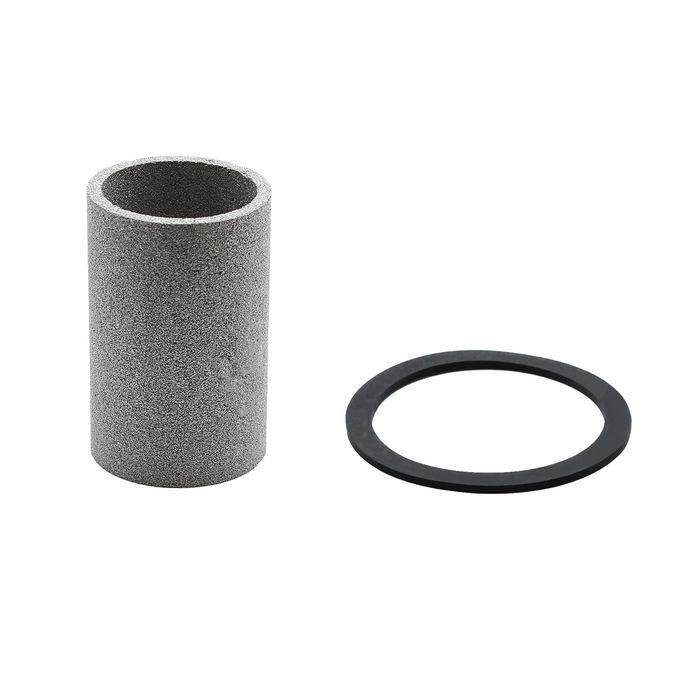

![[135054] RIEGLER Wear parts set, for filters and filter regulators, G 1/4 and G 3/8](/web/image/product.template/278491/image_128/%5B135054%5D%20RIEGLER%20Wear%20parts%20set%2C%20for%20filters%20and%20filter%20regulators%2C%20G%201-4%20and%20G%203-8?unique=d4eaa41)
|
Type number: VTSFFRES.G14.G38.T |
38.00 € | |
