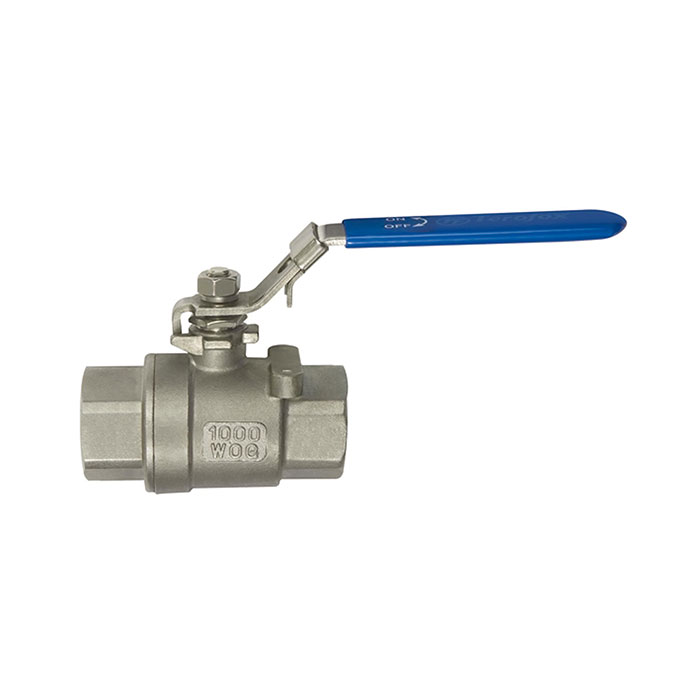

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3/4
Type number: 397.04
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, 2-part, overall length to DIN 3202-M3, G 3/4, DN 20, operating temperature -20° to 180 °C, PN max. 63 bar
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 3/4 |
| DN | 20 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 105 mm |
| B | 59 mm |
| L | 80 mm |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.5 mm |
