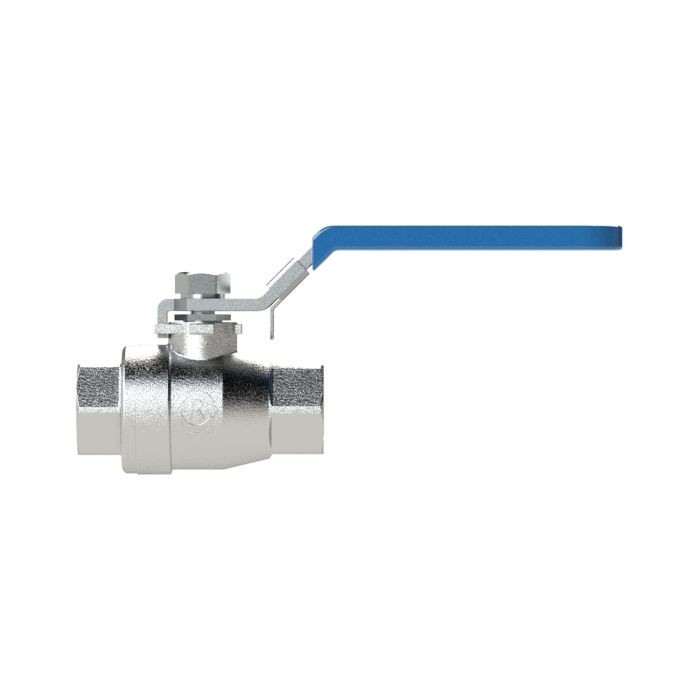

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1
Type number: 397.05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4408, for industrial systems, G 1 - type 397.05
The RIEGLER stainless steel ball valve, 2-part, overall length to DIN 3202-M3, G 1 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. Connection thread G 1 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Operating pressure | max. 63 bar (depending on temperature) |
| Thread | G 1 |
| DN | 25 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

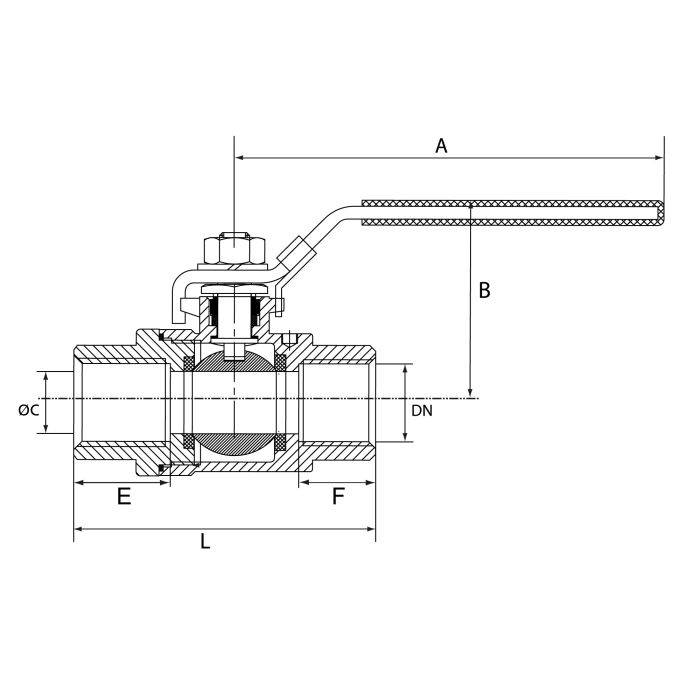

| A | 137 mm |
| B | 65 mm |
| L | 90 mm |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.5 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135357] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/2](/web/image/product.template/205996/image_128/%5B135357%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201%201-2?unique=9861c7d)
|
Type number: 397.07 |
99.54 € | |
![[135356] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/4](/web/image/product.template/205995/image_128/%5B135356%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201%201-4?unique=e20c65f)
|
Type number: 397.06 |
79.10 € | |
![[135353] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/2](/web/image/product.template/205992/image_128/%5B135353%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201-2?unique=0626110)
|
Type number: 397.03 |
23.88 € | |
![[135351] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/4](/web/image/product.template/205990/image_128/%5B135351%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201-4?unique=a3330eb)
|
Type number: 397.01 |
19.67 € | |

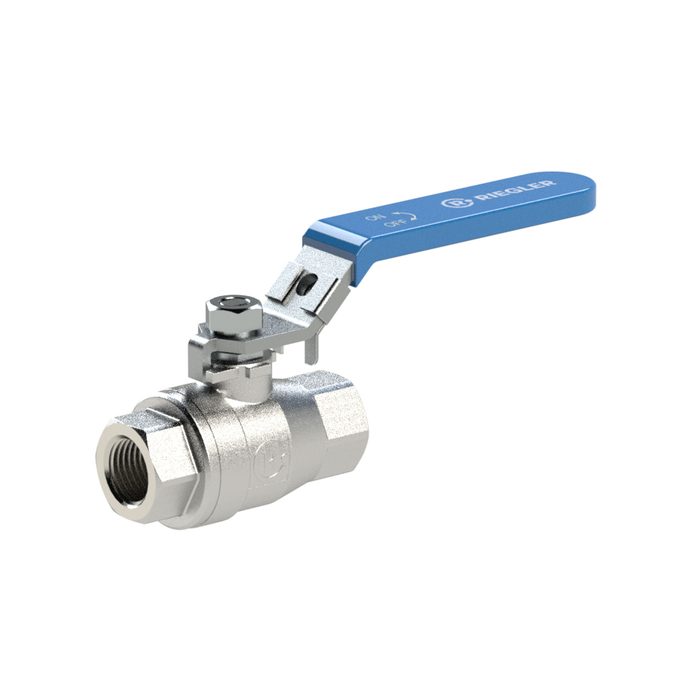

![[135358] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2](/web/image/product.template/205997/image_128/%5B135358%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%202?unique=af5616e)
|
Type number: 397.08 |
153.52 € | |
![[135354] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3/4](/web/image/product.template/205993/image_128/%5B135354%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203-4?unique=fe25941)
|
Type number: 397.04 |
34.37 € | |

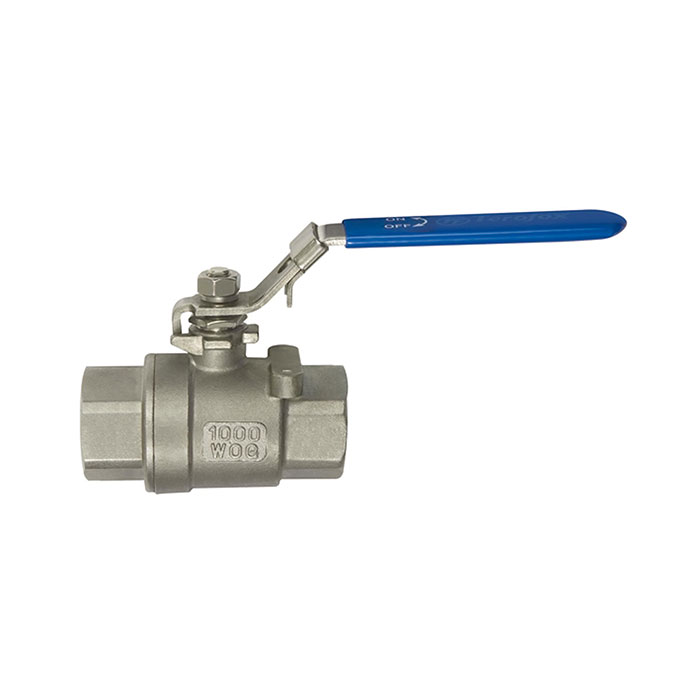

![[135352] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3/8](/web/image/product.template/205991/image_128/%5B135352%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203-8?unique=0b051c6)
|
