RIEGLER Flowmeter, DN 25, R 1, 0.5 - 290 m³/h
Type number: DFMM25-1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Flow meter, incl. measuring section with threaded connection R 1, DN 25, measuring range 0.5 - 290 m³/h, PN max. 16 bar
| Temperature range min. | -30 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Measuring system | calorimetric measurement |
| Max. operating pressure | 16 bar |
| Output of the flow rate values | analog 4 - 20 mA, pulse output (galvanically isolated) |
| Operating voltage | 24 V DC |
| Display | Backlight |
| Thread | R 1 |
| DN | 25 |
| Tube inside Ø | 27.3 mm |
| L | 475 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| H1 | 165.7 mm |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Measuring range min. | 0.5 m³/h |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

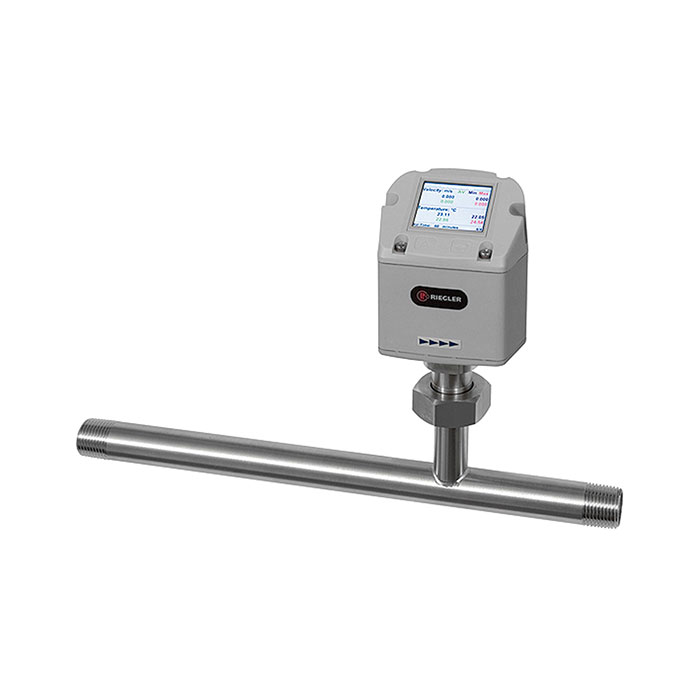

![[135871] RIEGLER Flowmeter, DN 15, R 1/2, 0.2 - 90 m³/h](/web/image/product.template/206225/image_128/%5B135871%5D%20RIEGLER%20Flowmeter%2C%20DN%2015%2C%20R%201-2%2C%200.2%20-%2090%20m%C2%B3-h?unique=16c34b9)
|
