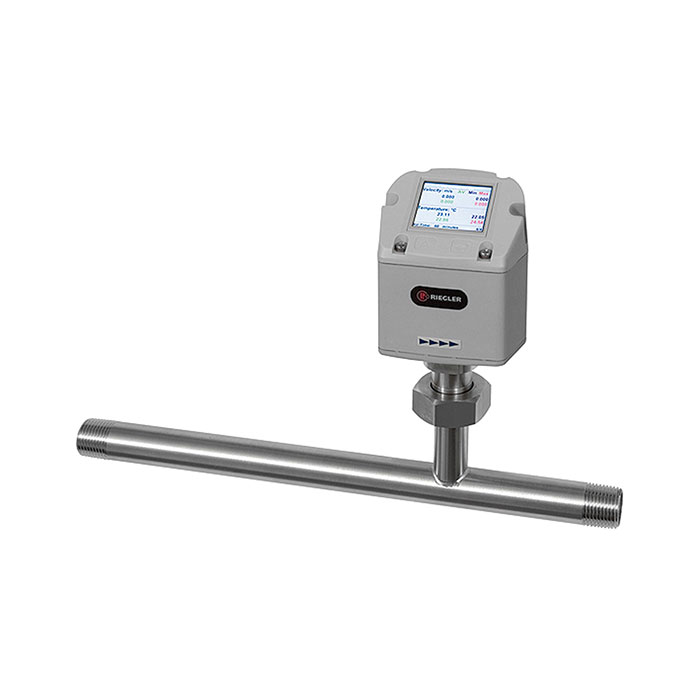

RIEGLER Flowmeter, DN 8, R 1/4, 0.8 - 90 l/min
Type number: DFMM08-14
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Flow meter for pressure measurement, max. 16 bar, R 1/4 - Type DFMM08-14
The RIEGLER flow meter, DN 8, R 1/4, 0.8 - 90 l/min measures pressure or temperature reliably and precisely. Designed for a maximum operating pressure of 16 bar. The temperature range extends between -30 °C and 80 °C. Connection thread R 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. Operating voltage 24 V DC. Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Temperature range min. | -30 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Measuring system | calorimetric measurement |
| Max. operating pressure | 16 bar |
| Output of the flow rate values | analog 4 - 20 mA, pulse output (galvanically isolated) |
| Operating voltage | 24 V DC |
| Display | Backlight |
| Thread | R 1/4 |
| DN | 8 |
| Tube inside Ø | 8.9 mm |
| L | 194 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| H1 | 165.7 mm |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Measuring range min. | 0.8 l/min |
| Material identification | none |
| Class name | MAX |
