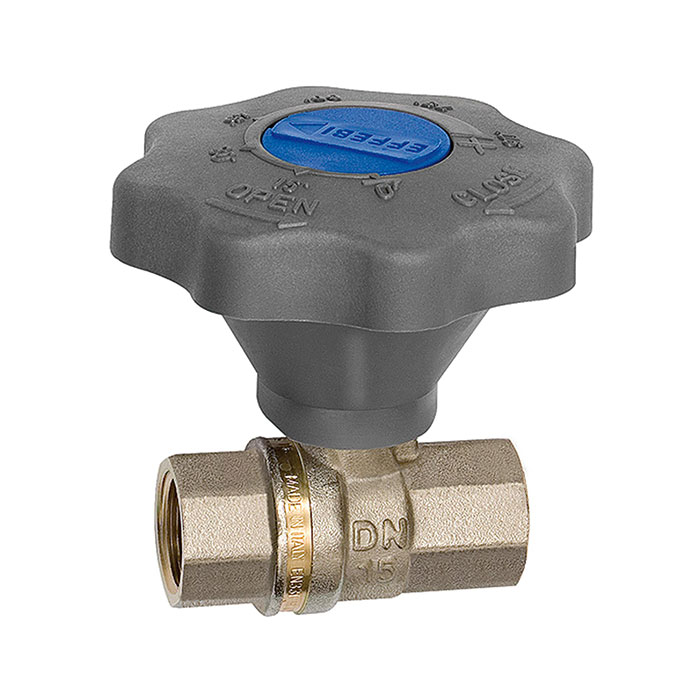

RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 1 1/4
Type number: 335.107
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve fine adjustment, Potable water, nickel-plated bright brass, Temp. -15°C to 120°C, Rp 1 1/4, DN 32, PN max 40 bar
| Housing | Nickel-plated brass (outside), bright brass (inside) |
| Handwheel | Plastic |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE / NBR |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 120 °C |
| DVGW approval | DIN EN 13828:2003-12, DVGW W 570 |
| Thread | Rp 1 1/4 |
| DN | 32 |
| PN | 40 bar |
| Thread standard | Thread according to ISO 7/1 |
| A | 129.6 mm |
| B | 113.3 mm |
| L | 95.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | FLEX |
