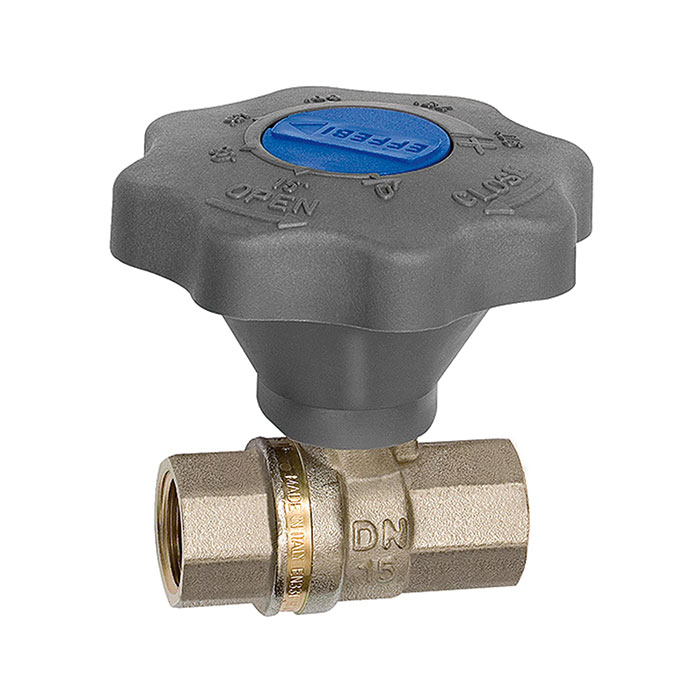

RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 1/2
Type number: 335.104
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve made of nickel-plated brass (outside), bare brass (inside), for industrial systems - Type 335.104
The RIEGLER ball valve, fine adjustment, nickel-plated/brass blank, Rp 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass (outside), bright brass (inside). The operating temperature is between -15 °C and 120 °C. Connection thread Rp 1/2 (thread to ISO 7/1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass (outside), bright brass (inside) |
| Handwheel | Plastic |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE / NBR |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 120 °C |
| DVGW approval | DIN EN 13828:2003-12, DVGW W 570 |
| Thread | Rp 1/2 |
| DN | 15 |
| PN | 50 bar |
| Thread standard | Thread according to ISO 7/1 |
| A | 83.2 mm |
| B | 70.7 mm |
| L | 61.1 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[138875] RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 1](/web/image/product.template/207954/image_128/%5B138875%5D%20RIEGLER%20Ball%20valve%20fine%20adjustment%2C%20nickel-plated%20bright%20brass%2C%20Rp%201?unique=d004d42)
|
Type number: 335.106 |
32.75 € | |
![[138877] RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 1 1/2](/web/image/product.template/207956/image_128/%5B138877%5D%20RIEGLER%20Ball%20valve%20fine%20adjustment%2C%20nickel-plated%20bright%20brass%2C%20Rp%201%201-2?unique=f4b0ef5)
|
Type number: 335.108 |
71.22 € | |
![[138876] RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 1 1/4](/web/image/product.template/207955/image_128/%5B138876%5D%20RIEGLER%20Ball%20valve%20fine%20adjustment%2C%20nickel-plated%20bright%20brass%2C%20Rp%201%201-4?unique=4192c02)
|
Type number: 335.107 |
54.07 € | |
![[138871] RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 1/4](/web/image/product.template/207950/image_128/%5B138871%5D%20RIEGLER%20Ball%20valve%20fine%20adjustment%2C%20nickel-plated%20bright%20brass%2C%20Rp%201-4?unique=0e7df02)
|
Type number: 335.102 |
20.13 € | |
![[138878] RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 2](/web/image/product.template/207957/image_128/%5B138878%5D%20RIEGLER%20Ball%20valve%20fine%20adjustment%2C%20nickel-plated%20bright%20brass%2C%20Rp%202?unique=742c512)
|
Type number: 335.109 |
107.34 € | |
![[138874] RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 3/4](/web/image/product.template/207953/image_128/%5B138874%5D%20RIEGLER%20Ball%20valve%20fine%20adjustment%2C%20nickel-plated%20bright%20brass%2C%20Rp%203-4?unique=b45c588)
|
Type number: 335.105 |
24.76 € | |
![[138872] RIEGLER Ball valve fine adjustment, nickel-plated bright brass, Rp 3/8](/web/image/product.template/207951/image_128/%5B138872%5D%20RIEGLER%20Ball%20valve%20fine%20adjustment%2C%20nickel-plated%20bright%20brass%2C%20Rp%203-8?unique=433df28)
|
Type number: 335.103 |
20.13 € | |
