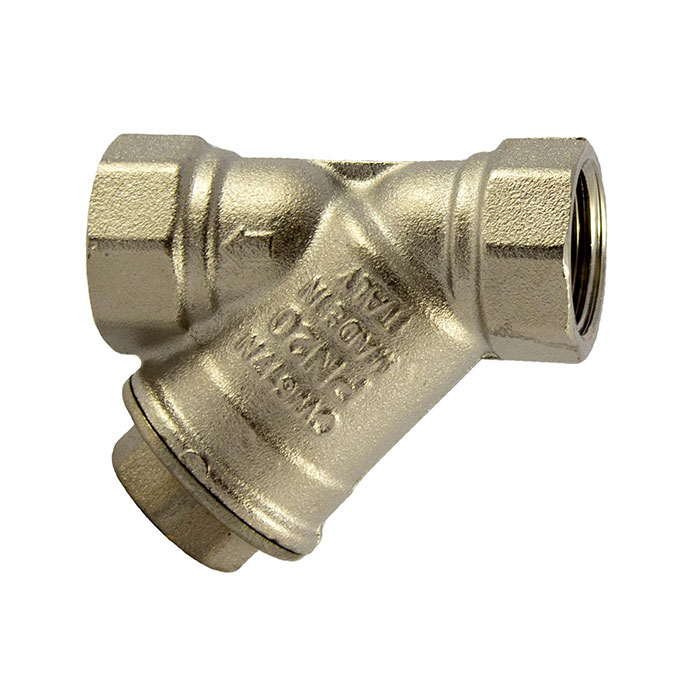

RIEGLER Strainer nickel-plated brass, G 3/8, DN 10, mesh width 0.05 mm
Type number: 60-2 N-0,05
EAN: 4047322547369
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Strainer, nickel-plated brass, strainer insert mesh size 0.05 mm, operating temp. -20 °C to 110 °C, G 3/8, DN 10, PN max. 20 bar
| Housing | Nickel-plated brass |
| Sealing material | NBR O-ring |
| Max. operating pressure | 20 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 110 °C |
| Head piece | Nickel-plated brass |

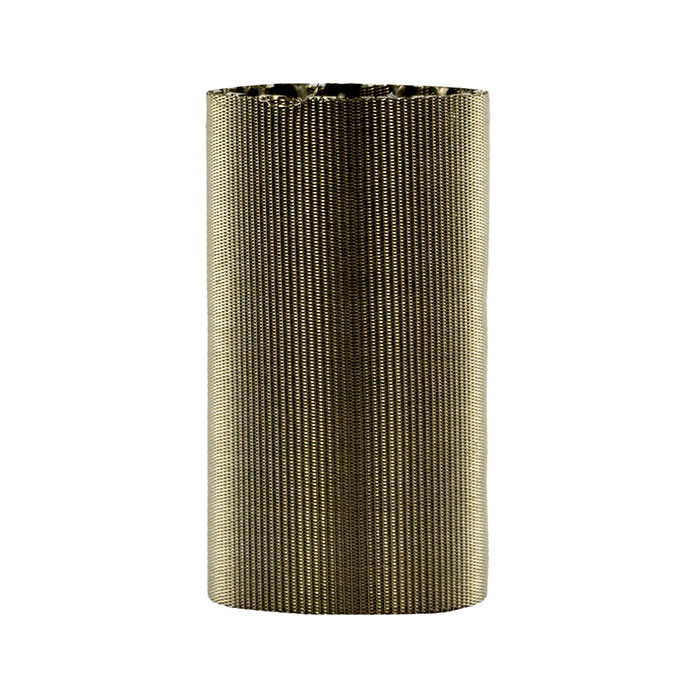

| Sieve insert | Stainless steel |
| Thread | G 3/8 |
| DN | 10 |
| SW 1 | 21 mm |
| SW 2 | 20 mm |
| Thread standard | G-thread to ISO 228-1, tolerance class B |
| Mesh size | 0.05 mm |
| C | 40 mm |
| L | 55 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
