RIEGLER Strainer nickel-plated brass, G 1 1/2, DN 40, mesh width 0.05 mm
Type number: 60-7 N-0,05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of nickel-plated brass, for industrial systems, max. 20 bar - Type 60-7 N-0.05
The RIEGLER strainer, nickel-plated brass, G 1 1/2, DN 40, MW 0.05 mm traps impurities in pipes and protects fittings. The housing is made of nickel-plated brass with NBR O-ring seals. Designed for a maximum operating pressure of 20 bar. The operating temperature is between -20 °C and 110 °C. Connection thread G 1 1/2 (G thread to ISO 228-1, tolerance class B) - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Housing | Nickel-plated brass |
| Sealing material | NBR O-ring |
| Max. operating pressure | 20 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 110 °C |
| Head piece | Nickel-plated brass |
| Sieve insert | Stainless steel |
| Thread | G 1 1/2 |
| DN | 40 |

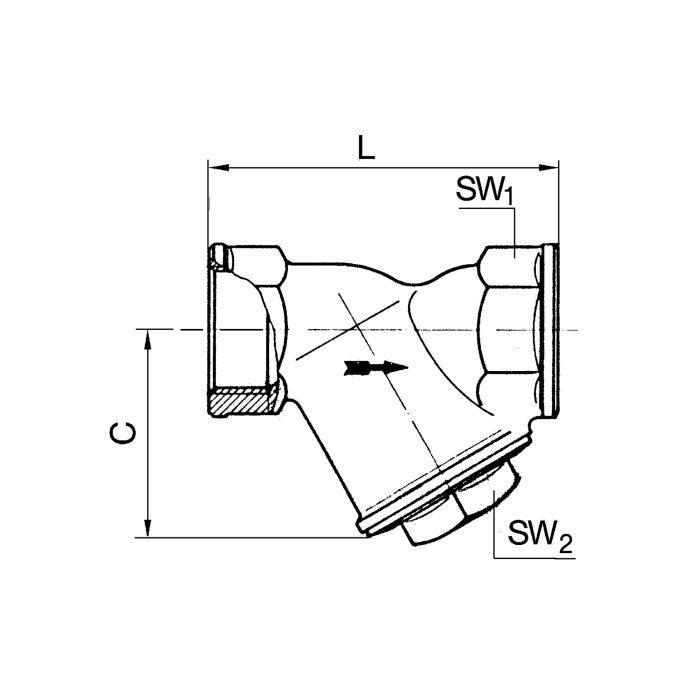

| SW 1 | 54 mm |
| SW 2 | 38 mm |
| Thread standard | G-thread to ISO 228-1, tolerance class B |
| Mesh size | 0.05 mm |
| C | 73 mm |
| L | 106 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141014] RIEGLER Strainer nickel-plated brass, G 1 1/4, DN 32, mesh width 0.05 mm](/web/image/product.template/208082/image_128/%5B141014%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%201%201-4%2C%20DN%2032%2C%20mesh%20width%200.05%20mm?unique=dd58574)
|
Type number: 60-6 N-0.05 |
33.37 € | |

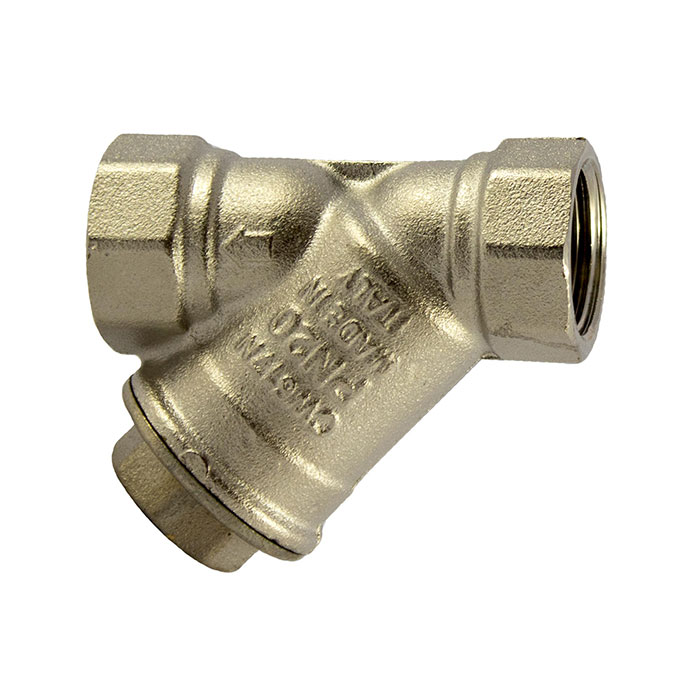

![[141011] RIEGLER Strainer nickel-plated brass, G 1/2, DN 15, mesh width 0.05 mm](/web/image/product.template/208079/image_128/%5B141011%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%201-2%2C%20DN%2015%2C%20mesh%20width%200.05%20mm?unique=898ab0a)
|
Type number: 60-3 N-0,05 |
9.96 € | |
![[141009] RIEGLER Strainer nickel-plated brass, G 1/4, DN 8, mesh width 0.05 mm](/web/image/product.template/208077/image_128/%5B141009%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%201-4%2C%20DN%208%2C%20mesh%20width%200.05%20mm?unique=5a27af1)
|
Type number: 60-1 N-0.05 |
9.51 € | |
![[141013] RIEGLER Strainer nickel-plated brass, G 1, DN 25, mesh width 0.05 mm](/web/image/product.template/208081/image_128/%5B141013%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%201%2C%20DN%2025%2C%20mesh%20width%200.05%20mm?unique=4377364)
|
Type number: 60-5 N-0,05 |
22.79 € | |
![[141016] RIEGLER Strainer nickel-plated brass, G 2, DN 50, mesh width 0.05 mm](/web/image/product.template/208084/image_128/%5B141016%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%202%2C%20DN%2050%2C%20mesh%20width%200.05%20mm?unique=c2aedb1)
|
Type number: 60-8 N-0,05 |
70.91 € | |
![[141012] RIEGLER Strainer nickel-plated brass, G 3/4, DN 20, mesh width 0.05 mm](/web/image/product.template/208080/image_128/%5B141012%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%203-4%2C%20DN%2020%2C%20mesh%20width%200.05%20mm?unique=84c5d95)
|
Type number: 60-4 N-0,05 |
15.32 € | |
![[141010] RIEGLER Strainer nickel-plated brass, G 3/8, DN 10, mesh width 0.05 mm](/web/image/product.template/208078/image_128/%5B141010%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%203-8%2C%20DN%2010%2C%20mesh%20width%200.05%20mm?unique=7287fec)
|
Type number: 60-2 N-0,05 |
9.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

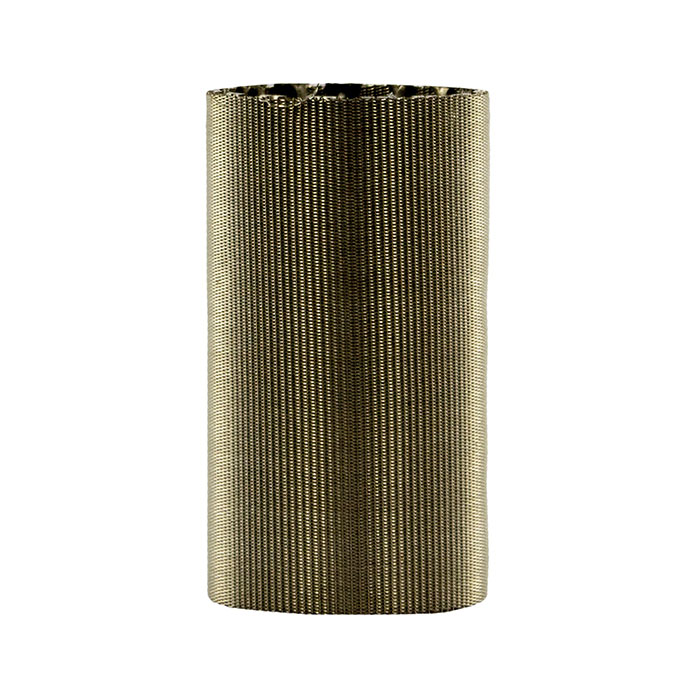

![[141024] RIEGLER Replacement sieve, strainers, size G 1 1/2, mesh width 0.05 mm](/web/image/product.template/208092/image_128/%5B141024%5D%20RIEGLER%20Replacement%20sieve%2C%20strainers%2C%20size%20G%201%201-2%2C%20mesh%20width%200.05%20mm?unique=ae2815c)
|
