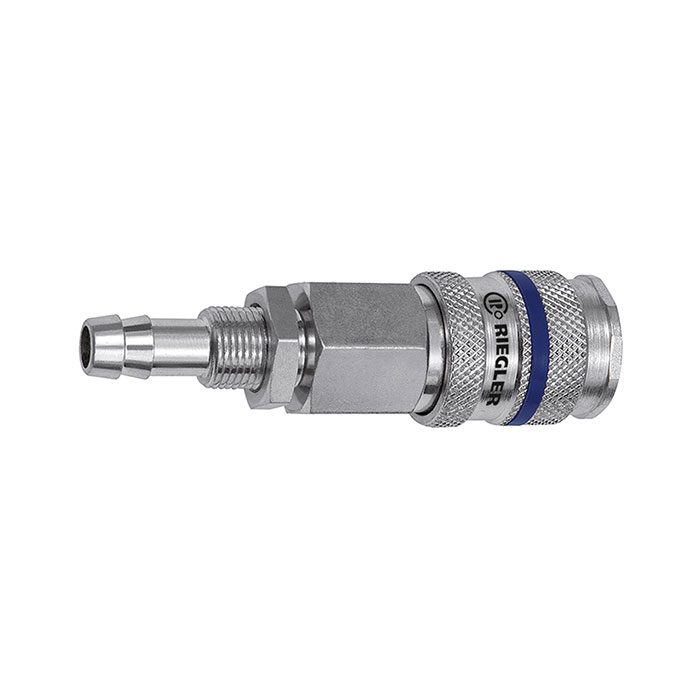

RIEGLER Quick-connect coupling I.D. 7.8, Steel, Sleeve I.D. 6, M12x1
Type number: 244.51-E
EAN: 4047322568180
Quick-release coupling NW 7.8, steel, spout LW 6, bulkhead thread M12x1, 0 - 35 bar, medium/ambient temp. -20 °C to 100 °C
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zinc die casting (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 19 mm |
| NW | 7.8 |
| Length | 79 mm |
| Bulkhead thread | M12x1 |
| Connection | LW 6 |
| Class name | PLUS |
