RIEGLER Quick-connect coupling I.D. 7.8, Steel, Sleeve I.D. 10, G 1/4
Type number: 244.53-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141531EAN :
4047322568203Weight :
0.10 kgQuick-release coupling NW 7.8, galvanized steel, spout LW 10, bulkhead thread G 1/4, 0 - 35 bar, medium/ambient temp. -20 °C to 100 °C
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zinc die casting (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 19 mm |
| NW | 7.8 |
| Length | 79 mm |
| Bulkhead thread | G 1/4 |
| Connection | LW 10 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

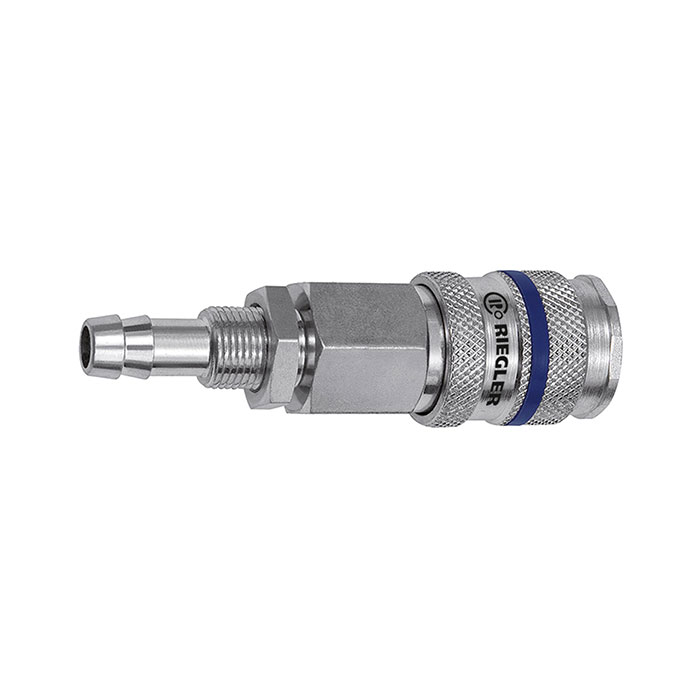

![[141529] RIEGLER Quick-connect coupling I.D. 7.8, Steel, Sleeve I.D. 6, M12x1](/web/image/product.template/208161/image_128/%5B141529%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20Sleeve%20I.D.%206%2C%20M12x1?unique=3a043d4)
|
Type number: 244.51-E |
13.58 € | |
![[141530] RIEGLER Quick-connect coupling I.D. 7.8, Steel, Sleeve I.D. 8, M12x1](/web/image/product.template/208162/image_128/%5B141530%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20Sleeve%20I.D.%208%2C%20M12x1?unique=c749472)
|
Type number: 244.52-E |
13.58 € | |
