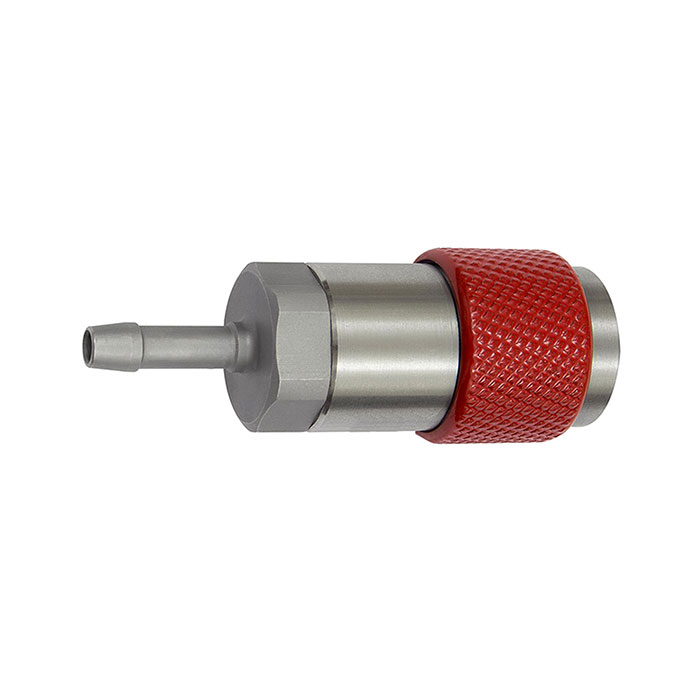

RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 8, red
Type number: 426.22-DREH-R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
141852EAN :
4047322565158Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.11 kgCaptive swivel safety coupling I.D. 6, ISO 6150 C, Steel, 2-stage, Sleeve I.D. 8, red, max. 25 bar, Temp. -15 °C to 200 °C
| Temperature range min. | -15 °C |
| Temperature range max. | 200 °C |
| Housing | Steel, QPQ treated |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 630 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel, painted in colour |
| Threaded piece | Galvanized steel |
| Valve | Polyphenylene sulfide (PPS) |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| Colour | red |
| NW | 6 |
| Length | 75 mm |
| Connection | LW 8 |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141892] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 10, blue](/web/image/product.template/211265/image_128/%5B141892%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%2010%2C%20blue?unique=fd3a00c)
|
Type number: 426.24-DREH-B |
34.91 € | |
![[141879] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 10, gray](/web/image/product.template/211252/image_128/%5B141879%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%2010%2C%20gray?unique=d9cf764)
|
Type number: 426.24-DREH-GR |
34.91 € | |
![[141853] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 10, red](/web/image/product.template/211226/image_128/%5B141853%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%2010%2C%20red?unique=4759513)
|
Type number: 426.24-DREH-R |
34.91 € | |
![[141866] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D.10, yellow](/web/image/product.template/211239/image_128/%5B141866%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.10%2C%20yellow?unique=c45e516)
|
Type number: 426.24-DREH-GE |
34.91 € | |
![[141890] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 6, blue](/web/image/product.template/211263/image_128/%5B141890%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%206%2C%20blue?unique=77e0dd9)
|
Type number: 426.21-DREH-B |
34.91 € | |

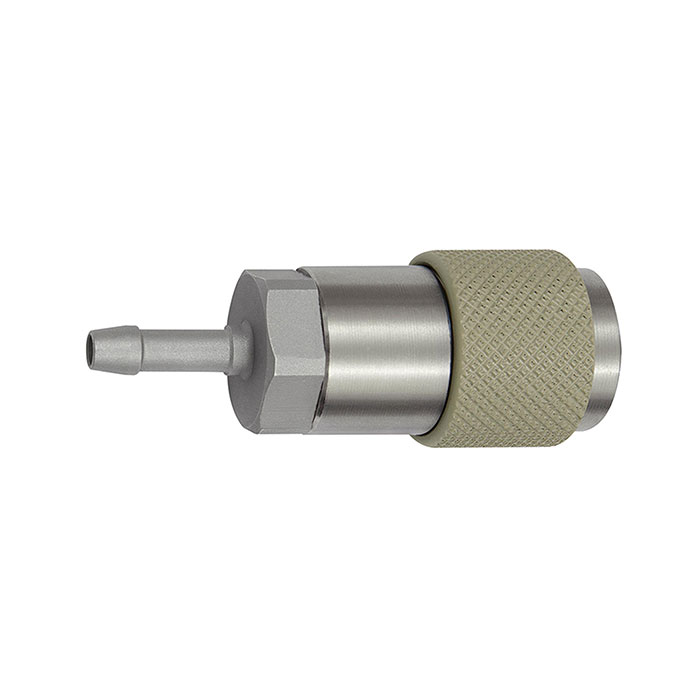

![[141877] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 6, gray](/web/image/product.template/211250/image_128/%5B141877%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%206%2C%20gray?unique=8e72063)
|
Type number: 426.21-DREH-GR |
34.91 € | |
![[141851] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 6, red](/web/image/product.template/211224/image_128/%5B141851%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%206%2C%20red?unique=639d8ce)
|
Type number: 426.21-DREH-R |
34.91 € | |
![[141864] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 6, yellow](/web/image/product.template/211237/image_128/%5B141864%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%206%2C%20yellow?unique=3e82d81)
|
Type number: 426.21-DREH-GE |
34.91 € | |

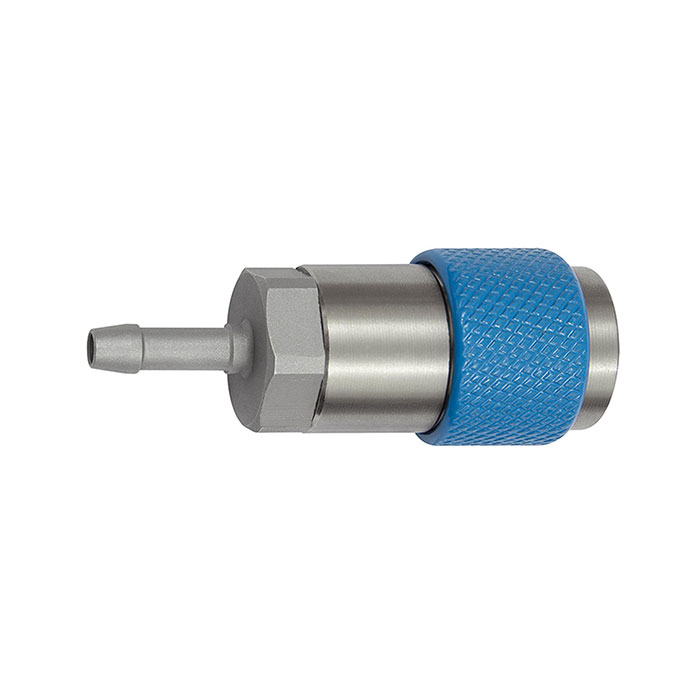

![[141891] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 8, blue](/web/image/product.template/211264/image_128/%5B141891%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20I.D.%208%2C%20blue?unique=2f0d622)
|
