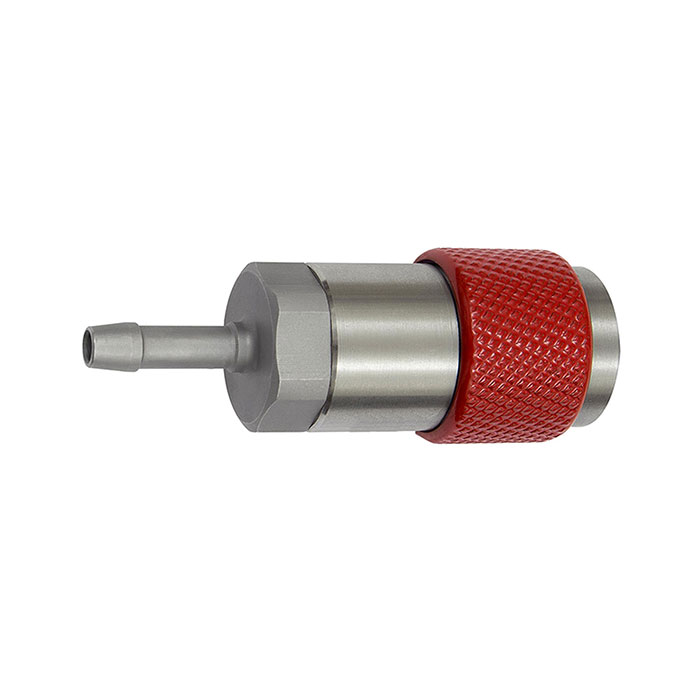

RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, I.D. 6, red
Type number: 426.21-DREH-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141851EAN :
4047322565141Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.11 kgRIEGLER Non-rotating safety coupling made of steel, QPQ treated, for compressed air supply, LW 6 - Type 426.21-DREH-R
The RIEGLER Unv. swivel safety coupling NW 6, ISO 6150 C, grommet LW 6, red prevents confusion due to color-coded coupling systems. The housing is made of steel, QPQ treated with FKM seals. The temperature range is between -15 °C and 200 °C. Connection thread LW 6 - suitable for common industry standards. The flow rate is 630 l/min (air) (at 6 bar and Δp = 0.5 bar). Color coding prevents confusion.
Field of application
Typical areas of application: Multi-conductor systems in production and laboratories.
| Temperature range min. | -15 °C |
| Temperature range max. | 200 °C |
| Housing | Steel, QPQ treated |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 630 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel, painted in colour |
| Threaded piece | Galvanized steel |
| Valve | Polyphenylene sulfide (PPS) |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| Colour | red |
| NW | 6 |
| Length | 75 mm |
| Connection | LW 6 |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
