RIEGLER Shut-off valve "SYNTESI", manual, BG2, without bushes, 3.5mm perforation
Type number: 5620V100
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Shut-off valve »SYNTESI«, manual, size 2, w/o bushings, exhaust G 1/4, punch hole 3.5 mm, p1 = max. 13 bar, T = -10…50°C, w/o sil.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 109 mm |
| Exhaust air | G 1/4 |
| Flow_2 | 4000 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Fuse hole | 3x Ø 3.5 mm |
| Series | Syntesi |
| F | 42.7 mm |
| Flow_1 | 3000 Nl/min |
| Vent flow rate at 6.3 | 2000 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144856] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 1/4, perforation 3.5 mm](/web/image/product.template/279986/image_128/%5B144856%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%201-4%2C%20perforation%203.5%20mm?unique=0b0ce89)
|
Type number: 5612V102 |
42.64 € | |
![[144855] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 1/8, perforation 3.5 mm](/web/image/product.template/279985/image_128/%5B144855%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%201-8%2C%20perforation%203.5%20mm?unique=638c149)
|
Type number: 5611V101 |
42.64 € | |
![[144857] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 3/8, perforation 3.5 mm](/web/image/product.template/279987/image_128/%5B144857%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%203-8%2C%20perforation%203.5%20mm?unique=829dec0)
|
Type number: 5613V103 |
42.64 € | |
![[144844] RIEGLER Shut-off valve "SYNTESI", manual, BG1, without bushings, 3.5mm perforation](/web/image/product.template/279984/image_128/%5B144844%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20without%20bushings%2C%203.5mm%20perforation?unique=d55efa0)
|
Type number: 5610V100 |
40.98 € | |
![[144860] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 1/2, perforation 3.5 mm](/web/image/product.template/279990/image_128/%5B144860%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%201-2%2C%20perforation%203.5%20mm?unique=4ffa876)
|
Type number: 5624V104 |
61.23 € | |
![[144862] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 1, perforation 3.5 mm](/web/image/product.template/279992/image_128/%5B144862%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%201%2C%20perforation%203.5%20mm?unique=15ec8a1)
|
Type number: 5626V106 |
70.06 € | |

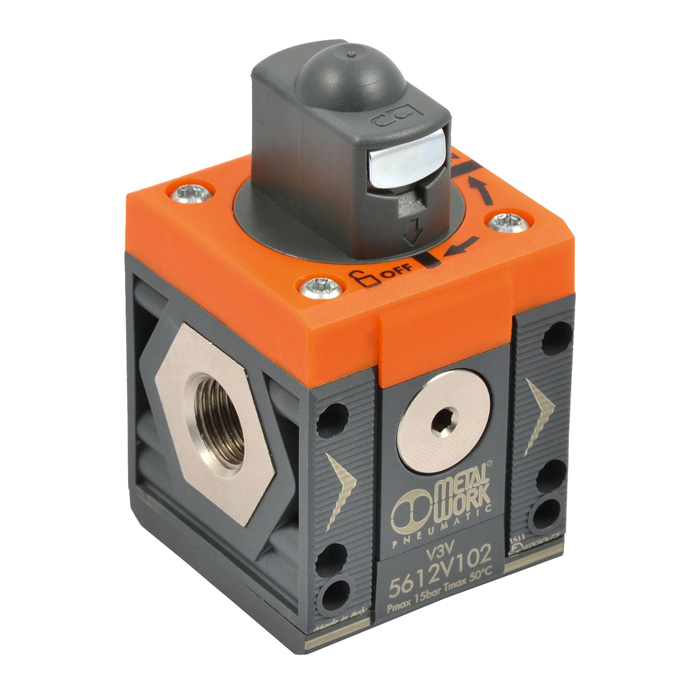

![[144861] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 3/4, perforation 3.5 mm](/web/image/product.template/279991/image_128/%5B144861%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%203-4%2C%20perforation%203.5%20mm?unique=73bc363)
|
