RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8, 12 V DC
Type number: 517.52.18.B.12D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
145857EAN :
4047322773720Category :
Valves Electropneumatically OperatedWeight :
0.56 kg5/2-way valve, electropneumatic, bistable, G 1/8, 12 V DC, p = 1 ? 10 bar, aluminum
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 5 |
| Actuation | bistable |
| Symbol | 36 |
| Tension | 12 V DC |
| Connection | G 1/8 |
| Flow 1 | 400 Nl/min |
| Flow 2 | 550 Nl/min |
| Class name | PLUS |
| Function | 45327 |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

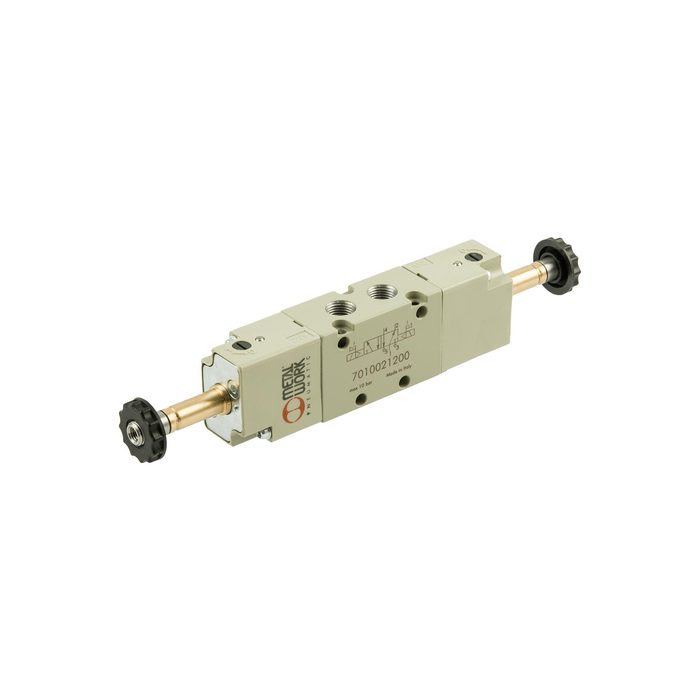

![[145707] RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8](/web/image/product.template/279334/image_128/%5B145707%5D%20RIEGLER%205-2-way%20valve%2C%20electropneumatic%2C%20bistable%2C%20G%201-8?unique=399906a)
|
Type number: 7010021200 |
90.74 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=25efba9)
|
Type number: 1920.9P |
1.48 € | |
![[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=31d27c7)
|
Type number: 400-514-41 |
9.87 € | |
