RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8

Price:

90.74 €

English (US)
  2. Shop
  3. Valves Electropneumatically Operated
  4. RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8
RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/4
RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/4
95.12 € 95.12 €
RIEGLER 5/2-way valve, diff. piston, electropn., bist., G 1/8, 230 V AC
RIEGLER 5/2-way valve, diff. piston, electropn., bist., G 1/8, 230 V AC
103.54 € 103.54 €

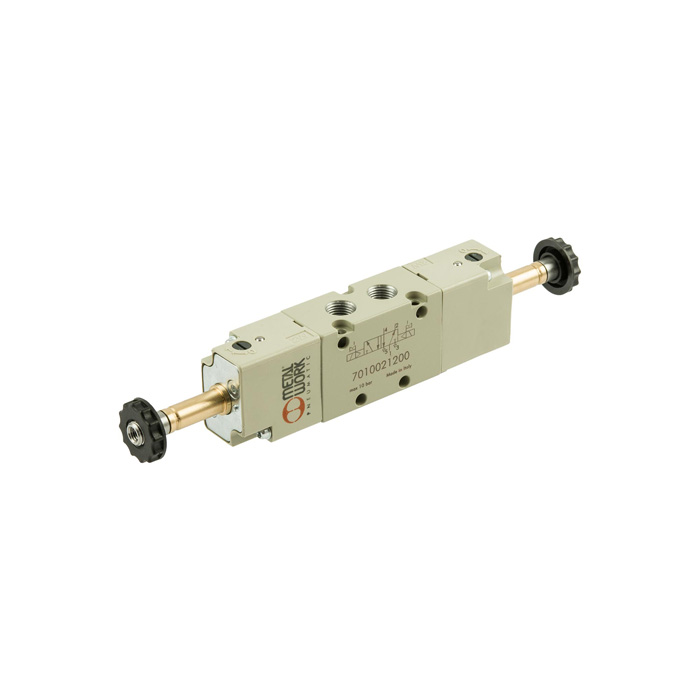

RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/8

https://www.filcom-technik.de/web/image/product.template/279334/image_1920?unique=399906a

Type number: 7010021200

90.74 € 90.74 EUR 90.74 € VAT Included

105.90 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145707

EAN :

4047322771788

Category :

Valves Electropneumatically Operated

Weight :

0.17 kg

5/2-way valve, electropneumatic, bistable, G 1/8, p = 1 ? 10 bar, T = -10 ? 60 °C, aluminum, without plug/coil

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 1 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 60 °C
Manual override resting
DN 5
Actuation bistable
Symbol 36
Connection G 1/8
Flow 1 400 Nl/min
Flow 2 550 Nl/min
Class name PLUS
Function 45327
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
