RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, FPM, forced, 24V DC

Price:

284.04 €

RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-10, NBR, direct, 230V AC
RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-10, NBR, direct, 230V AC
124.59 € 124.59 €
RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, NBR, forced, 230V AC
RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, NBR, forced, 230V AC
276.15 € 276.15 €

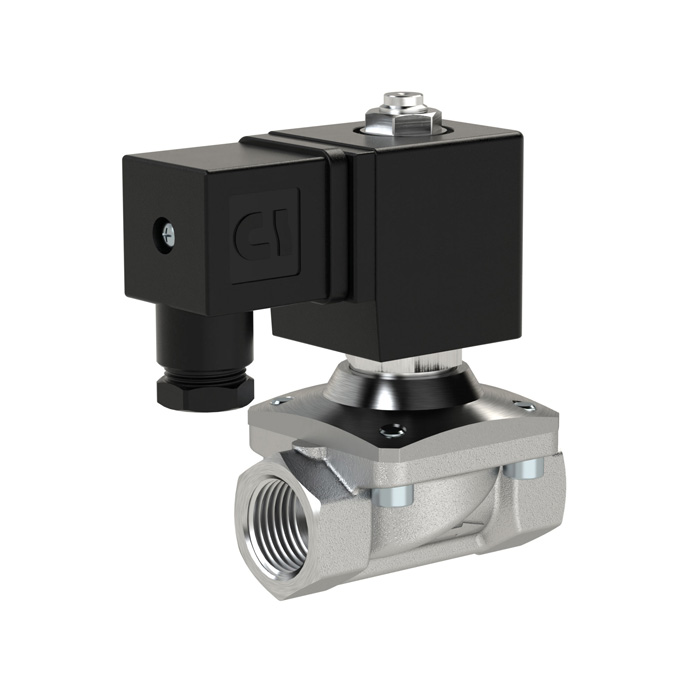

RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, FPM, forced, 24V DC

https://www.filcom-technik.de/web/image/product.template/275891/image_1920?unique=93c305b

Type number: 517.52.18.B.12D

EAN: 4047322776479

284.04 € 284.04 EUR 284.04 € VAT Included

367.21 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

146072

EAN :

4047322776479

Category :

Solenoid Valves

Weight :

0.80 kg

2/2-way solenoid valve, NC, ES, G 1/2, DN13, PN 0-12 bar, FPM, forced, 24V DC, med. temp. -10 to 100, ambient temp. -10 to 50
Housing Stainless steel
Sealing material FPM
Duty cycle 1
Protection class IP 65 (when using the cable plug)
Operating pressure min. 0 bar
Max. operating pressure 12 bar
Medium temperature min. -10 °C
Medium temperature max. 100 °C
Ambient temperature min. -10 °C
Ambient temperature max. 50 °C
Interior parts Stainless steel
Thread G 1/2
DN 13
Function normally closed (NC)
Tension 24 V DC
Class name PLUS
Voltage tolerance ± 10% according to VDE 0580
Power consumption 6,5W
Electrical connection Cable plug, industrial standard type A - EN 175301-803-A
Installation position Magnet preferably at the top
Valve seat Stainless steel
