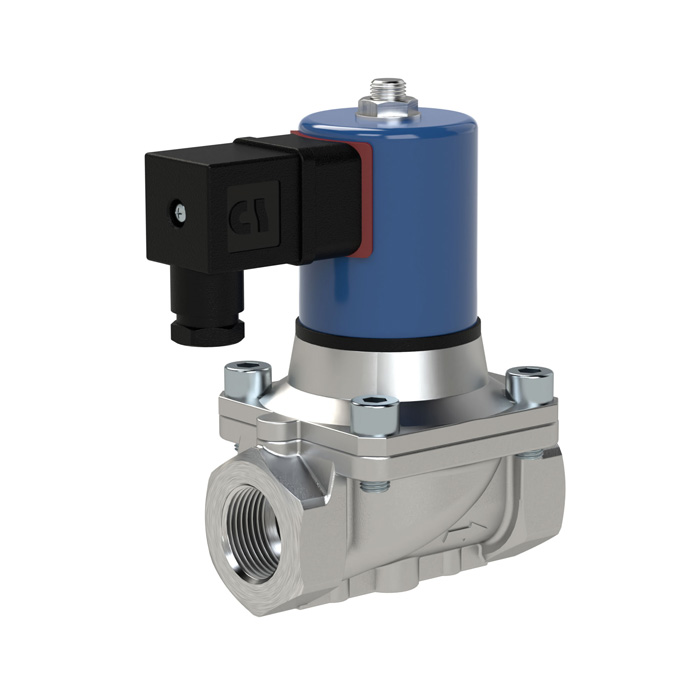

RIEGLER 2/2 MV, NC, ES, G3/4, DN20, PN 0-12, NBR, forced, 24V DC
Typennummer: MVA.34.ES.24D.N.RZ.20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2 MV made of stainless steel, for industrial systems, max. 12 bar - Type MVA.34.ES.24D.N.RZ.20
The RIEGLER 2/2 MV, NC, ES, G3/4, DN20, PN 0-12, NBR, forced, 24V DC switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel with NBR seals. The operating pressure range is 0 bar to 12 bar. The permissible medium temperature is between -10 °C and 100 °C. Connection thread G 3/4 - suitable for common industry standards. Operating voltage 24 V DC, power consumption 6.5 W, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel |
| Sealing material | NBR |
| Duty cycle | 1 |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Interior parts | Stainless steel |
| Thread | G 3/4 |
| DN | 20 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| Class name | PLUS |
| Voltage tolerance | ± 10% according to VDE 0580 |
| Power consumption | 6,5W |
| Electrical connection | Cable plug, industrial standard type A - EN 175301-803-A |
| Installation position | Magnet preferably at the top |
| Valve seat | Stainless steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146072] RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, FPM, forced, 24V DC](/web/image/product.template/275891/image_128/%5B146072%5D%20RIEGLER%202-2%20MV%2C%20NC%2C%20ES%2C%20G1-2%2C%20DN13%2C%20PN%200-12%2C%20FPM%2C%20forced%2C%2024V%20DC?unique=ebedb63)
|
Typennummer: MVA.12.ES.24D.F.RZ.13 |
314.62 € | |

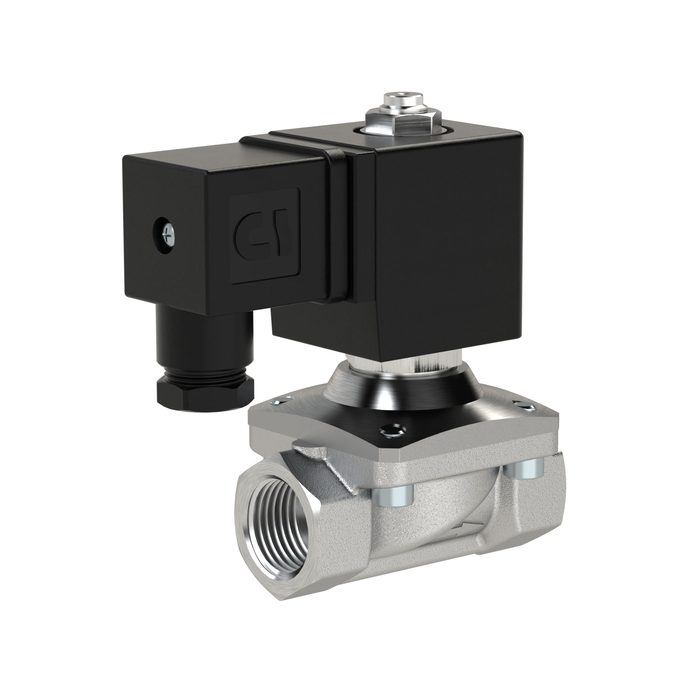

![[146074] Riegler 2/2 solenoid valve, NC, St.steel, G1/2, NBR, comb.opera., 24V DC](/web/image/product.template/264300/image_128/%5B146074%5D%20Riegler%202-2%20solenoid%20valve%2C%20NC%2C%20St.steel%2C%20G1-2%2C%20NBR%2C%20comb.opera.%2C%2024V%20DC?unique=7e7b74a)
|
