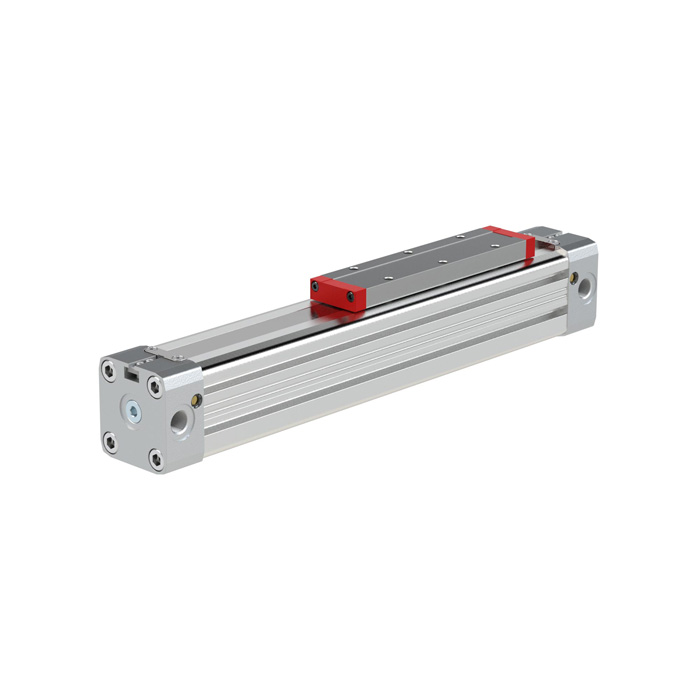

RIEGLER Piston rod l. Cyl. ZRL1F, Ø 16, stroke 275, ES screws
Typennummer: ZRL1F.160275.SX
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Piston rod-free cyl. ZRL1F, Ø 16, stroke 275, stainless steel screws, working pressure 0.5 - 8 bar, temperature -10 to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Filtered compressed air (max. 50 µm) |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 8 bar |
| Installation position | any |
| Sealing tapes | Stainless steel |
| Piston Ø | 16 mm |
| Function | double-acting |
| Stroke | 275 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Stand Material Compliance | 44621 |
| Air connection | 3-fold on both sides |
| Screws | Stainless steel |
| Load clutch | Rigid |
| Sealing material | Oil-resistant plastic (NBR) |
| RoHS Directive | 2011/65/EU 2015/863/EU 2018/741/EU |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136767] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 16, stroke 750, standard](/web/image/product.template/278512/image_128/%5B136767%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2016%2C%20stroke%20750%2C%20standard?unique=f74c918)
|
Type number: ZRL1F.160750 |
367.98 € | |
![[132508] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 1480, ES-screw, FPM](/web/image/product.template/278483/image_128/%5B132508%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%201480%2C%20ES-screw%2C%20FPM?unique=e23e17a)
|
Type number: ZRL1F.251480.SXF |
511.07 € | |
![[146096] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 500, proven load capacity, without mag.](/web/image/product.template/275905/image_128/%5B146096%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20500%2C%20proven%20load%20capacity%2C%20without%20mag.?unique=9e669df)
|
Typennummer: ZRL1F.250500.KBW.N |
437.90 € | |
![[146037] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 500, standard](/web/image/product.template/275881/image_128/%5B146037%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20500%2C%20standard?unique=1054ae0)
|
Typennummer: ZRL1F.250500 |
362.33 € | |
![[146361] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 565, standard, without magnet](/web/image/product.template/275911/image_128/%5B146361%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20565%2C%20standard%2C%20without%20magnet?unique=e0fb226)
|
Typennummer: ZRL1F.250565.N |
374.30 € | |
![[132457] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 935, ES-screw, FPM](/web/image/product.template/278482/image_128/%5B132457%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20935%2C%20ES-screw%2C%20FPM?unique=f58e907)
|
Type number: ZRL1F.250935.SXF |
460.01 € | |
![[132319] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 944, ES-screw, FPM](/web/image/product.template/278474/image_128/%5B132319%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20944%2C%20ES-screw%2C%20FPM?unique=4936e8b)
|
Type number: ZRL1F.250944.SXF |
454.66 € | |
![[130866] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 25, stroke 994, ES-screw, FPM](/web/image/product.template/273204/image_128/%5B130866%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20994%2C%20ES-screw%2C%20FPM?unique=08cb09b)
|
Type number: ZRL1F.250994.SXF |
459.91 € | |
![[147461] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 1000, standard](/web/image/product.template/284318/image_128/%5B147461%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%201000%2C%20standard?unique=7b77e43)
|
Typennummer: ZRL1F.321000 |
571.07 € | |
![[146668] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 1030, standard, ATEX](/web/image/product.template/275956/image_128/%5B146668%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%201030%2C%20standard%2C%20ATEX?unique=7e52669)
|
Typennummer: ZRL1F.321030.EX |
575.90 € | |
![[146293] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 1270, standard](/web/image/product.template/275908/image_128/%5B146293%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%201270%2C%20standard?unique=685af06)
|
Typennummer: ZRL1F.321270 |
604.60 € | |
![[145736] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 1550, standard](/web/image/product.template/279356/image_128/%5B145736%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%201550%2C%20standard?unique=ef9544f)
|
Type number: ZRL1F.321550 |
630.62 € | |
![[146256] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 515, ES-screw, FPM](/web/image/product.template/275906/image_128/%5B146256%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20515%2C%20ES-screw%2C%20FPM?unique=b0d82e1)
|
Typennummer: ZRL1F.320515.SXF |
529.18 € | |
![[146669] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 650, standard, ATEX](/web/image/product.template/275957/image_128/%5B146669%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20650%2C%20standard%2C%20ATEX?unique=95a01a1)
|
Typennummer: ZRL1F.320650.EX |
529.18 € | |
![[146768] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 700, standard](/web/image/product.template/275995/image_128/%5B146768%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20700%2C%20standard?unique=3509a7f)
|
Typennummer: ZRL1F.320700 |
533.79 € | |
![[146667] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 32, stroke 860, standard, ATEX](/web/image/product.template/275955/image_128/%5B146667%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20860%2C%20standard%2C%20ATEX?unique=367ac5a)
|
Typennummer: ZRL1F.320860.EX |
555.02 € | |
![[146357] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 40, stroke 1075, standard](/web/image/product.template/275910/image_128/%5B146357%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2040%2C%20stroke%201075%2C%20standard?unique=63e8e66)
|
Typennummer: ZRL1F.401075 |
730.18 € | |
![[146708] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 50, stroke 1200, standard, ATEX](/web/image/product.template/275959/image_128/%5B146708%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%201200%2C%20standard%2C%20ATEX?unique=b995ed3)
|
Typennummer: ZRL1F.501200.EX |
1,104.77 € | |
![[144831] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 50, stroke 2600, single. Air supply](/web/image/product.template/279981/image_128/%5B144831%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%202600%2C%20single.%20Air%20supply?unique=34f009c)
|
Type number: ZRL1F.502600.LE |
1,634.91 € | |
![[146266] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 50, stroke 515, ES-screw, FPM](/web/image/product.template/275907/image_128/%5B146266%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%20515%2C%20ES-screw%2C%20FPM?unique=87fd8d1)
|
Typennummer: ZRL1F.500515.SXF |
993.23 € | |
![[130011] RIEGLER Piston rod l. Cyl. ZRL1F, Ø50, stroke 830, single air supply, slow speed](/web/image/product.template/273178/image_128/%5B130011%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%9850%2C%20stroke%20830%2C%20single%20air%20supply%2C%20slow%20speed?unique=753fa2a)
|
Type number: ZRL1F.500830.LE.LL |
1,092.17 € | |
![[146041] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 50, stroke 920, proven load clutch](/web/image/product.template/275882/image_128/%5B146041%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%20920%2C%20proven%20load%20clutch?unique=e4b8781)
|
Typennummer: ZRL1F.500920.KBW |
1,185.99 € | |
![[144832] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 63, stroke 1200, single. Air supply](/web/image/product.template/279982/image_128/%5B144832%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2063%2C%20stroke%201200%2C%20single.%20Air%20supply?unique=115fa24)
|
Type number: ZRL1F.631200.LE |
1,312.75 € | |
![[146855] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 63, stroke 1200, standard](/web/image/product.template/275998/image_128/%5B146855%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2063%2C%20stroke%201200%2C%20standard?unique=24686b1)
|
Typennummer: ZRL1F.631200 |
1,221.57 € | |
![[146356] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 63, stroke 635, standard](/web/image/product.template/275909/image_128/%5B146356%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2063%2C%20stroke%20635%2C%20standard?unique=42d18a3)
|
Typennummer: ZRL1F.630635 |
1,025.05 € | |
![[144843] RIEGLER Piston rod l. Cyl. ZRL1F, Ø 63, stroke 700, single. Air supply](/web/image/product.template/279983/image_128/%5B144843%5D%20RIEGLER%20Piston%20rod%20l.%20Cyl.%20ZRL1F%2C%20%C3%98%2063%2C%20stroke%20700%2C%20single.%20Air%20supply?unique=9f97a6e)
|
Type number: ZRL1F.630700.LE |
1,138.83 € | |
![[129684] RIEGLER Rodless cylinder ZRL1F, Ø 16, stroke 100, standard](/web/image/product.template/273035/image_128/%5B129684%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2016%2C%20stroke%20100%2C%20standard?unique=9a5b614)
|
Type number: ZRL1F.160100 |
286.53 € | |
![[144945] RIEGLER Rodless cylinder ZRL1F, Ø 16, stroke 125, standard](/web/image/product.template/280035/image_128/%5B144945%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2016%2C%20stroke%20125%2C%20standard?unique=7cff4a5)
|
Type number: ZRL1F.160125 |
303.41 € | |
![[153018] RIEGLER Rodless cylinder ZRL1F, Ø 16, stroke 480, standard](/web/image/product.template/276005/image_128/%5B153018%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2016%2C%20stroke%20480%2C%20standard?unique=8f179cf)
|
Typennummer: ZRL1F.160480 |
339.76 € | |
![[169495] RIEGLER Rodless cylinder ZRL1F, Ø 16, stroke 530, standard](/web/image/product.template/276009/image_128/%5B169495%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2016%2C%20stroke%20530%2C%20standard?unique=789e94c)
|
Typennummer: ZRL1F.160530 |
345.28 € | |
![[129878] RIEGLER Rodless cylinder ZRL1F, Ø 16, stroke 640, standard](/web/image/product.template/273092/image_128/%5B129878%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2016%2C%20stroke%20640%2C%20standard?unique=6a49ee1)
|
Type number: ZRL1F.160640 |
361.59 € | |
![[162132] RIEGLER Rodless cylinder ZRL1F, Ø 25, stroke 1000, standard](/web/image/product.template/276008/image_128/%5B162132%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%201000%2C%20standard?unique=a7ddf1f)
|
Typennummer: ZRL1F.251000 |
414.95 € | |
![[129685] RIEGLER Rodless cylinder ZRL1F, Ø 25, stroke 100, standard](/web/image/product.template/273036/image_128/%5B129685%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20100%2C%20standard?unique=9220dae)
|
Type number: ZRL1F.250100 |
309.22 € | |
![[146900] RIEGLER Rodless cylinder ZRL1F, Ø 25, stroke 350, standard](/web/image/product.template/275999/image_128/%5B146900%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20350%2C%20standard?unique=a0821e2)
|
Typennummer: ZRL1F.250350 |
346.53 € | |
![[146660] RIEGLER Rodless cylinder ZRL1F, Ø 25, stroke 570, standard](/web/image/product.template/275954/image_128/%5B146660%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20570%2C%20standard?unique=511de59)
|
Typennummer: ZRL1F.250570 |
374.81 € | |
![[146659] RIEGLER Rodless cylinder ZRL1F, Ø 25, stroke 750, standard](/web/image/product.template/275953/image_128/%5B146659%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2025%2C%20stroke%20750%2C%20standard?unique=7981e13)
|
Typennummer: ZRL1F.250750 |
394.03 € | |
![[129686] RIEGLER Rodless cylinder ZRL1F, Ø 32, stroke 100, standard](/web/image/product.template/273037/image_128/%5B129686%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20100%2C%20standard?unique=982cb62)
|
Type number: ZRL1F.320100 |
437.36 € | |
![[129882] RIEGLER Rodless cylinder ZRL1F, Ø 32, stroke 1100, standard](/web/image/product.template/273094/image_128/%5B129882%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%201100%2C%20standard?unique=0e52ac8)
|
Type number: ZRL1F.321100 |
575.48 € | |
![[129883] RIEGLER Rodless cylinder ZRL1F, Ø 32, stroke 1350, standard](/web/image/product.template/273095/image_128/%5B129883%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%201350%2C%20standard?unique=d533d17)
|
Type number: ZRL1F.321350 |
614.54 € | |
![[139203] RIEGLER Rodless cylinder ZRL1F, Ø 32, stroke 750, standard](/web/image/product.template/278574/image_128/%5B139203%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20750%2C%20standard?unique=fdabb73)
|
Type number: ZRL1F.320750 |
532.61 € | |
![[139194] RIEGLER Rodless cylinder ZRL1F, Ø 32, stroke 850, standard](/web/image/product.template/278573/image_128/%5B139194%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20850%2C%20standard?unique=1b752dc)
|
Type number: ZRL1F.320850 |
552.42 € | |
![[129687] RIEGLER Rodless cylinder ZRL1F, Ø 40, stroke 100, standard](/web/image/product.template/273038/image_128/%5B129687%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2040%2C%20stroke%20100%2C%20standard?unique=ae59750)
|
Type number: ZRL1F.400100 |
533.56 € | |
![[129688] RIEGLER Rodless cylinder ZRL1F, Ø 50, stroke 100, standard](/web/image/product.template/273039/image_128/%5B129688%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%20100%2C%20standard?unique=08ed731)
|
Type number: ZRL1F.500100 |
710.83 € | |
![[146576] RIEGLER Rodless cylinder ZRL1F, Ø 50, stroke 5140, standard](/web/image/product.template/275936/image_128/%5B146576%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%205140%2C%20standard?unique=6e1f4c3)
|
Typennummer: ZRL1F.505140 |
2,321.20 € | |
![[130012] RIEGLER Rodless cylinder ZRL1F, Ø 50, stroke 950, LE, LL](/web/image/product.template/273179/image_128/%5B130012%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%20950%2C%20LE%2C%20LL?unique=ba263d6)
|
Type number: ZRL1F.500950.LE.LL |
1,114.93 € | |
![[129689] RIEGLER Rodless cylinder ZRL1F, Ø 63, stroke 100, standard](/web/image/product.template/273040/image_128/%5B129689%5D%20RIEGLER%20Rodless%20cylinder%20ZRL1F%2C%20%C3%98%2063%2C%20stroke%20100%2C%20standard?unique=6bdf433)
|
Type number: ZRL1F.630100 |
788.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[129638] RIEGLER REED sensor, 2-wire, 5m cable, 5-130V AC/DC, 6W, NO, LED](/web/image/product.template/273848/image_128/%5B129638%5D%20RIEGLER%20REED%20sensor%2C%202-wire%2C%205m%20cable%2C%205-130V%20AC-DC%2C%206W%2C%20NO%2C%20LED?unique=577c596)
|
Type number: RS.ZRL1.K5 |
22.06 € | |
![[129639] RIEGLER HALL sensor, 3-wire, M8 plug, 10-30V DC, 4W, NO, PNP, LED](/web/image/product.template/273849/image_128/%5B129639%5D%20RIEGLER%20HALL%20sensor%2C%203-wire%2C%20M8%20plug%2C%2010-30V%20DC%2C%204W%2C%20NO%2C%20PNP%2C%20LED?unique=e3be6b1)
|
Type number: HS.ZRL1.PNP.M8 |
36.19 € | |
![[129640] RIEGLER Foot mounting for rodless cylinder ZRL1 Ø16](/web/image/product.template/273850/image_128/%5B129640%5D%20RIEGLER%20Foot%20mounting%20for%20rodless%20cylinder%20ZRL1%20%C3%9816?unique=a70cdbf)
|
Type number: FB.ZRL1.16 |
30.49 € | |
![[129647] RIEGLER Intermediate support for rodless cylinders ZRL1 Ø16](/web/image/product.template/272999/image_128/%5B129647%5D%20RIEGLER%20Intermediate%20support%20for%20rodless%20cylinders%20ZRL1%20%C3%9816?unique=e93867c)
|
Type number: ZS.ZRL1.16 |
33.95 € | |
![[129653] RIEGLER Mobile center mounting G for piston rodl. Cyl. ZRL1 Ø16](/web/image/product.template/273005/image_128/%5B129653%5D%20RIEGLER%20Mobile%20center%20mounting%20G%20for%20piston%20rodl.%20Cyl.%20ZRL1%20%C3%9816?unique=e45c035)
|
Type number: MMBG.ZRL1.16 |
22.54 € | |
![[129655] RIEGLER Mobile center mounting W for piston rodl. Cyl. ZRL1 Ø16](/web/image/product.template/273007/image_128/%5B129655%5D%20RIEGLER%20Mobile%20center%20mounting%20W%20for%20piston%20rodl.%20Cyl.%20ZRL1%20%C3%9816?unique=11ebcfd)
|
Type number: MMBW.ZRL1.16 |
22.54 € | |
![[129661] RIEGLER Movable load clutch for piston rodl. Cyl. ZRL1F, Ø16](/web/image/product.template/273013/image_128/%5B129661%5D%20RIEGLER%20Movable%20load%20clutch%20for%20piston%20rodl.%20Cyl.%20ZRL1F%2C%20%C3%9816?unique=1b95bbc)
|
Type number: KBW.ZRL1F.16 |
62.44 € | |
![[129668] RIEGLER T-slot sensor adapter for piston rod cylinders Cylinder ZRL1](/web/image/product.template/273020/image_128/%5B129668%5D%20RIEGLER%20T-slot%20sensor%20adapter%20for%20piston%20rod%20cylinders%20Cylinder%20ZRL1?unique=de96e2a)
|
Type number: SA.ZRL1 |
6.51 € | |
![[129669] RIEGLER Sensor cable with M8 plug, straight, 5m, PVC](/web/image/product.template/273021/image_128/%5B129669%5D%20RIEGLER%20Sensor%20cable%20with%20M8%20plug%2C%20straight%2C%205m%2C%20PVC?unique=378a4c9)
|
Type number: SK.M8.5 |
27.37 € | |
![[129738] RIEGLER REED sensor, 2-wire, M8 plug, 5-50V AC/DC, 6W, NO, LED](/web/image/product.template/273047/image_128/%5B129738%5D%20RIEGLER%20REED%20sensor%2C%202-wire%2C%20M8%20plug%2C%205-50V%20AC-DC%2C%206W%2C%20NO%2C%20LED?unique=319088c)
|
Type number: RS.ZRL1.M8 |
23.24 € | |
![[129739] RIEGLER HALL sensor, 3-wire, 5 m cable, 10-30V DC, 4W, NO, PNP, LED](/web/image/product.template/273048/image_128/%5B129739%5D%20RIEGLER%20HALL%20sensor%2C%203-wire%2C%205%20m%20cable%2C%2010-30V%20DC%2C%204W%2C%20NO%2C%20PNP%2C%20LED?unique=9dcc8af)
|
Type number: HS.ZRL1.PNP.K5 |
34.77 € | |
