RIEGLER Rodless Cylinder ZRL1F, Ø 40, stroke 100, standard
Type number: ZRL1F.400100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ZRL1F Rodless Cylinder (Pneumatic Cylinder) for automation technology, for automation technology – Type ZRL1F.400100
The RIEGLER ZRL1F rodless cylinder, Ø 40, stroke 100, standard, enables long strokes in a compact installation space and precise linear movements. The seals are made of oil-resistant synthetic rubber (NBR). The permissible medium temperature ranges from -10 °C to 80 °C. G 1/4 connection—compatible with common industrial standards. Suitable for filtered compressed air (max. 50 µm). The compact design saves installation space while delivering full performance.
Scope of Application
Typical applications: Linear actuators, rodless cylinders, and rodless cylinders in compressed air and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Filtered compressed air (max. 50 µm) |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 8 bar |
| Installation position | any |
| Sealing tapes | Stainless steel |
| Piston Ø | 40 mm |
| Function | double-acting |
| Stroke | 100 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Stand Material Compliance | 44621 |
| Air connection | 3-fold on both sides |
| Screws | Steel 10.9 galvanized |
| Load clutch | Rigid |
| Sealing material | Oil-resistant plastic (NBR) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146357] RIEGLER Piston rod, left cylinder, ZRL1F, Ø 40, stroke 1075, standard](/web/image/product.template/275910/image_128/%5B146357%5D%20RIEGLER%20Piston%20rod%2C%20left%20cylinder%2C%20ZRL1F%2C%20%C3%98%2040%2C%20stroke%201075%2C%20standard?unique=c7111f6)
|
Type number: ZRL1F.401075 |
730.18 € | |
![[129686] RIEGLER Rodless Cylinder ZRL1F, Ø 32, stroke 100, standard](/web/image/product.template/273037/image_128/%5B129686%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20100%2C%20standard?unique=c7111f6)
|
Type number: ZRL1F.320100 |
437.36 € | |

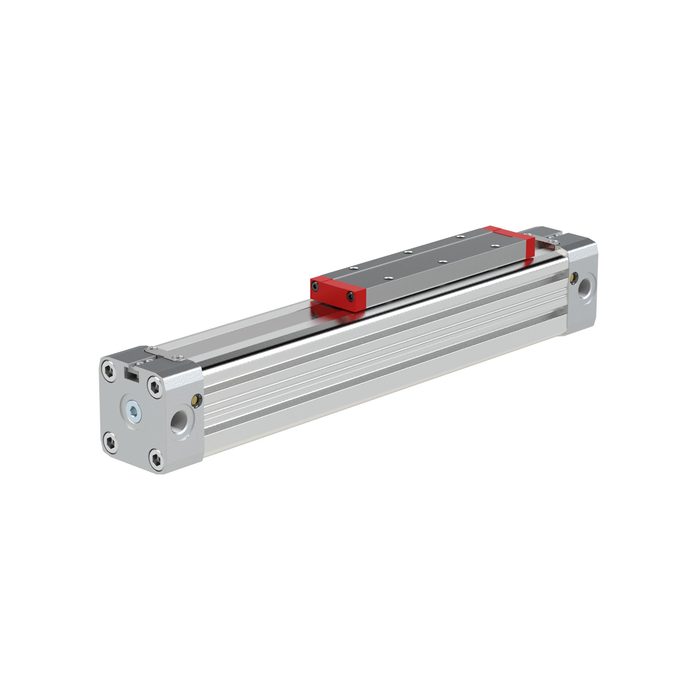

![[147748] RIEGLER rodless cylinder ZRL1F, Ø 32, stroke 100, standard, ATEX](/web/image/product.template/284430/image_128/%5B147748%5D%20RIEGLER%20rodless%20cylinder%20ZRL1F%2C%20%C3%98%2032%2C%20stroke%20100%2C%20standard%2C%20ATEX?unique=c7111f6)
|
Type number: ZRL1F.320100.EX |
466.90 € | |
![[129688] RIEGLER Rodless Cylinder ZRL1F, Ø 50, stroke 100, standard](/web/image/product.template/273039/image_128/%5B129688%5D%20RIEGLER%20Rodless%20Cylinder%20ZRL1F%2C%20%C3%98%2050%2C%20stroke%20100%2C%20standard?unique=c7111f6)
|
Type number: ZRL1F.500100 |
710.83 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

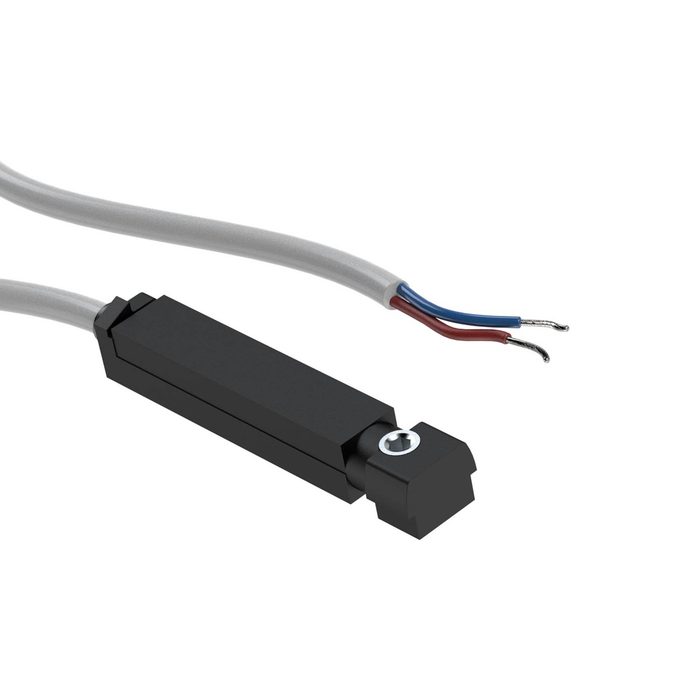

![[129638] RIEGLER REED sensor, 2-wire, 5-meter cable, 5–130 V AC/DC, 6 W, NO, LED](/web/image/product.template/273848/image_128/%5B129638%5D%20RIEGLER%20REED%20sensor%2C%202-wire%2C%205-meter%20cable%2C%205%E2%80%93130%20V%20AC-DC%2C%206%20W%2C%20NO%2C%20LED?unique=c7111f6)
|
Type number: RS.ZRL1.K5 |
22.06 € | |

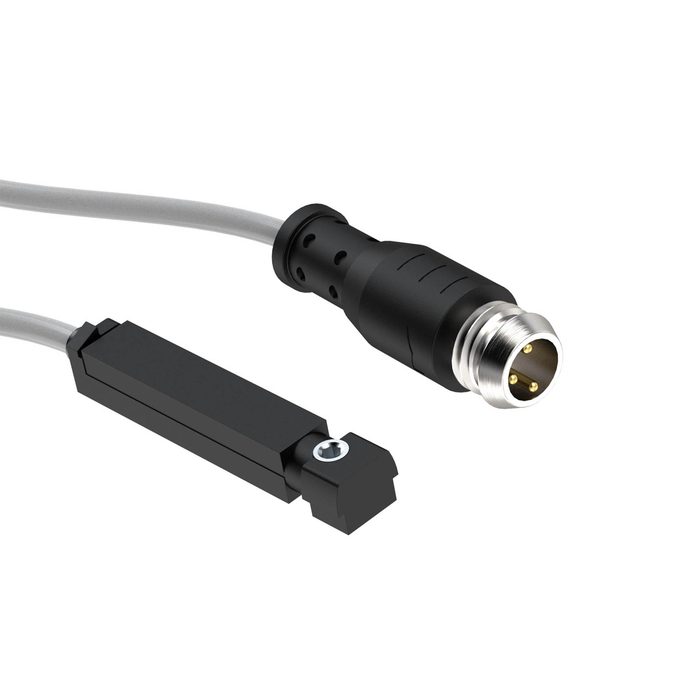

![[129639] RIEGLER HALL sensor, 3-wire, M8 plug, 10–30 V DC, 4 W, NO, PNP, LED](/web/image/product.template/273849/image_128/%5B129639%5D%20RIEGLER%20HALL%20sensor%2C%203-wire%2C%20M8%20plug%2C%2010%E2%80%9330%20V%20DC%2C%204%20W%2C%20NO%2C%20PNP%2C%20LED?unique=c7111f6)
|
Type number: HS.ZRL1.PNP.M8 |
36.19 € | |

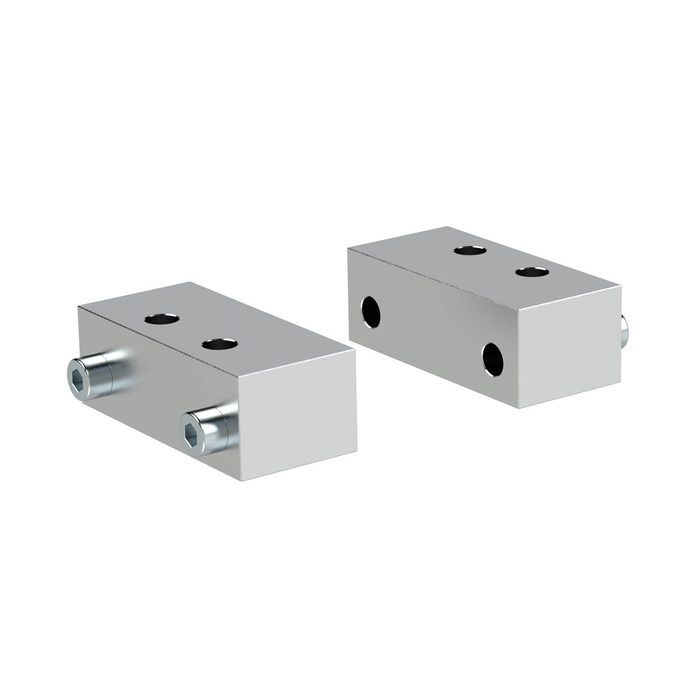

![[129644] RIEGLER Foot Mounting for Rodless Cylinder ZRL1 Ø40](/web/image/product.template/273854/image_128/%5B129644%5D%20RIEGLER%20Foot%20Mounting%20for%20Rodless%20Cylinder%20ZRL1%20%C3%9840?unique=c7111f6)
|
Type number: FB.ZRL1.40 |
48.87 € | |

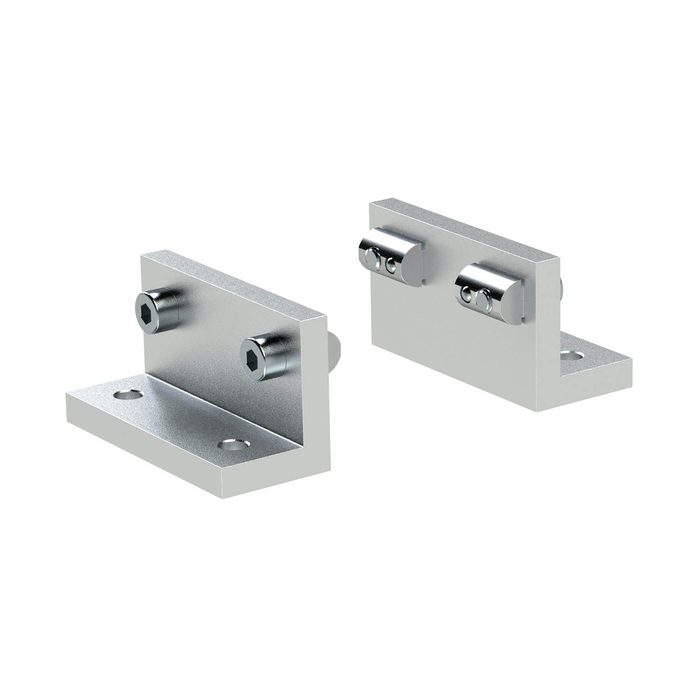

![[129650] RIEGLER Center Mounting for Rodless Cylinders ZRL1 Ø40](/web/image/product.template/273002/image_128/%5B129650%5D%20RIEGLER%20Center%20Mounting%20for%20Rodless%20Cylinders%20ZRL1%20%C3%9840?unique=c7111f6)
|
Type number: MB.ZRL1.40 |
41.83 € | |

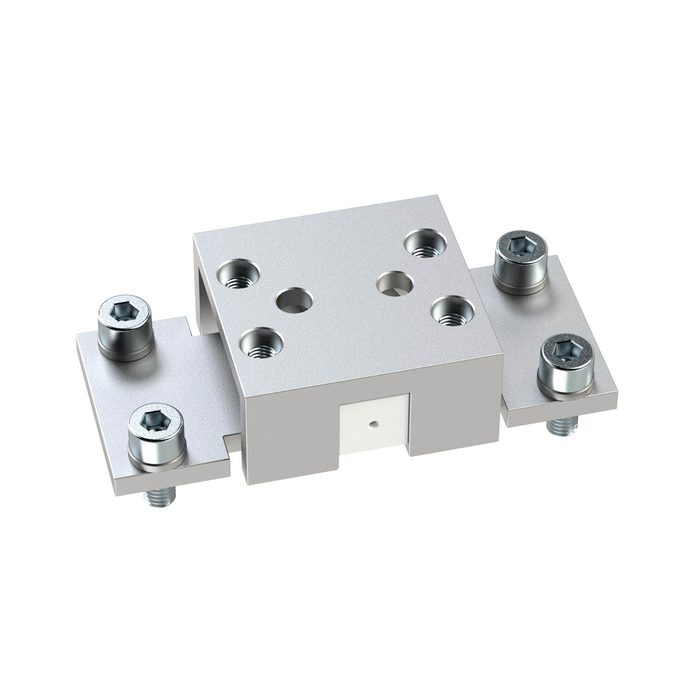

![[129664] RIEGLER Movable Load Clutch for Piston Rod Cylinder ZRL1F, Ø40](/web/image/product.template/273016/image_128/%5B129664%5D%20RIEGLER%20Movable%20Load%20Clutch%20for%20Piston%20Rod%20Cylinder%20ZRL1F%2C%20%C3%9840?unique=c7111f6)
|
Type number: KBW.ZRL1F.40 |
118.99 € | |

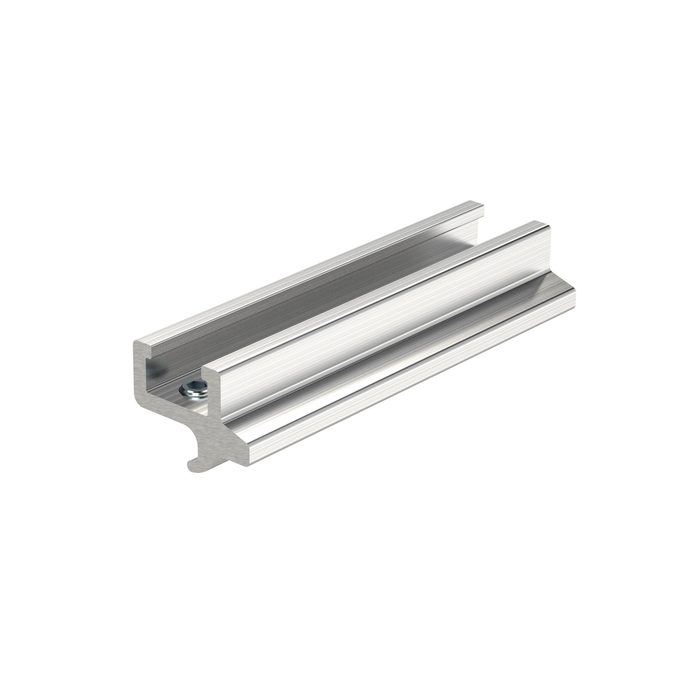

![[129668] RIEGLER T-slot sensor adapter for piston rod cylinders, Model ZRL1](/web/image/product.template/273020/image_128/%5B129668%5D%20RIEGLER%20T-slot%20sensor%20adapter%20for%20piston%20rod%20cylinders%2C%20Model%20ZRL1?unique=c7111f6)
|
Type number: SA.ZRL1 |
6.60 € | |

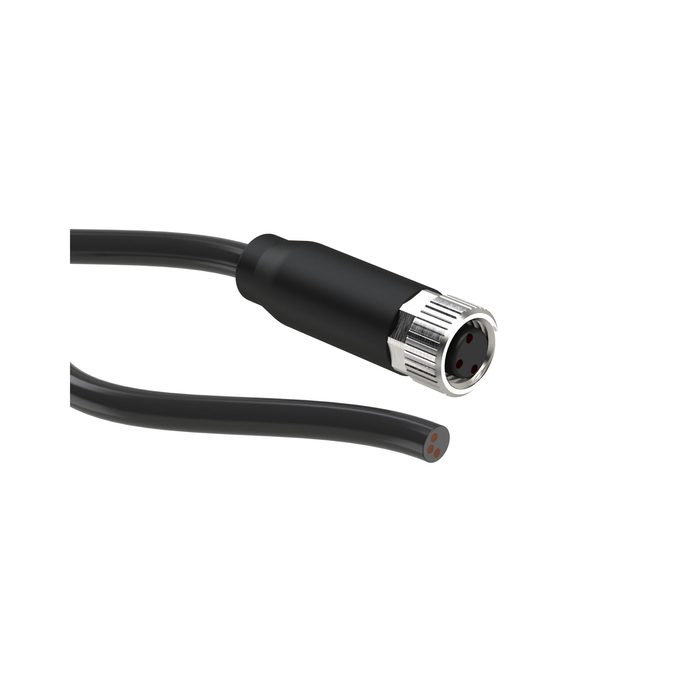

![[129669] RIEGLER Sensor Cable with M8 Plug, Straight, 5 m, PVC](/web/image/product.template/273021/image_128/%5B129669%5D%20RIEGLER%20Sensor%20Cable%20with%20M8%20Plug%2C%20Straight%2C%205%20m%2C%20PVC?unique=c7111f6)
|
