RIEGLER Precision pressure regulator »variobloc« Size 2, G 1, 0.1-3 bar
Typennummer: VRP 62
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Precision pressure regulator "variobloc", incl. pressure gauge, BG 2, G 1, PE max. 25 bar, med. ambient temp. max. 60 °C, control range 0.1 - 3 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 8000 l/min |
| Control range min. | 0.1 bar |
| Control range max. | 3 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 3 bar |
| BG | 2 |
| A | 125 mm |
| B | 134 mm |
| C | 33 mm |
| Intrinsic air consumption | Yes |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[149212] RIEGLER Precision pressure regulator »variobloc« Size 1, G 1/4, 0.1-3 bar](/web/image/product.template/210881/image_128/%5B149212%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%201%2C%20G%201-4%2C%200.1-3%20bar?unique=0c52190)
|
Typennummer: VRP 22 |
111.93 € | |
![[149214] RIEGLER Precision pressure regulator »variobloc« Size 1, G 1/4, 0.2-6 bar](/web/image/product.template/210882/image_128/%5B149214%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%201%2C%20G%201-4%2C%200.2-6%20bar?unique=69f545a)
|
Typennummer: VRP 23 |
103.64 € | |
![[149215] RIEGLER Precision pressure regulator »variobloc« Size 1, G 1/4, 0.5-10bar](/web/image/product.template/210883/image_128/%5B149215%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%201%2C%20G%201-4%2C%200.5-10bar?unique=a6540bc)
|
Typennummer: VRP 24 |
111.93 € | |
![[149216] RIEGLER Precision pressure regulator »variobloc« Size 1, G 3/8, 0.1-3 bar](/web/image/product.template/210884/image_128/%5B149216%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%201%2C%20G%203-8%2C%200.1-3%20bar?unique=9a4bd23)
|
Typennummer: VRP 32 |
94.63 € | |
![[149217] RIEGLER Precision pressure regulator »variobloc« Size 1, G 3/8, 0.2-6 bar](/web/image/product.template/210885/image_128/%5B149217%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%201%2C%20G%203-8%2C%200.2-6%20bar?unique=5588efc)
|
Typennummer: VRP 33 |
111.93 € | |
![[149218] RIEGLER Precision pressure regulator »variobloc« Size 1, G 3/8, 0.5-10bar](/web/image/product.template/210886/image_128/%5B149218%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%201%2C%20G%203-8%2C%200.5-10bar?unique=fe6de25)
|
Typennummer: VRP 34 |
94.63 € | |
![[149226] RIEGLER Precision pressure regulator »variobloc« Size 2, G 1, 0.2-6 bar](/web/image/product.template/210894/image_128/%5B149226%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%201%2C%200.2-6%20bar?unique=980dfd2)
|
Typennummer: VRP 63 |
181.43 € | |
![[149227] RIEGLER Precision pressure regulator »variobloc« Size 2, G 1, 0.5-10 bar](/web/image/product.template/210895/image_128/%5B149227%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%201%2C%200.5-10%20bar?unique=d82a595)
|
Typennummer: VRP 64 |
186.81 € | |
![[149219] RIEGLER Precision pressure regulator »variobloc« Size 2, G 1/2, 0.1-3 bar](/web/image/product.template/210887/image_128/%5B149219%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%201-2%2C%200.1-3%20bar?unique=fe6c166)
|
Typennummer: VRP 42 |
136.86 € | |
![[149220] RIEGLER Precision pressure regulator »variobloc« Size 2, G 1/2, 0.2-6 bar](/web/image/product.template/210888/image_128/%5B149220%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%201-2%2C%200.2-6%20bar?unique=222e9fd)
|
Typennummer: VRP 43 |
136.86 € | |

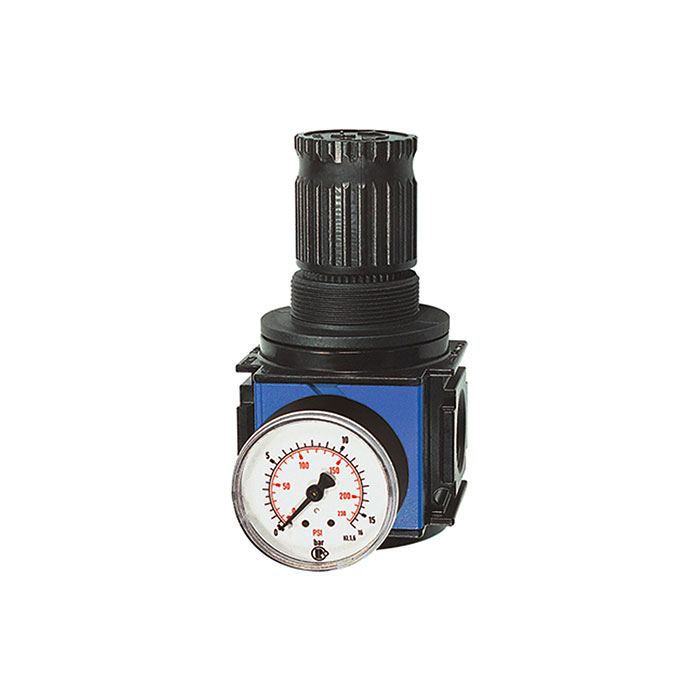

![[149221] RIEGLER Precision pressure regulator »variobloc« Size 2, G 1/2, 0.5-10bar](/web/image/product.template/210889/image_128/%5B149221%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%201-2%2C%200.5-10bar?unique=9181001)
|
Typennummer: VRP 44 |
136.86 € | |
![[149222] RIEGLER Precision pressure regulator »variobloc« Size 2, G 3/4, 0.1-3 bar](/web/image/product.template/210890/image_128/%5B149222%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%203-4%2C%200.1-3%20bar?unique=808e052)
|
Typennummer: VRP 52 |
136.86 € | |
![[149223] RIEGLER Precision pressure regulator »variobloc« Size 2, G 3/4, 0.2-6 bar](/web/image/product.template/210891/image_128/%5B149223%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%203-4%2C%200.2-6%20bar?unique=6ba2536)
|
Typennummer: VRP 53 |
136.86 € | |
![[149224] RIEGLER Precision pressure regulator »variobloc« Size 2, G 3/4, 0.5-10bar](/web/image/product.template/210892/image_128/%5B149224%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202%2C%20G%203-4%2C%200.5-10bar?unique=e89c9e7)
|
Typennummer: VRP 54 |
124.96 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100747] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 2](/web/image/product.template/140183/image_128/%5B100747%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=1156d1f)
|
Type number: 630/2-B |
13.52 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=8d5b23d)
|
Type number: VZ 719 |
13.99 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=72801c9)
|
Type number: VZ 104 |
14.01 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=e268184)
|
Type number: VZ 204 |
23.11 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=b590b58)
|
Type number: VZ 500 |
29.85 € | |
![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=7e4b167)
|
Type number: 443.3.94 |
2.36 € | |

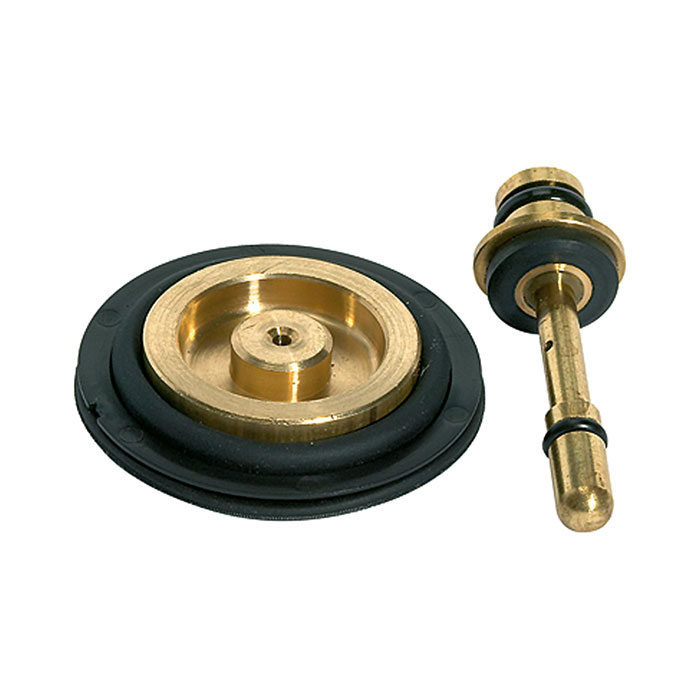

![[149571] RIEGLER Wear part set for precision pressure regulator »variobloc« Size 2](/web/image/product.template/210897/image_128/%5B149571%5D%20RIEGLER%20Wear%20part%20set%20for%20precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202?unique=58d0a04)
|
Typennummer: VZ 784 |
47.87 € | |
