RIEGLER Precision pressure regulator »variobloc« Size 2, G 1, 0.2-6 bar
Typennummer: VRP 63
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Precision pressure regulator "variobloc", incl. pressure gauge, BG 2, G 1, PE max. 25 bar, med. ambient temp. max. 60 °C, control range 0.2 - 6 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 8000 l/min |
| Control range min. | 0.2 bar |
| Control range max. | 6 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 6 bar |
| BG | 2 |
| A | 125 mm |
| B | 134 mm |
| C | 33 mm |
| Intrinsic air consumption | Yes |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100747] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 2](/web/image/product.template/140183/image_128/%5B100747%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=340f123)
|
Type number: 630/2-B |
13.29 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=9637b0b)
|
Type number: VZ 719 |
13.77 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=5e978ba)
|
Type number: VZ 104 |
13.99 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=e2a5598)
|
Type number: VZ 204 |
23.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=0a16531)
|
Type number: VZ 500 |
29.85 € | |

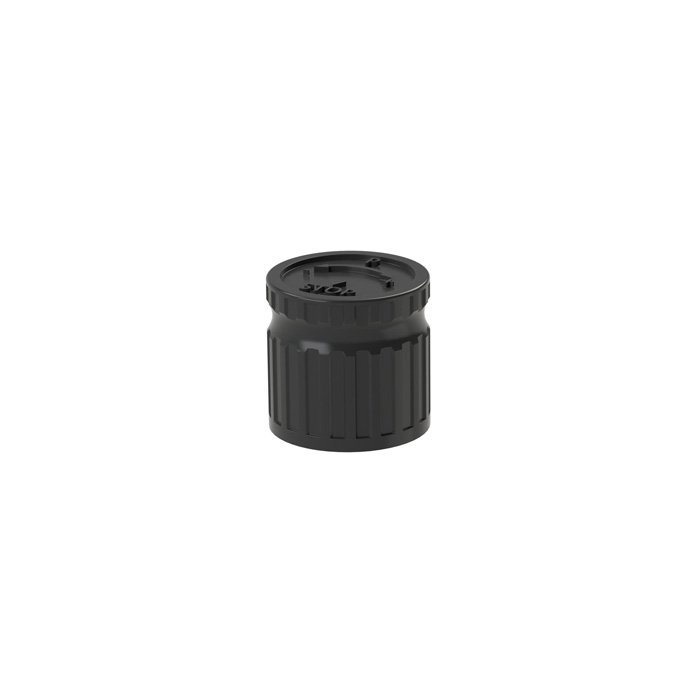

![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=7ef202f)
|
Type number: 443.3.94 |
2.34 € | |
![[149571] RIEGLER Wear part set for precision pressure regulator »variobloc« Size 2](/web/image/product.template/210897/image_128/%5B149571%5D%20RIEGLER%20Wear%20part%20set%20for%20precision%20pressure%20regulator%20%C2%BBvariobloc%C2%AB%20Size%202?unique=58d0a04)
|
Typennummer: VZ 784 |
34.46 € | |
