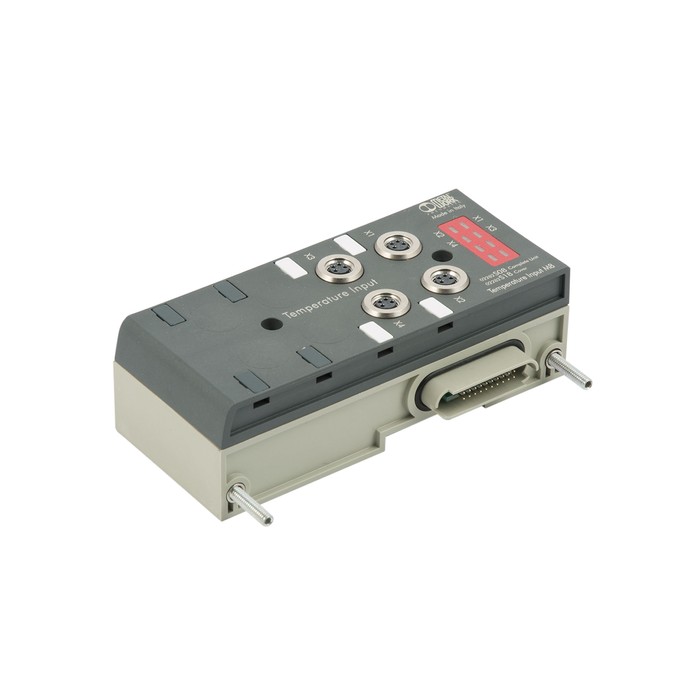

RIEGLER signal module EB 80, 4x M8 for temperature measurement
Type number: 02282S08
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Signal module for valve terminal EB 80, 4x M8 analog inputs for temperature measurement
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Electrical connection | 4x M8 Buchse, 4-polig |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Repeatability | ±0.03 % (ambient temperature 25 °C) |
| Execution | 4x M8 Eingänge, analog für Temperaturmessung |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 30 V DC |
| Supply voltage | 12 -10 % to 24 +25 % V DC |
| Max. permissible voltage | 30 V DC* |
| Module type | S |
| Module name | Signal module |
| Operating voltage sensors | depending on the supply voltage |
| Protective measures | not necessary, 30V supply voltage generated by the module itself |
| Diagnostics | one LED for each input and message to the master |
| Digital conversion resolution | 15 bit + prefix |
| Sensor type (RTD) Platinum (-200 to 850 C°C) | Pt100, Pt200, Pt500, Pt1000 (TK = 0.00385 and TK = 0.00391) |
| Sensor type (RTD) Nickel (-60 to 180 C°C) | Ni100, Ni120, Ni500, Ni1000 (TK = 0,00618) |
| Connection type (RTD) | 2-, 3- or 4-wire |
| Thermocouple types (TC) | J, E, T, K, N, S, B, R |
| Cold junction compensation for thermocouples, internal | with internal electrical sensor |
| Cold junction compensation for thermocouples, external | PT1000 sensor (connection to M8 thermocouple plug) |
| Max. Deviation compared to ambient temperature | ±0,5 % (TC) | ±0,06 % (RTD) |
| Max. Basic deviation (ambient 25 C°C) | TC ±0.4% | RTD 4-Dr. ±0.6°C (resolution 0.1) | ±0.2°C (resolution 0.01) |
| Address assignment | 2 bytes for each input - 8 bytes per module |
| Software linearization | RTD: Piecewise linear approximation. TC: ITS-90 scale. |
| Max. Length of the shielded cable for the connection | < 30 m |
| Temperature measuring range min. | -200 °C |
| Temperature measuring range max. | 800 °C |
| Cycle time (module) | 240 ms |
