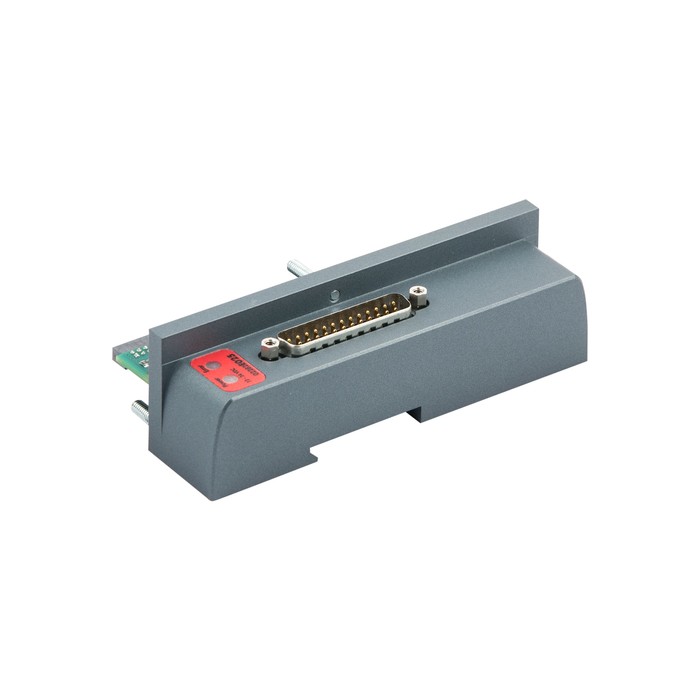

RIEGLER Electrical multi-pin plug connection EB 80, 25-pin
Type number: 02282E025
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Electrical multi-pin plug connection EB 80 made of aluminum, painted, for pneumatic control unit - type 02282E025
The RIEGLER electrical multi-pin plug connection EB 80, 25-pin bundles several pneumatic valves on a common base plate. The housing is made of aluminum, painted with NBR seals. The ambient temperature is between -10 °C and 50 °C. Power consumption max. 3.15 W, protection class IP 65. Central valve control with minimum installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Housing | Aluminium, lackiert |
| Sealing material | NBR |
| Series | EB 80 |
| Duty cycle | 1 |
| Power consumption | max. 3,15 W |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Execution | 25-polig |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| Module type | E |
| Module name | Electrical multi-pin plug connection |
| Protective measures | System: overload, outputs: short circuit |
| Diagnostics | ERROR (red) and OUT on "Electr. connection E", LED on valve |
| Diagnostic signals | Short circuit, no control signal, impermissible operating voltage |
| Switching polarity | configurable PNP or NPN |
| Power consumption without valve actuators | 0.1 W for module "El. connection E" + 0.25 W per "Base plate B" |
| Power consumption per control, switching on (speed up) | 3 W for 15 ms |
| Number of valves, maximum | 21, depending on number of controls and type of base plates |
| Max. Number of simultaneous valve actuations when switching on | 24 V DC: 21 / 12 V DC: depending on voltage drop |
| Max. permissible current, continuous operation | 6 A |
| Max. permissible current, short-term | 9 A |
| Maximum number of valve controls | 21 |
| Current, maximum permissible at 24 V DC | 3 A |
| Current, maximum permissible at 12 V DC | 6 A |
| Power consumption per control, hold (after speed up) | 0.3 W |
