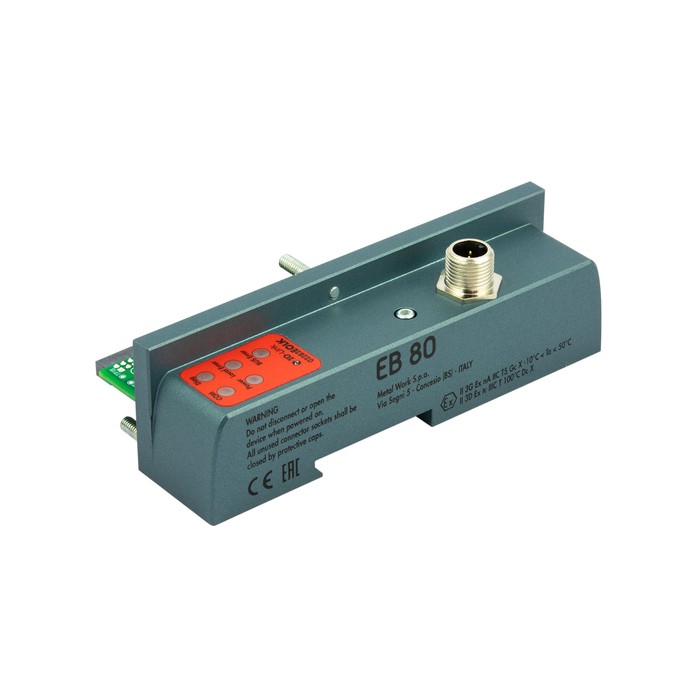

RIEGLER Electrical fieldbus connection EB 80, IO-Link 64 OUT
Type number: 02282E0LK
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Electrical fieldbus connection for valve terminal EB 80, IO-Link 64 OUT
| Housing | Aluminium, lackiert |
| Sealing material | NBR |
| Series | EB 80 |
| Duty cycle | 1 |
| Power consumption | max. 3,15 W |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Execution | IO-Link 64 OUT |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| IO-Link power supply (L+L - Bus IN connector) | min. 18 V DC, max. 30 V DC |
| Current consumption of the bus module | see IO-Link 64 OUT operating instructions |
| Maximum number of nodes | 40 valve base plates + 16 dig. On/Off + 4 an. On/Off |
| Value of a data bit | 0 = not active, 1 = active |
| Fieldbus connection | M12 plug, A-coding - port class A - port class B |
| Module type | E |
| Module name | Electrical fieldbus connection |
| Protective measures | Module: Overload, reverse polarity | Outputs: Overload, short circuit |
| Diagnostics | IO-Link: LED + software info, outputs: LED + status bytes |
| Diagnostic signals | SC, coil def., UV/OV, module comm., switching status, dev. config. |
| Power consumption without valve actuators | 4 W for module "el. Connection -E" + 0.25 W per "base plate -B" |
| Power consumption per control, switching on (speed up) | 3 W for 15 ms |
| Max. Number of simultaneous valve actuations when switching on | 38 (larger number possible with "intermediate module-M") |
| Fieldbus | IO-Link version 1.1 |
| Communication speed | 230.4 Kbps (COM3) |
| Manufacturer ID / Device ID | 1046 (hex 0x0416) / 64 (hex 0x000040) |
| Process data length | 1 byte of input / 8 bytes of output |
| Maximum number of valve controls | 64 |
| Max. permissible current for valve control, continuous operation | 4 A |
| Max. permissible current for valve actuation, short-term | 6 A |
| Max. permissible current for bus/signal supply, continuous operation | 4 A |
| Max. permissible current for bus/signal supply, short-term | 6 A |
| Minimum cycle time | 2.8 ms |
| Power consumption per control, hold (after speed up) | 0.3 W |
