RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, G 1/8 IT
Typennummer: 243.08/4-ES-E
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Quick-release coupling NW 2.7, stainless steel 1.4305, G 1/8 female thread, operating pressure 0-35 bar, medium/ambient temp. -20 °C to 200 °C
| Housing | Stainless steel 1.4305 |
| Sealing material | FPM |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 120 l/min (air) |
| Ball | Stainless steel 1.4034 |
| Spring | Stainless steel 1.4310 |
| Valve body | Stainless steel 1.4305 |
| Sleeve | Stainless steel 1.4305 |
| Snap ring | Stainless steel 1.4310 |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 12 mm |
| NW | 2.7 |
| Length | 28 mm |
| Connection | G 1/8 FEMALE THREAD |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

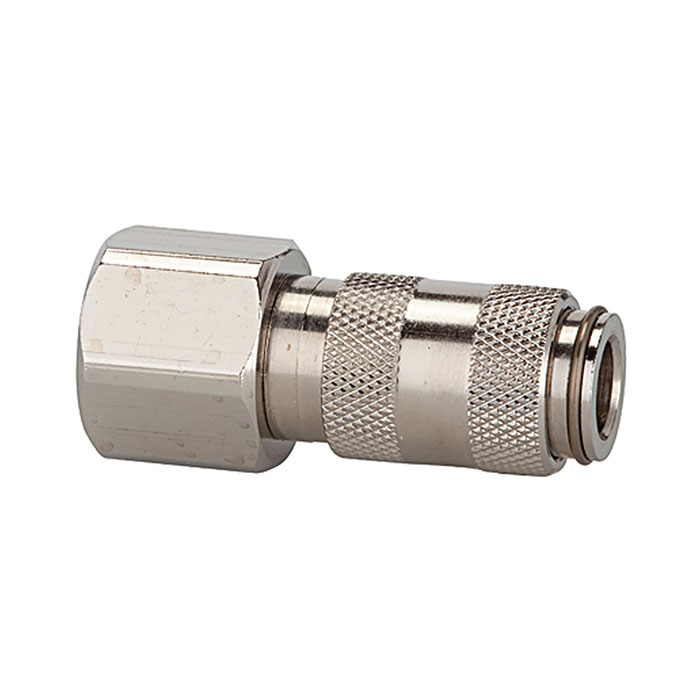

![[156206] RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, M5 IT](/web/image/product.template/213271/image_128/%5B156206%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20St.%20steel%201.4305%2C%20M5%20IT?unique=78385a3)
|
