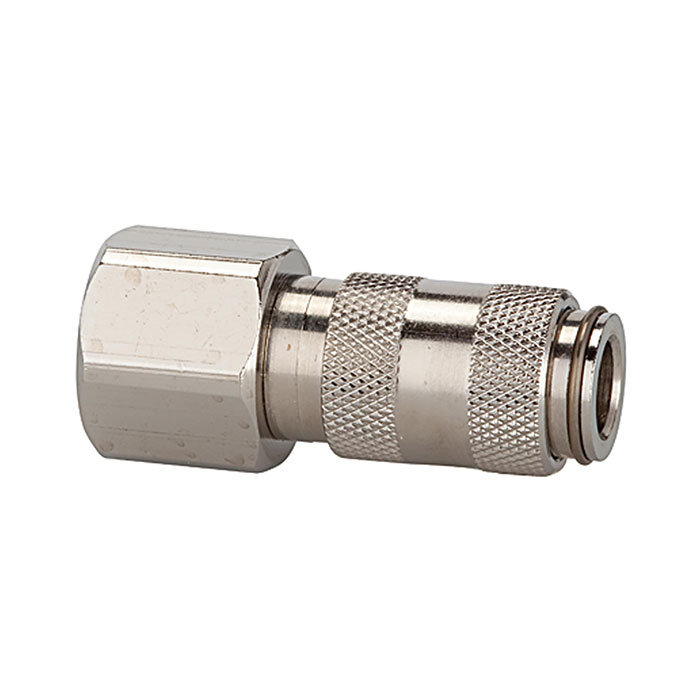

RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, M5 IT

Price:

69.82 €

RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, M5 ET
RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, M5 ET
69.82 € 69.82 €
RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, Sleeve I.D. 3
RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, Sleeve I.D. 3
75.78 € 75.78 €

RIEGLER Quick-connect coupling I.D. 2.7, St. steel 1.4305, M5 IT

https://www.filcom-technik.de/web/image/product.template/213271/image_1920?unique=98c56c4

Type number: 243.08/3-ES-E

EAN: 4047322625203

69.82 € 69.82000000000001 EUR 69.82 € VAT Included

90.26 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

156206

EAN :

4047322625203

Category :

Standard Couplings

Weight :

0.10 kg

Quick-release coupling NW 2.7, stainless steel 1.4305, M5 female thread, operating pressure 0 - 35 bar, medium/ambient temp. -20 °C to 200 °C

Housing Stainless steel 1.4305
Sealing material FPM
Flow rate measurement at 6 bar and Î"<sub>p</sub> = 1 bar
Medium temperature min. -20 °C
Medium temperature max. 200 °C
Ambient temperature min. -20 °C
Ambient temperature max. 200 °C
Flow rate 120 l/min (air)
Ball Stainless steel 1.4034
Spring Stainless steel 1.4310
Valve body Stainless steel 1.4305
Sleeve Stainless steel 1.4305
Snap ring Stainless steel 1.4310
Operating pressure 0 - 35 bar, max. static operating pressure (without pulsation)
SW 9 mm
NW 2.7
Length 26 mm
Connection M5 IG
Class name STAINLESS STEEL
