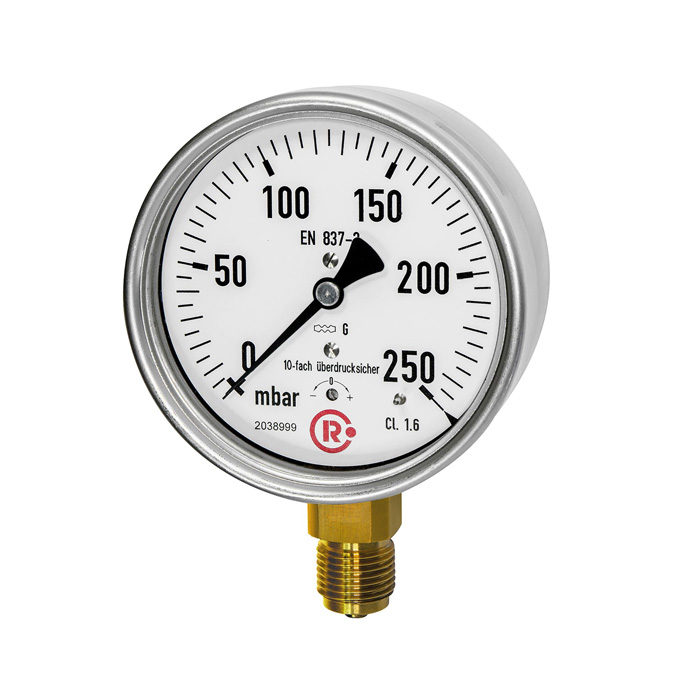

RIEGLER Capsule pressure gauge, stainless steel G1/4 radial bottom, 0-250mbar, Ø63
Type number: ZRL1S.320100
EAN: 4047322699310
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Capsule pressure gauge, 10-times overloadable, stainless steel housing, radial bottom connection, G1/4, grade 1.6, measuring range 0-250 mbar, Ø 63
| Housing | CrNi steel |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Area of application | for gaseous, dry and non-aggressive media |
| Measuring element | Copper alloy |
| Pointer movement | Brass |
| Diameter | 63 mm |
| Connection | G 1/4 |
| Graduation value in the mbar range | 10 mbar |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Measuring range min. mbar | 0 |
| Measuring range max. mbar | 250 |
| Connection position | radial bottom |
| Class name | PLUS |
| Viewing window | Instrument glass |
| Process connection material | Brass |
