RIEGLER Autogenschlauch, Acetylen, EPDM/SBR, Schlauch-ø 16x9, Länge 50 m
Typennummer: 180/3-R-50
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Oxyfuel hose for welding, max. 20 bar - Type 180/3-R-50
The RIEGLER oxyfuel hose, acetylene, EPDM/SBR, hose ø 16x9, length 50 m supports professional welding and soldering work with pressure regulators and accessories. Designed for a maximum operating pressure of 20 bar. The temperature range is between -20 °C and 60 °C. Hose Ø 9 mm (inside) / 16 mm (outside). Precise gas regulation for clean weld seams.
Field of application
Typical areas of application: Autogenous welding, brazing and gas-oxygen welding.
| Outer ceiling | EPDM/SBR grooved |
| Max. operating pressure | 20 bar |
| Bending radius min. | 90 mm |
| Inlays | Textile braided or spiralized |
| Colour | red |
| Gas type | Acetylenes |
| Roll length | 50 m |
| Outer hose Ø | 16 mm |
| Hose Ø inside | 9 mm |
| Soul | EPDM/SBR, black, smooth |
| Temperature range max. | 60 °C |
| Temperature range min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[205657] RIEGLER Autogenschlauch, Acetylen, EPDM/SBR Schlauch-ø 13,3x6,3 Länge 50m](/web/image/product.template/267951/image_128/%5B205657%5D%20RIEGLER%20Autogenschlauch%2C%20Acetylen%2C%20EPDM-SBR%20Schlauch-%C3%B8%2013%2C3x6%2C3%20L%C3%A4nge%2050m?unique=a102431)
|
Typennummer: 180/2-R-50 |
165.02 € | |
![[205658] RIEGLER Autogenschlauch, Sauerstoff, EPDM/SBR, Schlauch-ø 13,3x6,3, 50m](/web/image/product.template/267952/image_128/%5B205658%5D%20RIEGLER%20Autogenschlauch%2C%20Sauerstoff%2C%20EPDM-SBR%2C%20Schlauch-%C3%B8%2013%2C3x6%2C3%2C%2050m?unique=978c881)
|
Typennummer: 180/2-B-50 |
165.02 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

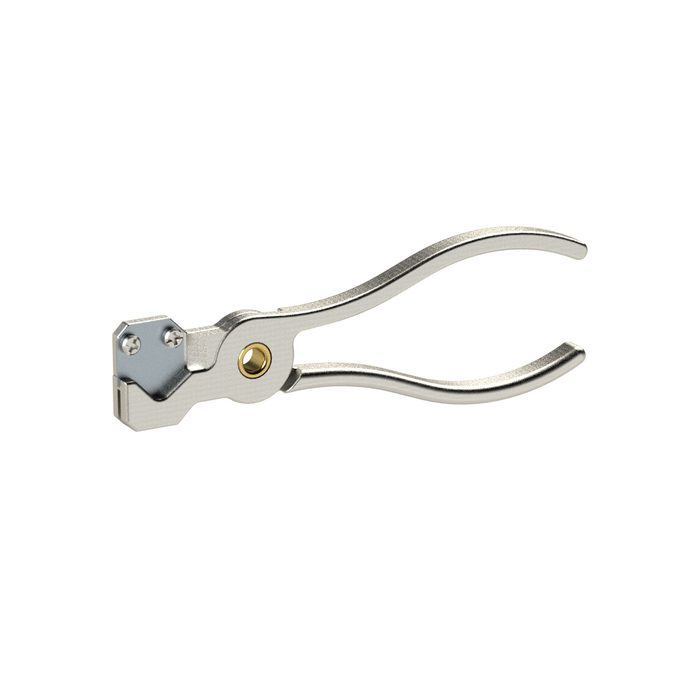

![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=74d9600)
|
Type number: 259.555 |
18.75 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=3c458ee)
|
Type number: 259.559 |
29.67 € | |

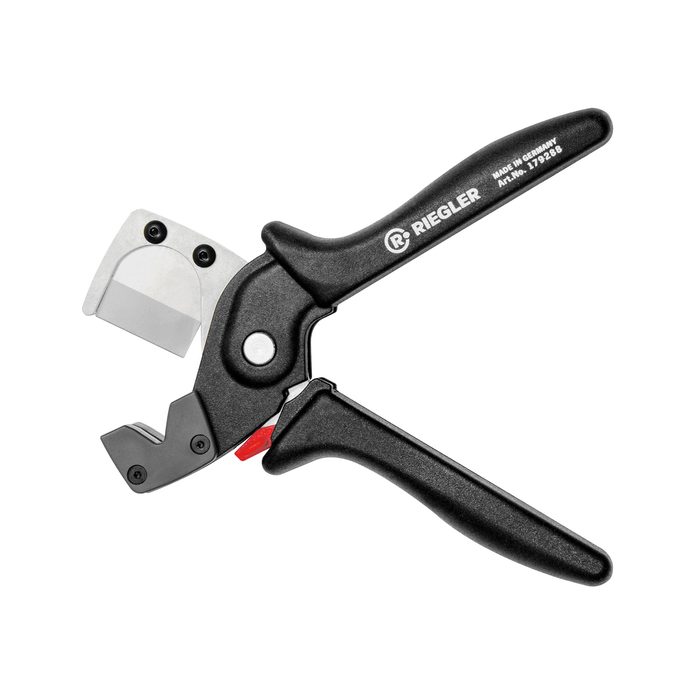

![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=70ea61c)
|
Typennummer: SAS420 |
49.80 € | |
