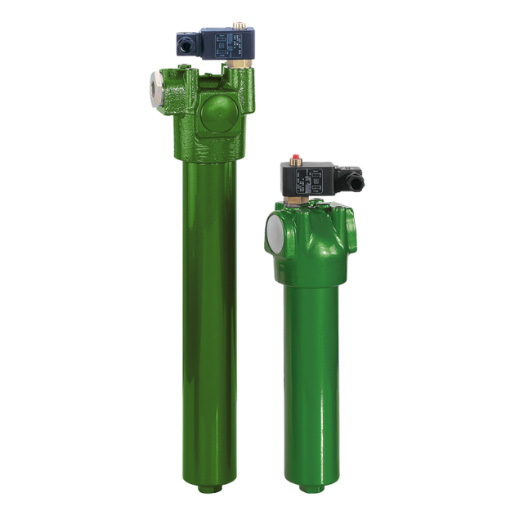

Filtration Group High pressure filter Pi 423025-012 FL

High-pressure filter Pi 423 DIN 2455
Nominal size 25 l/min,
flange version
including:
- Bypass
- Visual maintenance indicator

900.66 € 900.66 EUR 900.66 € VAT Included

923.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70382574

Category :

Filtration Group High Pressure Filter

Weight :

0.01 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 423025-012 FL / 70382574

Low space requirement due to compact design

Modular system for optimum filter selection

Bypass

Visual maintenance indicator

Flange connection

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Filter elements can be removed from the top

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle high-pressure filter Pi 42325-12 FL without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange ISO 6162-2
Seal material	NBR/PTFE/Cu
Bypass opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	mechanical
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Max. Operating pressure (bar)	315
Connection size	DN 38
Nominal size	250
Filter head material	GGG

FG-Datenblatt_Pi4230_NG160_400_de

Download
