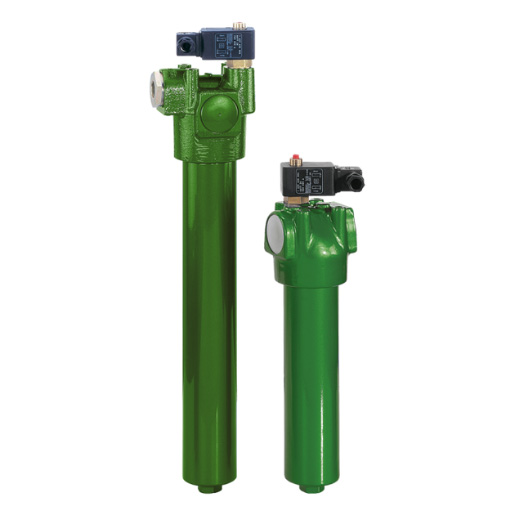

Filtration Group High pressure filter Pi 423025-013 FL

High-pressure filter Pi 423 DIN 2455
rated size 25 l/min,
flange version
including:
- Bypass
- Optical / electrical maintenance indicator

967.02 € 967.02 EUR 967.02 € VAT Included

991.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

70382575

Category :

Filtration Group High Pressure Filter

Weight :

0.01 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 423025-013 FL / 70382575

Low space requirement due to compact design

Modular system for optimum filter selection

Bypass

Optical / electrical maintenance indicator

Flange connection

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Filter elements can be removed from the top

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle high-pressure filter Pi 42325-13 FL without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange ISO 6162-2
Seal material	NBR/PTFE/Cu
Bypass opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	electrical / mechanical
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Max. Operating pressure (bar)	315
Connection size	DN 38
Nominal size	250
Filter head material	GGG
