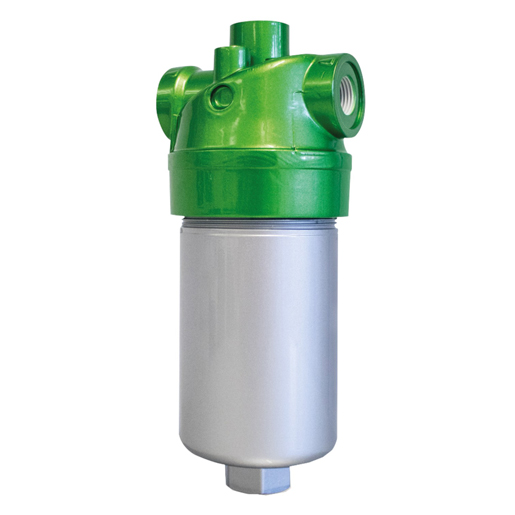

Filtration Group low-pressure filter PI 20411-012 / 72508132
Nominal size: 110 l/min
Nominal pressure: 250 bar
including:
- bypass
- visual indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Nominal size (l/min) | 110 |
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Max. Operating pressure (bar) | 250 |
| Operating temperature | -10°C bis +120°C |
| Seal material | NBR |
| Filter head material | GGG |
| Filter housing material | St |
| Bypass valve Opening pressure (bar) | 7 |
| Contamination indicator | ja |
| Type Contamination indicator | VA Differential pressure |
| Evaluation of pollution indicators | mechanical |
| Display pressure of contamination indicator (bar) | 5 |
| Contact type Contamination indicator | Closer / Opener |
