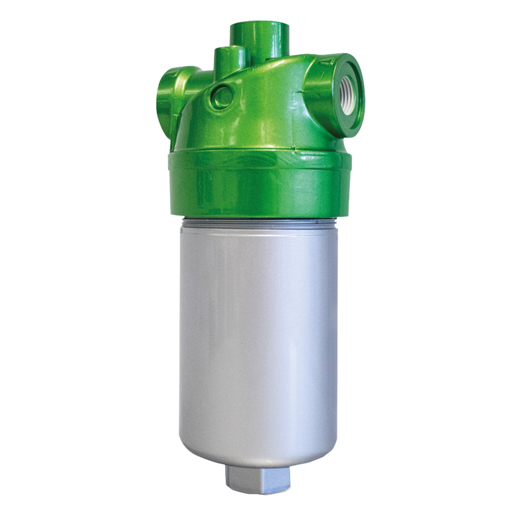

Filtration Group low-pressure filter PI 20405-011 / 72508416
Nominal size 50 l/min
Nominal pressure 250 bar
including:
- bypass
- with hole for indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Product no. :
72508416EAN :
4070792048142Category :
Filtration Group Low Pressure FilterWeight :
3.30 kg| Nominal size (l/min) | 50 |
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Max. Operating pressure (bar) | 250 |
| Operating temperature | -10°C bis +120°C |
| Seal material | NBR |
| Filter head material | GGG |
| Filter housing material | St |
| Bypass valve Opening pressure (bar) | 7 |
