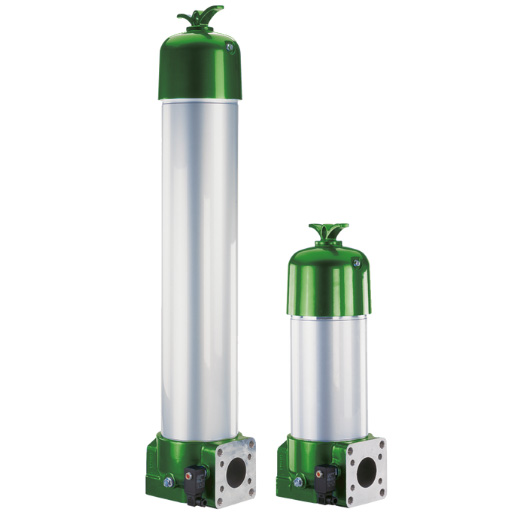

Filtration Group Low pressure filter Pi 230200/21-058 / 76321152

https://www.filcom-technik.de/web/image/product.template/233124/image_1920?unique=445d843

Low-pressure filter Pi 23 DIN 2455
Nominal size 12 l/min
Includes:
- Bypass
- Electrical maintenance indicator
- Side inlet

3,222.09 € 3222.09 EUR 3,222.09 € VAT Included

3,302.00 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

76321152

Category :

Low Pressure Filters

Weight :

38.00 kg

Filtration Group (formerly MAHLE) Low pressure filter Pi 232/21-58 / 76321152

  • Intended for installation in pipes
  • Optimum filter selection thanks to modular system
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Electrical maintenance indicator
  • Side entrance
  • Available with high-efficiency PS filter elements
  • High dirt holding capacity and differential pressure stability of the elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

    • Important note:
    We supply the Mahle Pi 232/21-58 low-pressure filter without the filter elements.
    For this nominal size, 2 filter elements are required per housing.

    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange
    Connection size SAE 3, 3000 psi
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 3,5
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 40
    Nominal size 1200
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBAR
    Filter housing material ALU
    Filter head material GAL
