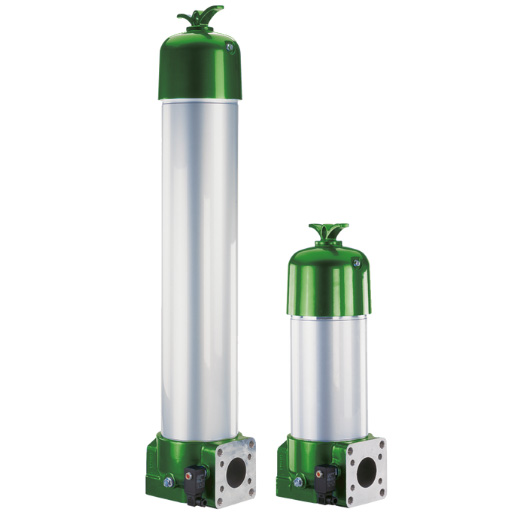

Filtration Group Low pressure filter Pi 230100/21-069 / 76321210
Low-pressure filter Pi 23 DIN 2455
Nominal size 75 l/min
Includes:
- Electrical maintenance indicator
- Side inlet
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Low pressure filter Pi 230100/21-069 / 76321210
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded
Important note:
We supply the Mahle low-pressure filter Pi 231/21-69 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Flange |
| Connection size | SAE 3, 3000 psi |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -10°C bis +120°C |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 40 |
| Nominal size | 750 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBAR |
| Filter housing material | ALU |
| Filter head material | GAL |
