Filtration Group Low pressure filter PI 1975

https://www.filcom-technik.de/web/image/product.template/55575/image_1920?unique=e7a56e7

Low-pressure filter Pi 1975
Nominal pressure 6 bar
Nominal volume 5 l/min
- without maintenance indicator

973.36 € 973.36 EUR 973.36 € VAT Included

817.95 € VAT Included

(973.36 € / pcs)

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77664956

Category :

Filtration Group Low Pressure Filter

Weight :

7.50 kg

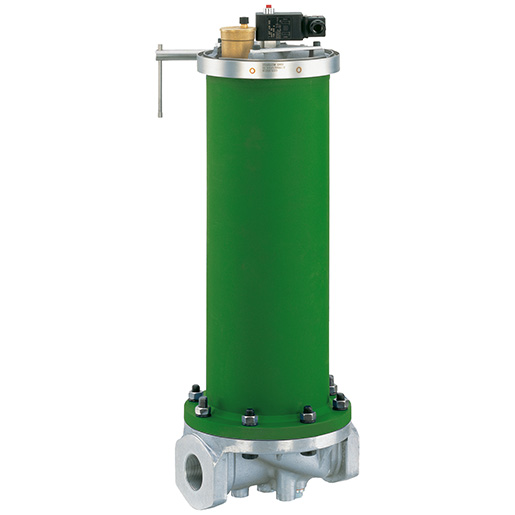

Filtration Group (formerly MAHLE) Low pressure filter Pi 1975 / 77664956

  • Optimum filter selection thanks to modular system
  • Intended for installation in pipes
  • Compact design, therefore less space required
  • Minimal pressure loss due to streamlined design of the components
  • High dirt holding capacity and differential pressure stability of the elements

    • It must be ensured that the maximum differential pressure of the filter element is not exceeded

    Important note:
    We supply the Filtration Group (formerly MAHLE) Pi 1975 suction filter without the filter element.
    For suitable filter elements, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1/4
    Operating temperature -10°C bis +120°C
    Max. Operating pressure (bar) 6
    Nominal size 50
    Seal material NBR/CU
    Filter housing material St
