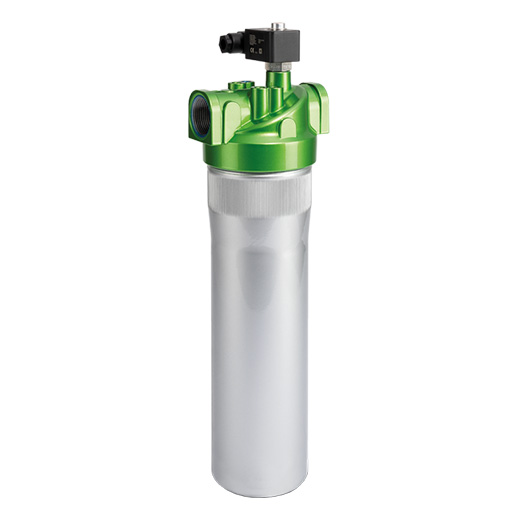

Filtration Group PI 2011-060 Low pressure filter
Low-pressure filter Pi 2,
rated size 11 l/min,
- without bypass, vacuum pressure gauge and vacuum switch
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low pressure filter Pi 211-6 / 7825114
Intended for installation in pipes
Modular system for optimum filter selection
Low space requirement due to compact design
Minimal pressure loss due to streamlined design of the components
Version with threaded connections
Available with Mic (for suction filters) or high-efficiency PS filter elements (for low-pressure and suction filters)
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High differential pressure stability and dirt holding capacity of the elements
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded
This low-pressure filter can also be used as a Pi 2 suction filter, but with a nominal size of 22 l/min.
Matching filter elements: MA-7768333, MA-7768465 and mic-element MA-776893.
Important note:
We supply the Mahle Pi 211-6 low-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Operating temperature | -30°C bis +120°C |
| Max. Operating pressure (bar) | 63 |
| Nominal size | 110 |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
