Filtration Group Low pressure filter PI 2205-056

Low-pressure filter Pi 225-56
Nominal size 63 l/min
Includes:
- Bypass

82.67 € 82.67 EUR 82.67 € VAT Included

82.70 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77665789

Category :

Filtration Group Low Pressure Filter

Weight :

0.30 kg

Description
Specifications

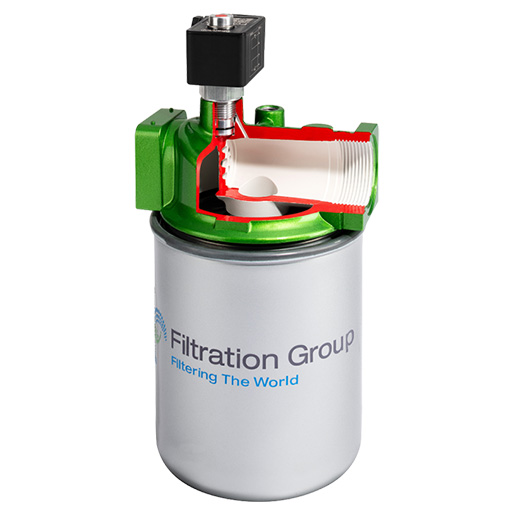

Filtration Group (formerly MAHLE) Low pressure filter Pi 225-56 / 77665789

Intended for installation in pipes

Modular system for optimum filter selection

Flow-optimized design of the components, resulting in minimal pressure loss

Compact design means less space required

Bypass

Version with threaded connections

Available with high-efficiency Mic or Sm-x filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Filtration Group (formerly MAHLE) low-pressure filter Pi 225-56 without the filter element.
For suitable filter elements, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 3/4
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Max. Operating pressure (bar)	10
Nominal size	63
Seal material	NBR
Filter head material	ALU
