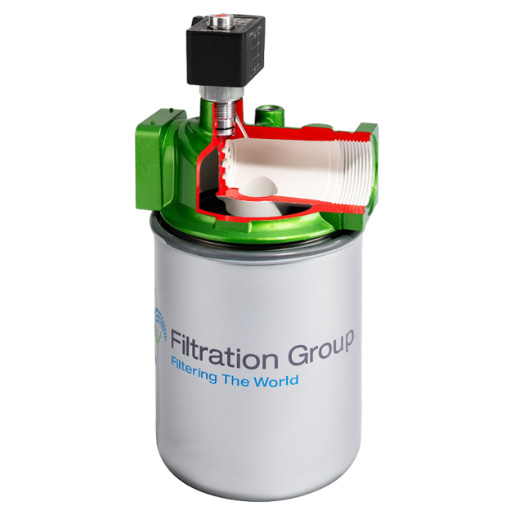

Filtration Group Low pressure filter PI 2214-124 incl. PX37-13-2-Mic10 (former HC 34)
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Connection type | Thread ISO 228 |
| Connection size | G 11/4 |
| Display pressure of contamination indicator (bar) | 1,2 |
| Evaluation of pollution indicators | mechanical |
| Operating temperature | -10°C bis +120°C |
| Bypass valve Opening pressure (bar) | 1,5 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 16 |
| Nominal size | 160 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | ALU |
